Electric Main Retract ER-008
> Model Weight: until 8kg
> Struts diameter: 9mm (6mm adapter in option)
> Angle: 90 degrees
> Rotation direction: Inside (jack side)
> Mounting: Low

More info

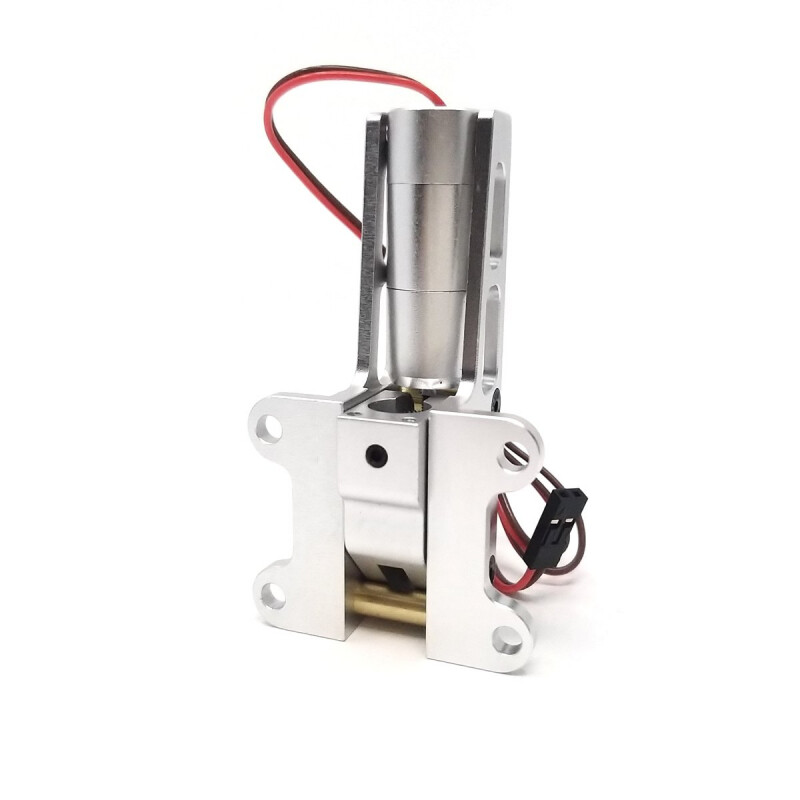

JP Hobby ER-008 electric main retract for oleo struts for planes up to 8kg (Mounting position low and jack side rotation)

Electric 100% CNC aluminium main retract for planes up to 8kg for JP Hobby oleo struts ER-008 or equivalent 9mm drilled with a diameter of 6mm (with adapter in option). 90% inside rotation angle (jack side) and mounting position low.

Important: A JP Hobby sequencer is required to control the retract. JP Hobby sequencers allow to control retracts and gear doors servos.

Specifications

• Material: Aluminium
• Struts diameter for mouting on retract : 9mm (or strut drilled with a 6mm with adapter in option)
• For plane: up to 8kg

Technical Specifications

• Retract weight: 68.5g
• Retract sizes: 24mm x 36.2mm x 19mm
• Retract mounting plate sizes: 36.2mm x 46.2mm
• Length with motor: 75.4mm
• Working Voltage: 5-6V
• Speed: 5.2 sec (5v) - 4.3 sec (6v)

Contents

• 1x Main Retract JP Hobby ER-008 9mm unit (8kg/Low/Inside)

Requires

• JP Hobby sequencer (Please pay attention that only JP Hobby sequencers are qualify to work in accordance of the JP Hobby products).
