ER-280 F-16 1:5 Electric Retractable Landing Gear

• Model weight: up to 30 kg
• Strut diameter: N/A
• Angle: 3× 90 degrees
• Rotation direction: 2× inward (toward the cylinder side) + 1× outward (toward the opposite cylinder side)
• Mounting: Low (below the mounting surface)
• Wheels: 2× 136 mm (with brakes) + 1× 75 mm
  (versions with 115 mm and 70 mm also available)

Data sheet

High-quality scale landing gear system made of CNC-machined aluminum – specifically designed for the 1:5 scale F-16 or comparable models with a takeoff weight of up to 30 kg.

✅ Highlights

• Complete set including brakes, sequencer, and LED projectors
• Suitable for models up to 30 kg
• 3 electric retractable landing gears (2× main, 1× nose)
• Mechanically sprung scale landing gear
• High-quality construction from CNC-machined aluminum
• Ball-bearing wheels (136 mm & 75 mm)
• Integrated JP Hobby V1 sequencer for landing gear & flaps
• Also available with 115 mm and 70 mm wheels (upon request)

🔍 Technical Specifications

• Model weight: up to 30 kg
• Operating voltage: 7.4–8.4 V (2S LiPo)
• Torque: 15 kg/cm
• Axle diameter: 8 mm (main), 6 mm (front)
• Wheels:
  • Main: 136 mm (optional: 115 mm)
  • Nose: 75 mm (optional: 70 mm)
• Nose servo size: 36 × 15 mm
• Weight (total): approx. 3200 g
• Material: Aluminum, rubber, electronics
• Mounting type: Low (below the mounting surface)

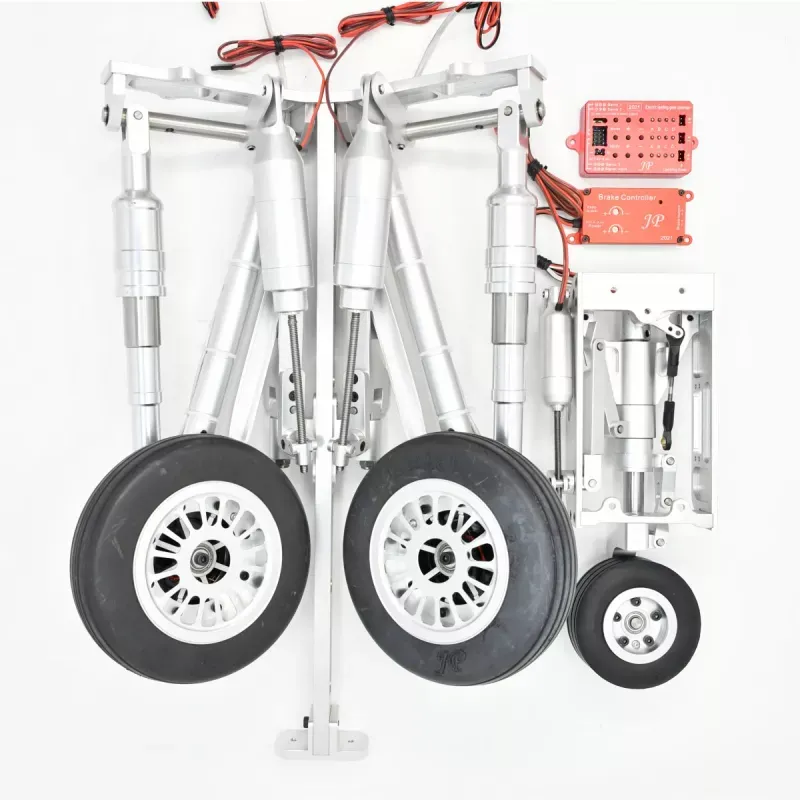

📦 Package contents

• 2× Main landing gear legs with 136 mm wheels & braking system
• 1× nose landing gear leg with 75 mm wheel & linkage
• 2× ER-280 electric motors (main landing gear)
• 1× ER-150 electric motor (nose landing gear)
• 1× ALF magnetic brake controller
• 1× JP Hobby sequencer (Version 1)
• 2× LED projectors

⚠️ Required (not included)

• 2S LiPo battery (7.4–8.4 V)
• Servo for nose wheel steering

ℹ️ Note

This landing gear is a high-quality retrofit system for large models. Adjustments to the mounting bracket or hole spacing may be necessary depending on the aircraft model. Please check the dimensions before installation.
