ER-200 Electric Retractable
Landing Gear (for Baja Hobby or JMT L-39 3.3 m)

• Maximum model weight: up to 30 kg
• Linkage diameter: 27 mm (main landing gear) / 22 mm (nose landing gear)
• Mounting diameter: 15 mm
• Installation angle: 3 × 90°
• Rotation direction: 3 × outward (opposite side of the jack)
• Mounting height: 3 × low
• Wheels: 2 × 115 mm (4.5") with brakes + 1 × 75 mm

High-quality CNC-machined aluminum retractable landing gear with mechanical suspension, specifically designed for model aircraft up to 30 kg. The set includes 3 retractable landing gears, brakes, wheels, and a multifunction sequencer for landing gear and doors, as well as an ALF electronic magnetic braking system.

Highlights:

• Scale-accurate, robust aluminum landing gear
• Mechanically sprung main and nose landing gear
• Ball-bearing wheels for low-friction rotation
• Brake system for the main landing gear wheels
• Compatible with 2S LiPo batteries (7.4–8.4 V)
• Includes multifunction sequencer V1/V2 for landing gear and doors
• For models up to 30 kg

Technical Specifications:

• Max. model weight: 30 kg
• Total weight: 2,343 g (complete set)
• Linkage diameter: 27 mm (main) / 22 mm (nose)
• Wheel diameter: 115 mm (main) / 75 mm (nose)
• Axle diameter: 8 mm (main) / 6 mm (nose)
• Steering angle: 90°
• Rotation direction: outward (opposite side of the jack)
• Chassis operating voltage: 7.4–8.4 V
• Operating voltage brakes: 7.2–30 V
• Retract torque: 15 kg/cm
• Mounting: low

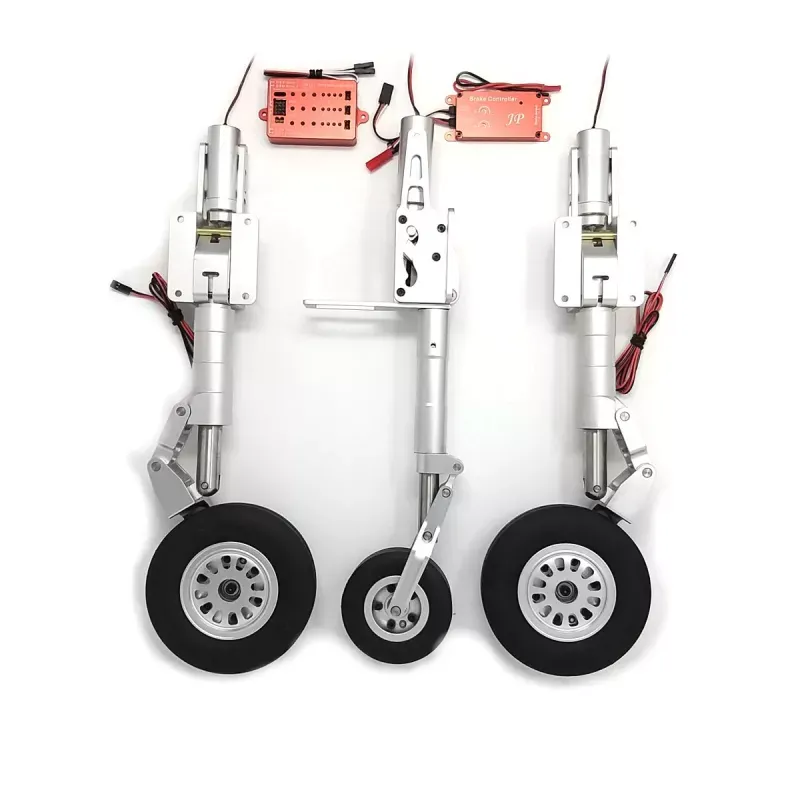

Included in delivery:

• 2 × metal main landing gear legs with 115 mm wheels + brakes
• 1 × metal nose landing gear leg with 75 mm wheel + servo mount
• 3 × JP Hobby ER-200 electric retracts (30 kg / Low / Outside)
• 1 × JP Hobby multifunction sequencer for landing gear and doors
• 1 × JP Hobby ALF electric magnetic braking system

Required:

• 2-cell LiPo battery
• Servo for nose wheel control

Note:
JP Hobby landing gear uses standardized retraction mechanisms designed for the aircraft’s weight and size. Mounting brackets and hole spacing may vary by model. Adjustment of the mounting plate may be necessary.
