JP Hobby ER-150 Tricycle Full set with Brakes and Controller for Norbert Rauch Boeing 757-200 1/16 2.4m model

CNC Machined aluminium articulated and mechanical suspended « scale » electric landing complete gear set including 50mm front wheel and 63mm main wheels and 3 retracts with a JP Hobby multifunction landing gears and doors sequencer V1/V2 and an Electrical Magnetic Brake Controller. Main gear and double nose gear.

Specifications

• Materials: Aluminium
• Suspension: mechanical
• Wheels: ball bearings mounted
• For planes up to 20kg
• Servo plate with control for threaded rod and ball joints

Technical Specifications

• Struts diameter: 14mm (Main) - 15mm (Front)
• Mounting Struts diameter: 15mm
• Main gear wheels diameter: 63mm
• Nose gear wheels diameter: 50mm
• Wheels axle diameter: 5mm
• Weight: 1775gr (for the complete set including the 3 struts, 3 retracts, wheels and the controller)
• Dimensions: for detailed dimensions, please refer to the pictures
• Working voltage: 7.4-8.4V (2S LiPo)
• Brakes working voltage: 7.2-30V

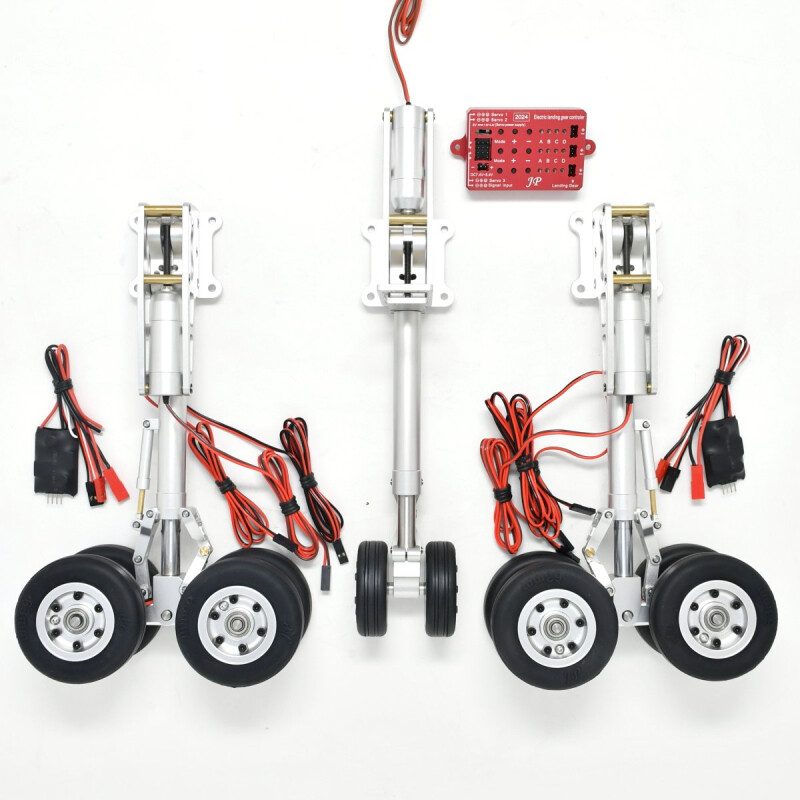

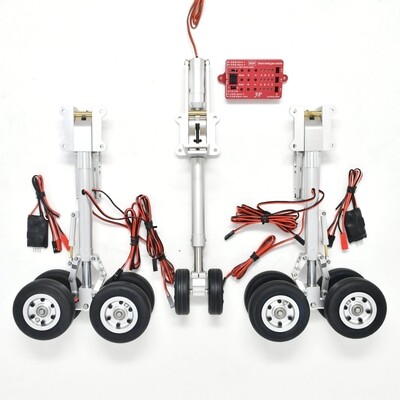

Content

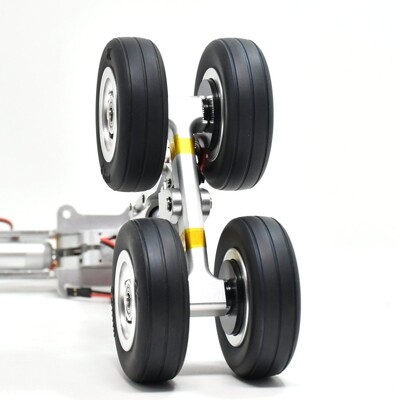

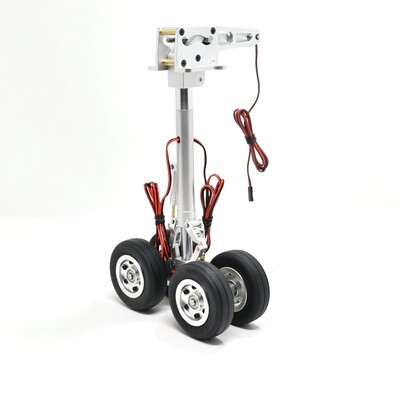

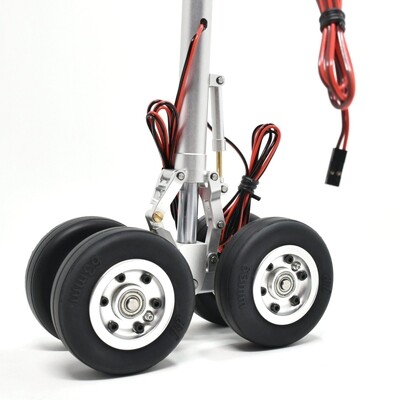

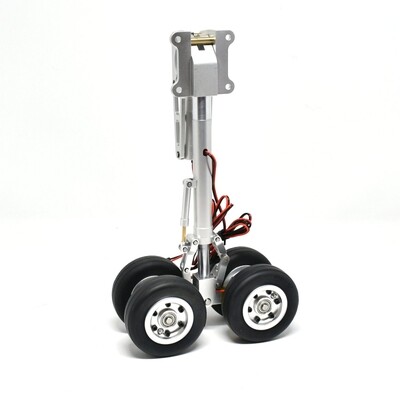

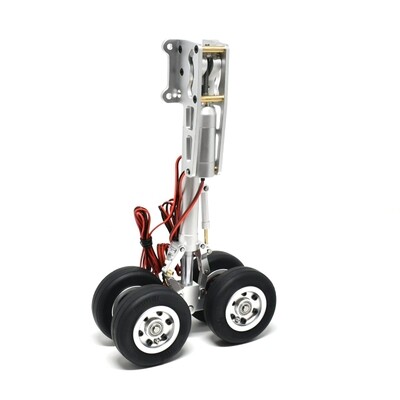

• 2x Scale metal struts for main landing gear equiped with 63mm wheels & brakes system

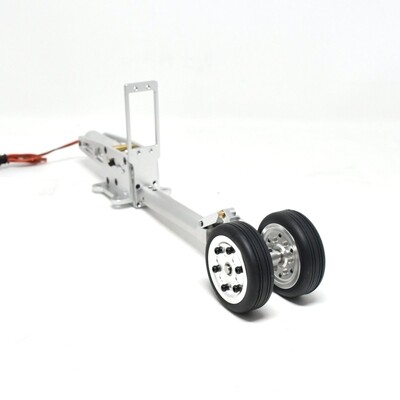

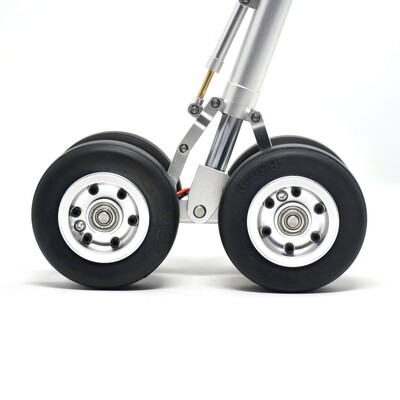

• 1x Scale metal strut for nose gear equiped with 50mm wheels and plate
• 2x Electric Retracts JP Hobby ER-150 15mm 90° (20kg/Low/Inside)

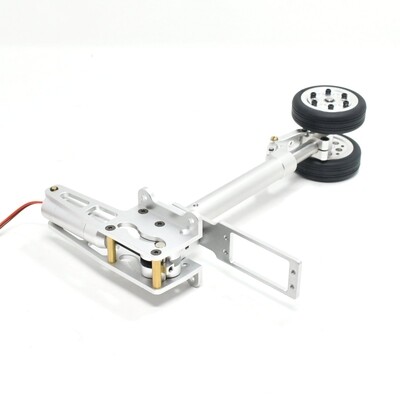

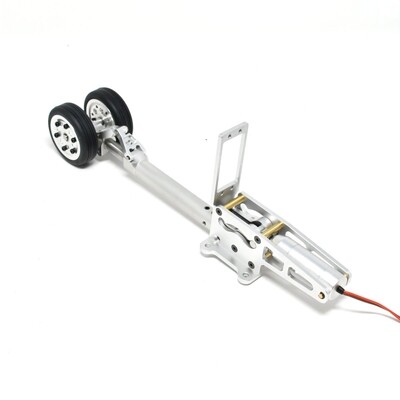

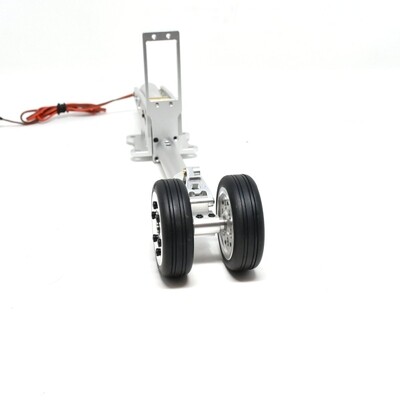

• 1x Nose Electric Retract JP Hobby ER-150 15mm 90° (20kg/Low/Outside)

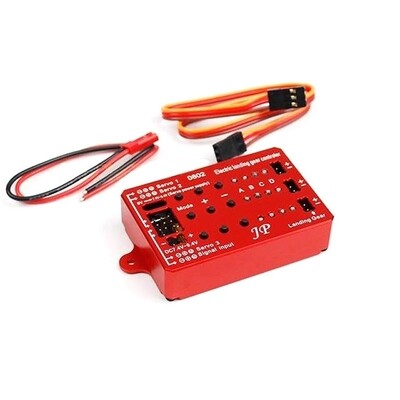

• 1x JP Hobby multifunction landing gears and doors sequencer

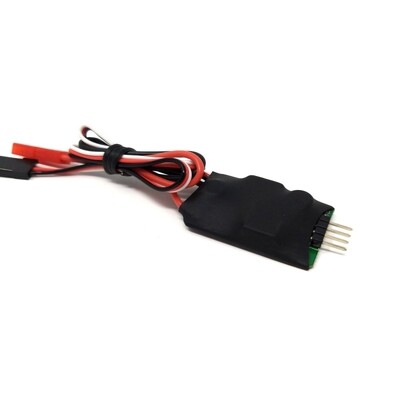

• 1x JP Hobby Electrical Magnetic Brake Controller

Requires

• 2 cells battery
• Nose direction servo. (Servo size for steering double nose wheel: 40x20x37mm size with 3.8 to 8kg torque)

Note: JP Hobby landing gear, like most landing gear that are not delivered directly with the models, uses standard retracts, designed for the size and weight of the aircraft, but whose size brackets and the spacing of the holes in the brackets may vary. JP Hobby manufactures a number of retracts in different sizes but cannot offer a specific model for every make and model on the market. An adaptation of the mounting plate may be required.
