JP Hobby ER-150 Tricycle Full set with Brakes and Controller for GJC Global Jet Club Hawk 2.20m

CNC Machined aluminium articulated and mechanical suspended « scale » electric landing complete gear set including 1x 63 front wheel and 2x 86mm wheels with brakes system and 3 retracts with a JP Hobby Multifunction Landing Gears and Doors Sequencer V1/V2 and a JP Hobby Electrical Magnetic Brake Controller. Main gear and single nose gear. For planes up to 20kg.

Specifications

• Materials: Aluminium
• Suspension: mechanical
• Wheels: ball bearings mounted
• For planes up to 20kg
• Linkage for nose gear

Technical Specifications

• Struts diameter: 19mm/16mm
• Mounting Struts diameter: 15mm
• Main gear wheels diameter: 86mm
• Nose gear wheel diameter: 63mm
• Wheels axle diameter: 8mm (Main) - 6mm (Nose)
• Weight: 1420gr (for the complete set including the 3 struts, 3 retracts, wheels and the controllers)
• Dimensions: for detailed dimensions, please refer to the pictures
• Working voltage: 7.4-8.4V (2S LiPo)
• Brakes working voltage: 7.2-30V

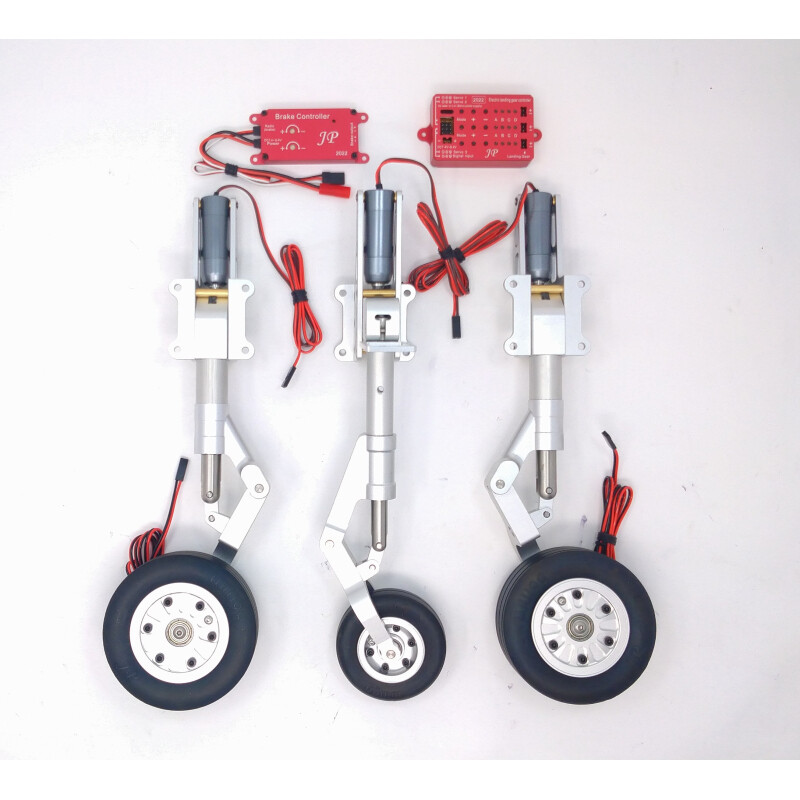

Content

• 2x Scale metal struts for main landing gear equiped with 86mm wheels & brakes system
• 1x Scale metal strut for nose gear equiped with 63mm wheel and linkage
• 3x Electric Retracts JP Hobby ER-150 15mm 90° (20kg/Low/Outside)
• 1x JP Hobby Multifunction Landing Gears and Doors Sequencer V1/V2 for ER-05/08/10/120/150/200
• 1x JP Hobby Electrical Magnetic Brake Controller system ALF

Requires

• 2 cells battery
• Nose direction servo. (Servo size for steering double nose wheel: 40x20x37mm size with 3.8 to 8kg torque)

Note: JP Hobby landing gear, like most landing gear that are not delivered directly with the models, uses standard retracts, designed for the size and weight of the aircraft, but whose size brackets and the spacing of the holes in the brackets may vary. JP Hobby manufactures a number of retracts in different sizes but cannot offer a specific model for every make and model on the market. An adaptation of the mounting plate may be required.

Note: It is possible to order this product without the electromagnetic brake system. Please contact us.
