Electric Retract ER-120 (E-Flite/FMS Carbon-Z T-28 1.98m)

> Model Weight: until 12kg

> Struts diameter: 12mm (Main) - 13mm (Nose)

> Angle: 3x 90 degrees

> Rotation direction: 3x Inside (jack side)

> Mounting: 3x Low

> Wheels: 2x 75mm (with brakes) + 1x 75mm

More info

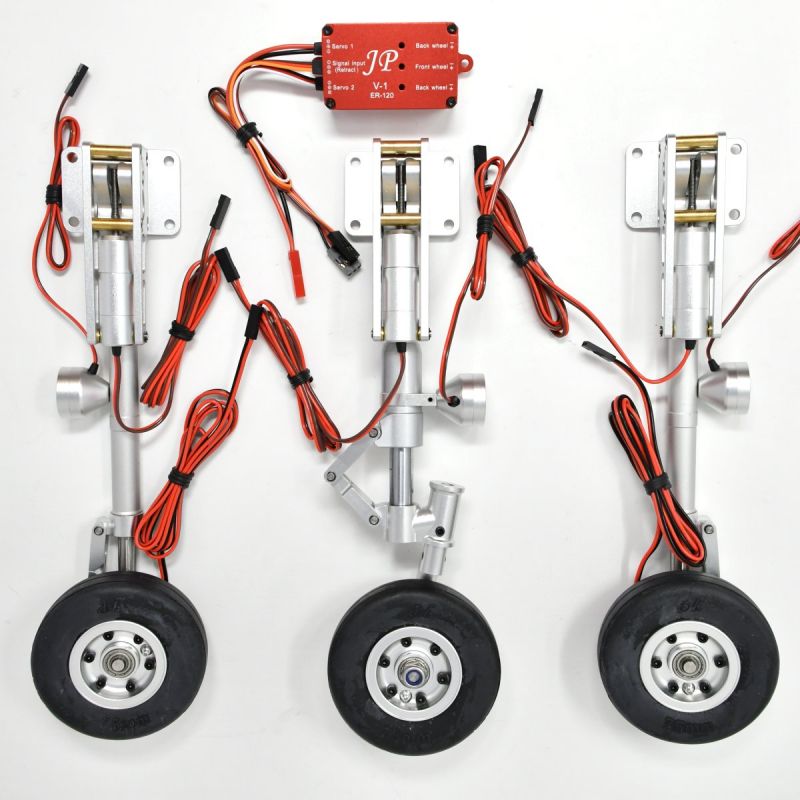

JP Hobby ER-120 Tricycle Full Set with Brakes and Controller for E-Flite / FMS Carbon-Z T-28 1.98m model

CNC Machined aluminium articulated and mechanical suspended « scale » electric landing complete gear set including 75mm wheels with brakes system and 3 retracts with a JP Hobby V1 version controller retract box which includes an electrical magnetic brake controller. Main gear and single nose gear. For planes up to 12kg.

Nota: Connecting the 3x headlight sockets to the input pins of the controller (if no ignition, reverse the polarity of the sockets), and the red socket of the controller to a 2S battery and black socket (JR/ Futaba type) on receiver track of the retracting gear with a Y cord (gear extended - headlights on / gear retracted - headlights off)

Specifications

• Materials: Aluminium
• Suspension: mechanical
• Wheels: ball bearings mounted
• For planes up to 12kg
• Linkage for Outward/Return cable control (steel cable not included)

Technical Specifications

• Struts diameter: 12mm (Main) - 13mm (Nose)
• Main gear wheels diameter: 75mm
• Nose gear wheel diameter: 75mm
• Wheels axle diameter: 5mm
• Weight: 921g (for the complete set including the 3 struts, 3 retracts, wheels and the controller)
• Dimensions: for detailed dimensions, please refer to the pictures
• Working voltage: 5-8.4V (2S LiPo)
• Brakes working voltage: 7.2-30V

Content

• 2x Scale metal struts for main landing gear equiped with 75mm wheels & brakes system
• 1x Scale metal strut for nose gear equiped with 75mm wheel and Linkage
• 3x Electric Retracts JP Hobby ER-120 12mm (12kg/Low/Inside)
• 3x LED Landing Lights
• 1x Lights Controller
• 1x JP Hobby ER-120 V1 Version All Integrated controller retract box (doors opened when the gear is down)

Requires

• 2 cells battery
