Electric Retract ER-120 (Tomjets Interceptor120 1.76m)

> Model Weight: until 12kg

> Struts diameter: 12mm

> Angle: 3x 90 degrees

> Rotation direction: 2x Inside (jack side) + 1x Outside (opposite jack side)

> Mounting: 3x Low

> Wheels: 2x 65mm (with brakes) + 1x 65mm

More info

JP Hobby ER-120 Tricycle full set with Brakes and Controller for Tomjets Interceptor120 1.76m

CNC Machined aluminium articulated and mechanical suspended « scale » electric landing complete gear set including 65 and 65mm wheels with brakes system and 3 retracts with a JP Hobby V1 version controller retract box which includes and electrical magnetic brake controller. Main gear and single nose gear. For planes up to 12kg.

Specifications

• Materials: Aluminium
• Suspension: mechanical
• Wheels: ball bearings mounted
• For planes up to 12kg
• Plate with control for threaded rod and ball joints

Technical Specifications

• Struts diameter: 12mm
• Main gear wheels diameter: 65mm
• Nose gear wheel diameter: 65mm
• Wheels axle diameter: 5mm
• Weight: 750g (for the complete set including the 3 struts, 3 retracts, wheels and the controller)
• Dimensions: for detailed dimensions, please refer to the pictures
• Working voltage: 5-8.4V (2S LiPo)
• Brakes working voltage: 7.2-30V

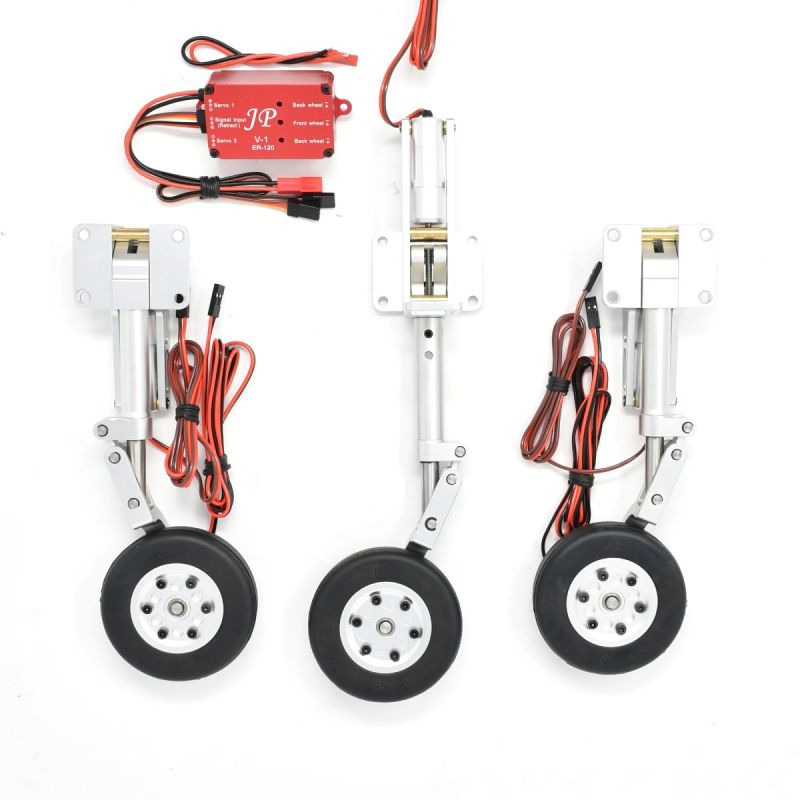

Content

• 2x Scale metal struts for main landing gear equiped with 65mm wheels & brakes system
• 1x Scale metal strut for nose gear equiped with 65mm wheel and plate
• 2x Electric Retracts JP Hobby ER-120 12mm (12kg/Low/Inside)
• 1x Electric Nose Retract JP Hobby ER-120 12mm (12kg/Low/Outside)
• 1x JP Hobby ER-120 V1 version All Integrated controller retract box (doors opened when the gear is down)

Requires

• 2 cells battery
• Nose direction servo (option available on this page)
