Full set JP Hobby ER-008 tricycle with Brakes and controller for HSD Jets Super Viper 1.5m

CNC Machined aluminium articulated and mecanical suspended « scale » electric landing complete gear set including 1x45mm front wheel and 2x55mm wheels with brakes system and 3 retracts with a JP Hobby V1 version All integrated controller retract box which includes an electrical magnetic brake controller. Main gear and single nose gear. For planes up to 8kg.

Specifications

• Materials: Aluminium
• Suspension: mechanical
• Wheels: ball bearings mounted
• For planes up to 8kg
• Servo Plate with control for threaded rod and ball joints

Technical Specifications

• Struts diameter: 12mm
• Mounting Struts diameter: 9mm
• Main Gears wheels axle diameter: 5mm
• Nose Gear wheel axle diameter: 4mm
• Main gears wheels diameter: 55mm
• Nose gear wheel diameter: 45mm
• Weight: 622.4g (for the complete set including the 3 struts, 3 retracts, wheels and the controller)
• Dimensions: for detailed dimensions, please refer to the pictures
• Retracts working voltage: 5-8.4V (2S LiPo)
• Brakes working voltage: 7.2-30V

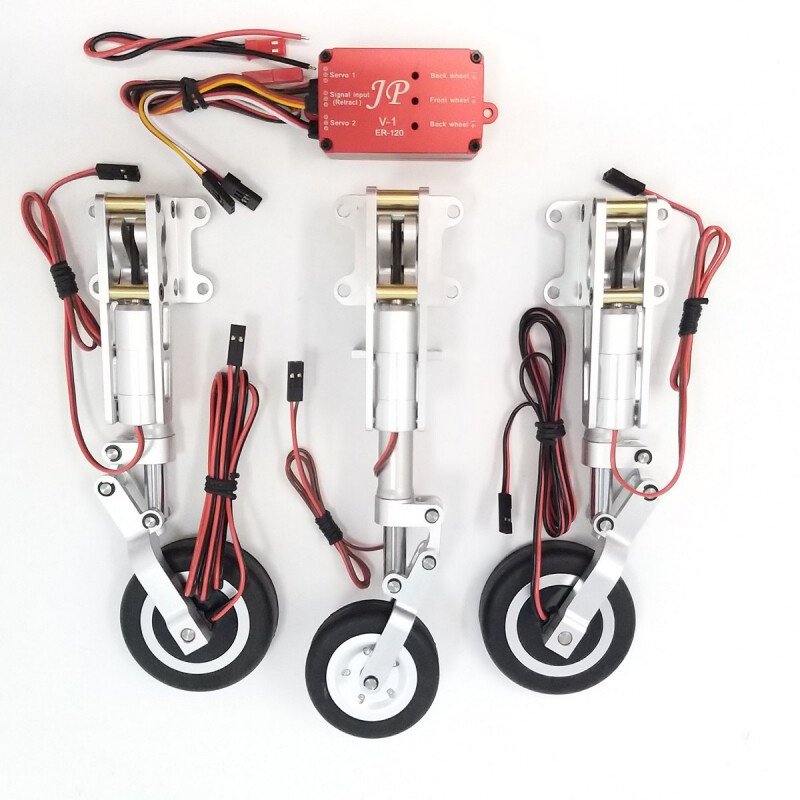

Content

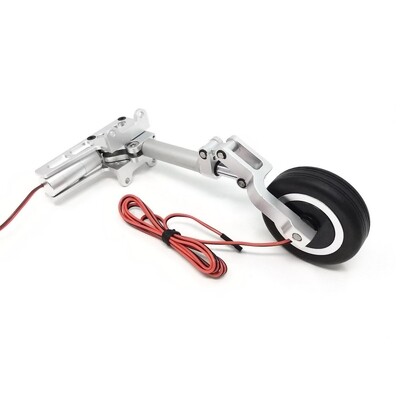

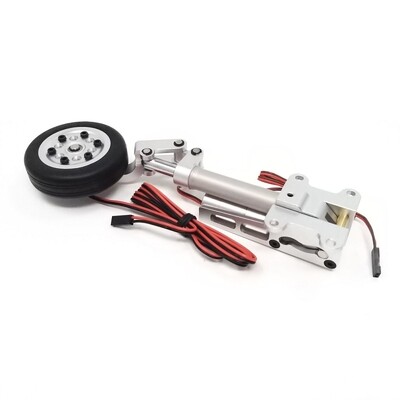

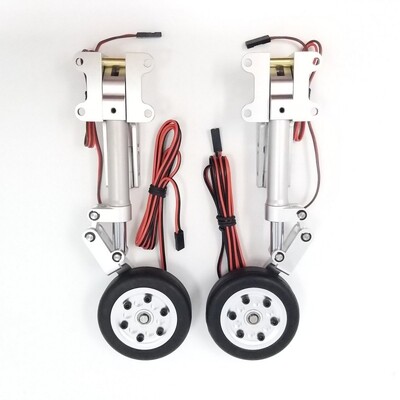

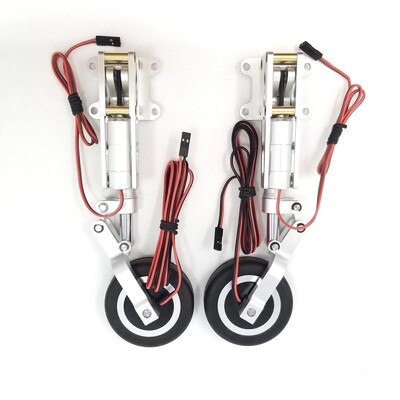

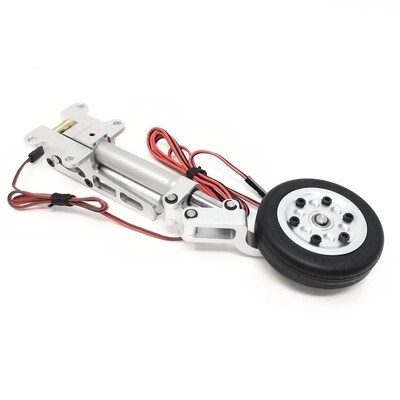

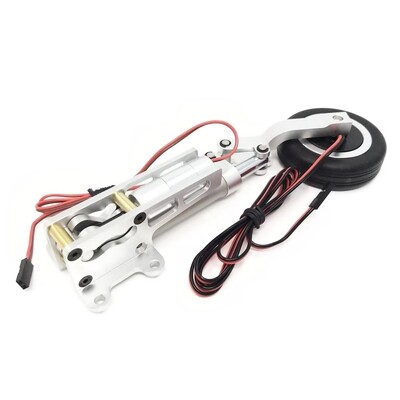

• 2x Scale metal struts for main landing gear equiped with 55mm wheels & brakes system

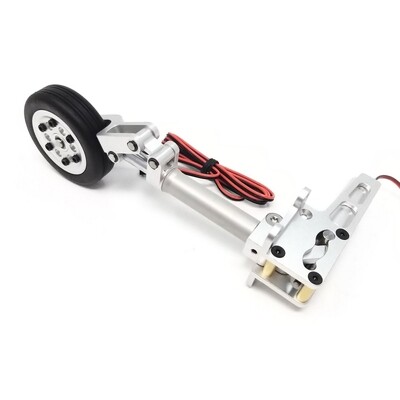

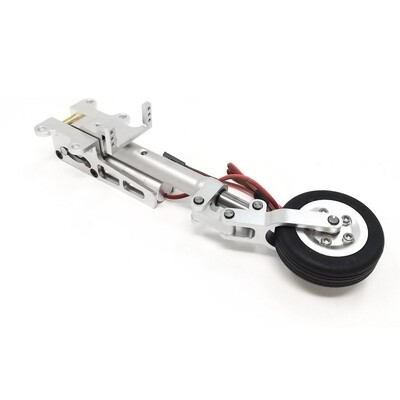

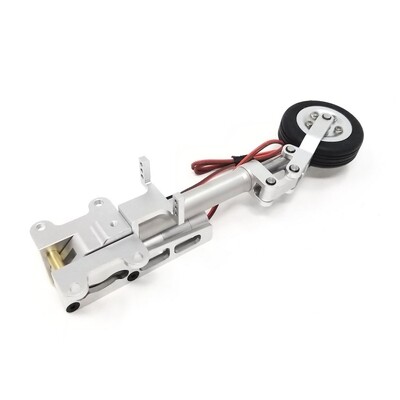

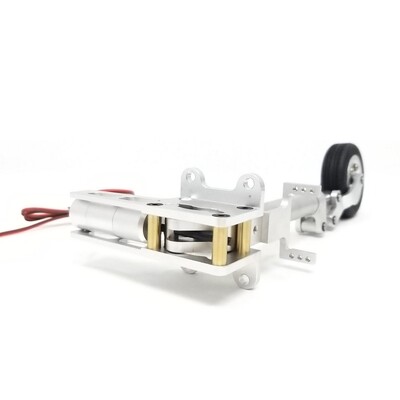

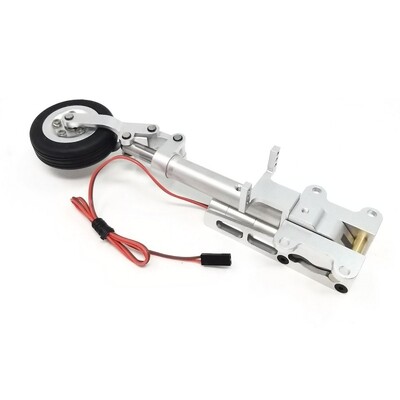

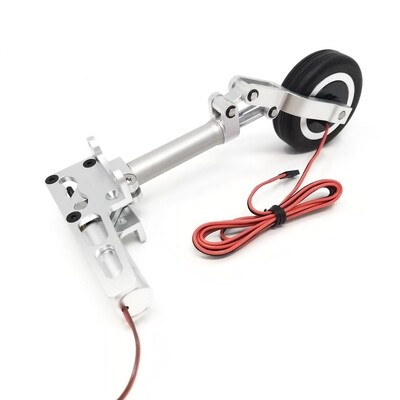

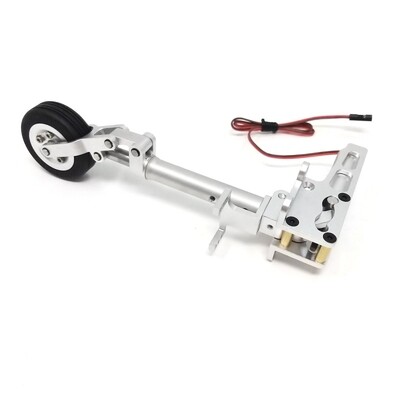

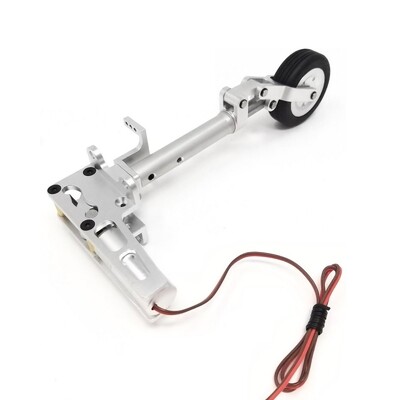

• 1x Scale metal strut for nose gear equiped with 45mm wheel and Plate
• 3x Electric Retracts JP Hobby ER-008 9mm (8kg/Low/Inside)
• 1x JP Hobby ER-120 V1 version All Integrated controller retract box (doors opened when the gear is down)

Requires

• 2 cells battery
• Nose direction servo
