Electric Retract ER-008 (AF Model / Aerofoam T-45 1.5m)
> Model Weight: until 9kg
> Main Struts diameter: 14mm
> Nose Struts diameter: 13mm
> Angle: 3x 90 degrees
> Main Gear Rotation direction: 2x Inside (jack side) and rotation struts 30°
> Nose gear Rotation direction: 1x Inside (jack side)
> Mounting: 3x Low
> Wheels: 2x 75mm (with brakes) + 2x 50mm

More info

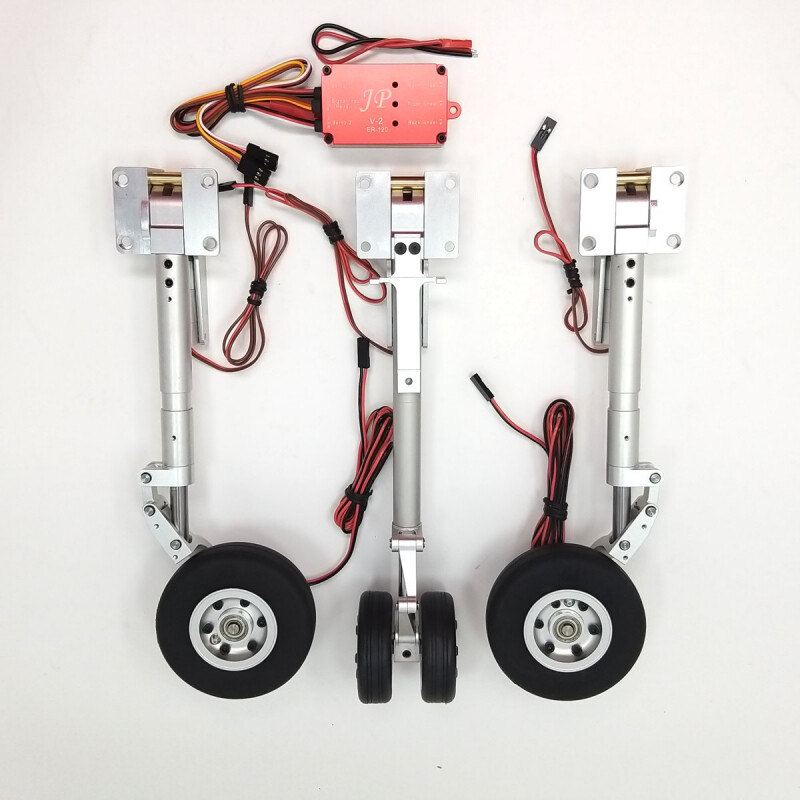

JP Hobby ER-008 Tricycle Full Set with Brakes and controller for AF Model / Aerofoam T-45 1.5m

CNC Machined aluminium articulated and mechanical suspended « scale » electric landing complete gear set including 2x50mm front wheels and 2x75mm wheels with brakes system and 3 retracts with a JP Hobby version 2 controller retract box which includes an electrical magnetic brake controller. Main gear and single nose gear. For planes up to 9kg.

Specifications

• Materials: Aluminium
• Suspension: mechanical
• Wheels: ball bearings mounted
• For planes up to 9kg
• Servo Plate with control for threaded rod and ball joints

Technical Specifications

• Main gear Struts diameter: 14mm
• Front gear Strut diameter: 13mm
• Main gear wheels diameter: 75mm
• Nose gear wheel diameter: 50mm
• Wheels axle diameter: 5mm
• Weight: 823g (for the complete set including the 3 struts, 3 retracts, wheels and the controller)
• Dimensions: for detailed dimensions, please refer to the pictures
• Working voltage: 5-8.4V (2S LiPo)
• Brakes working voltage: 7.2-30V

Content

• 2x Scale metal struts for main landing gear equiped with 75mm wheels & brakes system
• 1x Scale metal strut for nose gear equiped with 2x50mm wheels and plate
• 2x Main Electric Retracts JP Hobby ER-008 (struts rotation 30°) 9mm (9kg/Low/Inside)
• 1x Nose Electric Retract JP Hobby ER-008 6mm (9kg/Low/Inside)
• 1x JP Hobby ER-120 V2 version All Integrated Controller Retract Box (doors closed when the gear is down)

Requires

• 2 cells battery
• Nose direction servo (option available on this page)
