Electric Retract ER-005 V2 (Sebart Mini Avanti S, L-39, MB-339, Hawk)
More resistant V2 version
> Model Weight: until 6kg
> Struts diameter: 10mm - Pin Diameter Size: 5mm
> Angle: 3x 90 degrees
> Rotation direction: 3x Inside (jack side)
> Mounting: 3x Low (above of support)
> Wheels: 2x 50mm (with brakes) + 1x 40mm (45mm on demand

More info

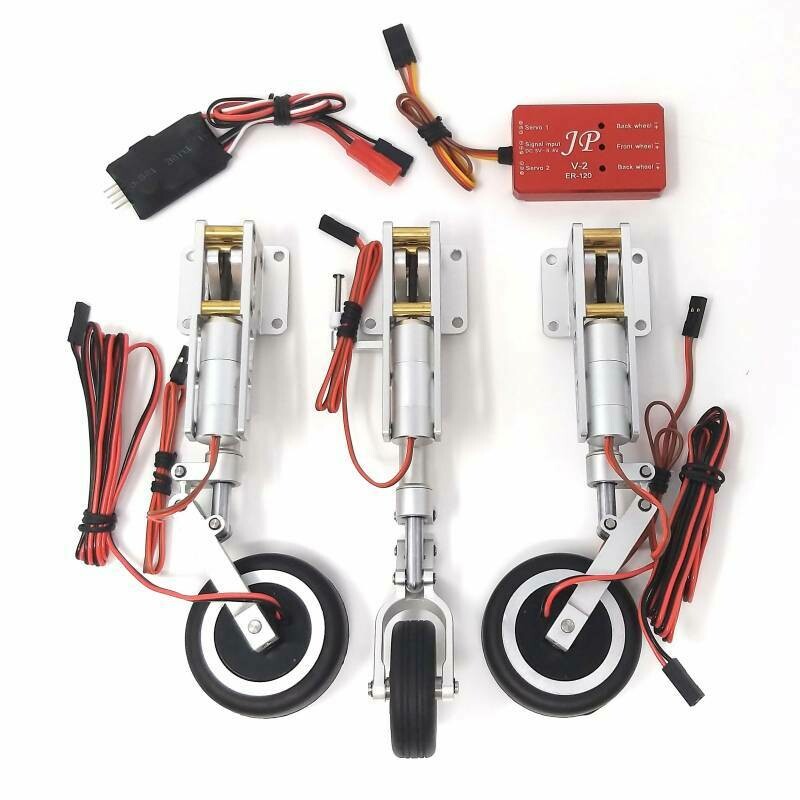

Tricycle full set JP Hobby ER-005 V2 with Brakes and controller for Sebart Mini Avanti S, L-39, MB-339, Hawk

More resistant V2 version

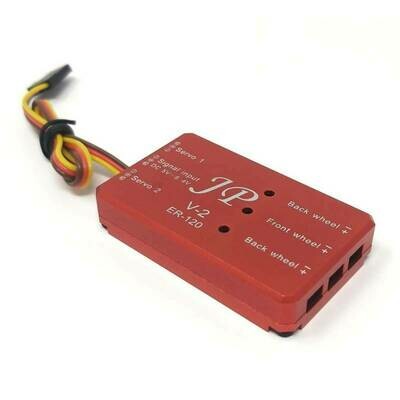

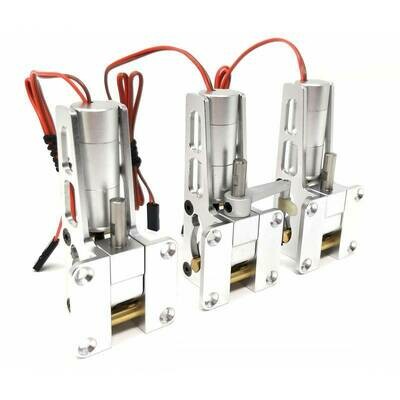

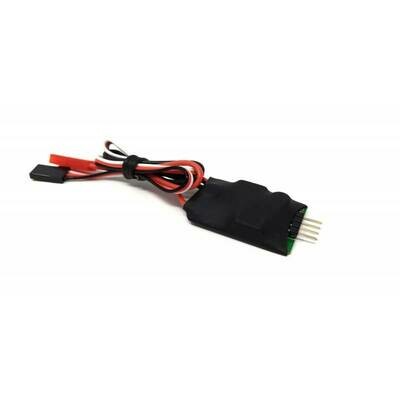

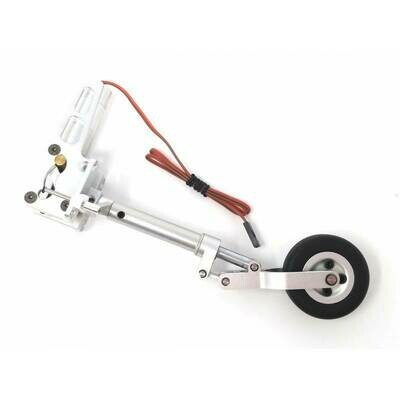

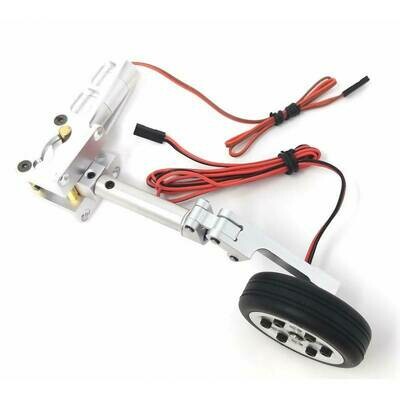

CNC Machined aluminium articulated and mechanical suspended « scale » electric landing complete gear set including 40 and 50mm wheels with brakes system and 3 retracts with a JP Hobby version 2 controller retract box and an electrical magnetic brake controller. Main gear and single nose gear. For planes up to 6Kg.

Specifications

• Materials: Aluminium
• Suspension: mechanical
• Wheels: ball bearings mounted
• For planes up to: 6kg (7-8kg possible)
• Linkage for Outward/Return cable control (steel cable not included)

Technical Specifications

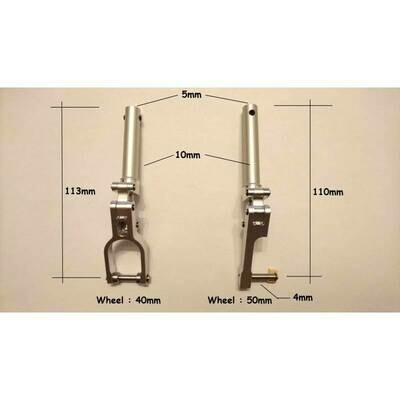

• Struts diameter: 10mm
• Mounting Struts diameter: Drilling 5mm
• Wheel axle diameter: 4mm
• Main gears wheels diameter: 50mm
• Nose gear wheel diameter: 40mm (45mm on demand)
• Weight: 507g (for the complete set including the 3 struts, 3 retracts, wheels, the controller and module)

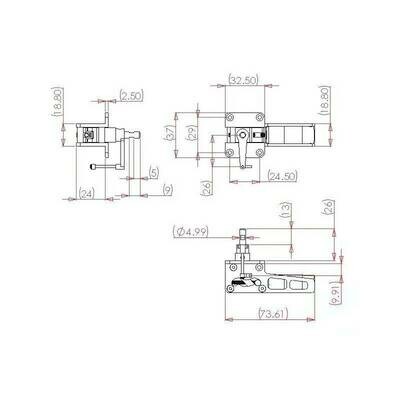

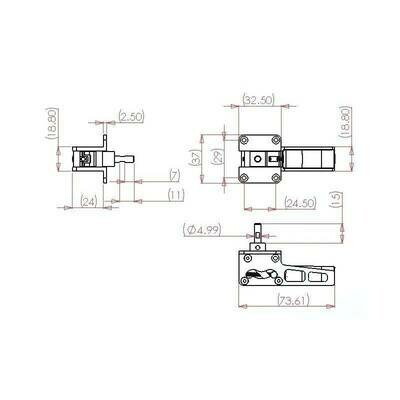

• Dimensions: for detailed dimensions, please refer to the pictures
• Working voltage: 5-6V
