Electric Nose Retract ER-005 V2

More resistant V2 version

> Model Weight: until 6kg

> Strut diameter: 10mm - Pin Diameter Size: 5mm

> Angle: 90 degrees

> Rotation direction: Inside (jack side)

More info

JP Hobby ER-005 V2 Metal Nose Strut Set for Sebart Mini Avanti S, Bae Hawk, L-39, MB-339, SF-260 50E, PC-21 50E or planes up to 6kg

More resistant V2 version

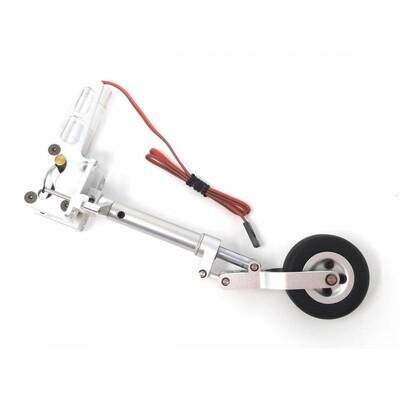

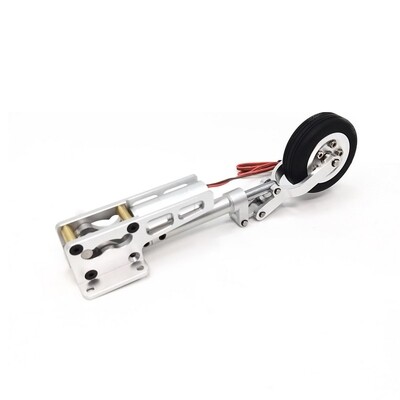

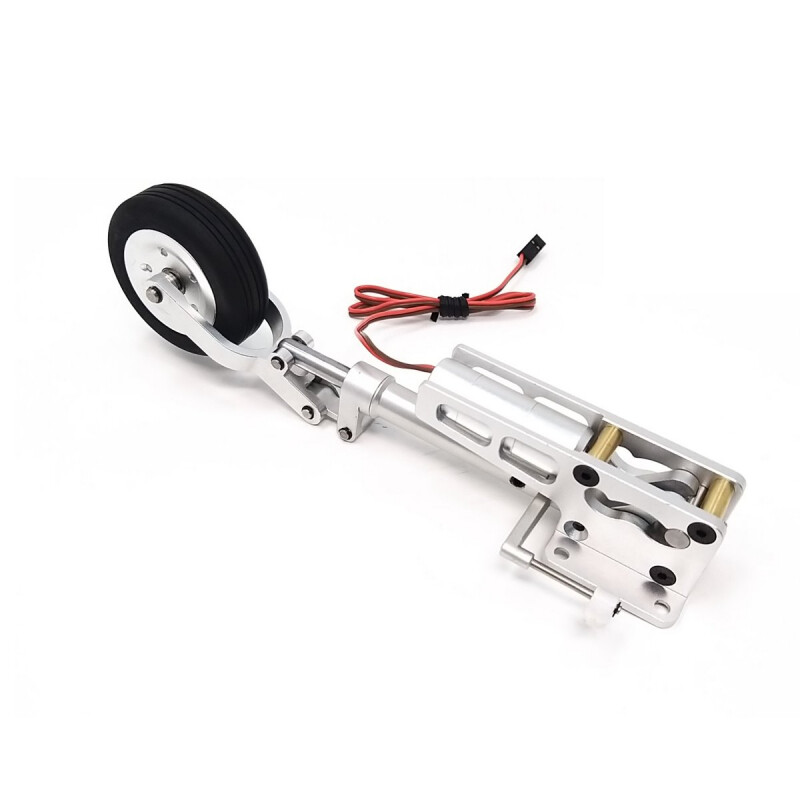

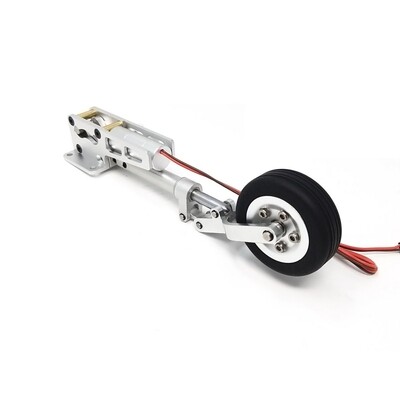

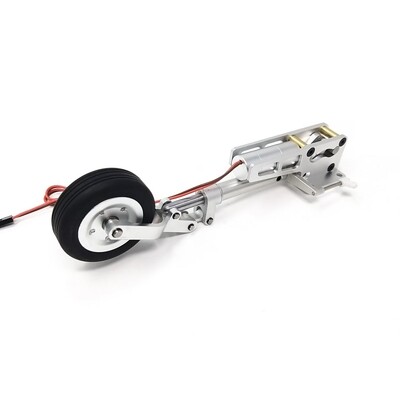

CNC Machined aluminium articulated and mecanical suspended « scale » electric landing complete gear set including 40mm wheel and 1 retract for planes up to 6kg.

Specifications

• Materials: Aluminium
• Suspension: mecanical
• Wheel: ball bearings mounted
• For planes up to 6kg (possible 7-8kg)
• Steering Arm part ER-005

Technical Specifications

• Strut diameter: 10mm
• Drilling: 5mm for mounting on retract
• Wheel axle diameter: 4mm
• Nose gear wheel diameter: 45mm
• Weight: 120g (the strut, wheel and retract)

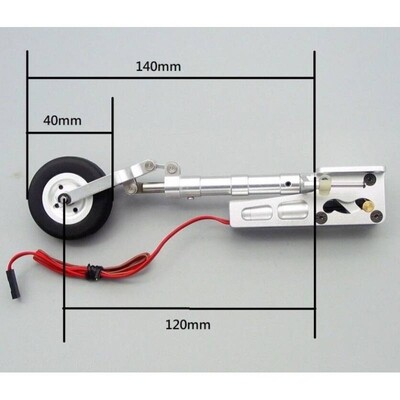

• Dimensions: for detailed dimensions, please refer to the pictures
• Working voltage: 5-6V

Content

• 1x Scale metal strut for nose gear equiped with 45mm wheel and steering arm
• 1x Electric Retract JP Hobby ER-005 V2 10mm (6kg/Low/Inside)

Requires

• The electric retract must be used with a JP Hobby sequencer. Please pay attention that only JP Hobby sequencers are qualify to work in accordance of the JP Hobby products.
• 1x Nose direction servo (option available on this page)

Note: JP Hobby landing gear, like most landing gear that are not delivered directly with the models, uses standard retracts, designed for the size and weight of the aircraft, but whose size brackets and the spacing of the holes in the brackets may vary. JP Hobby manufactures a number of retracts in different sizes but cannot offer a specific model for every make and model on the market. An adaptation of the mounting plate may be required.

> Mounting: Low

> Wheel: 45mm
