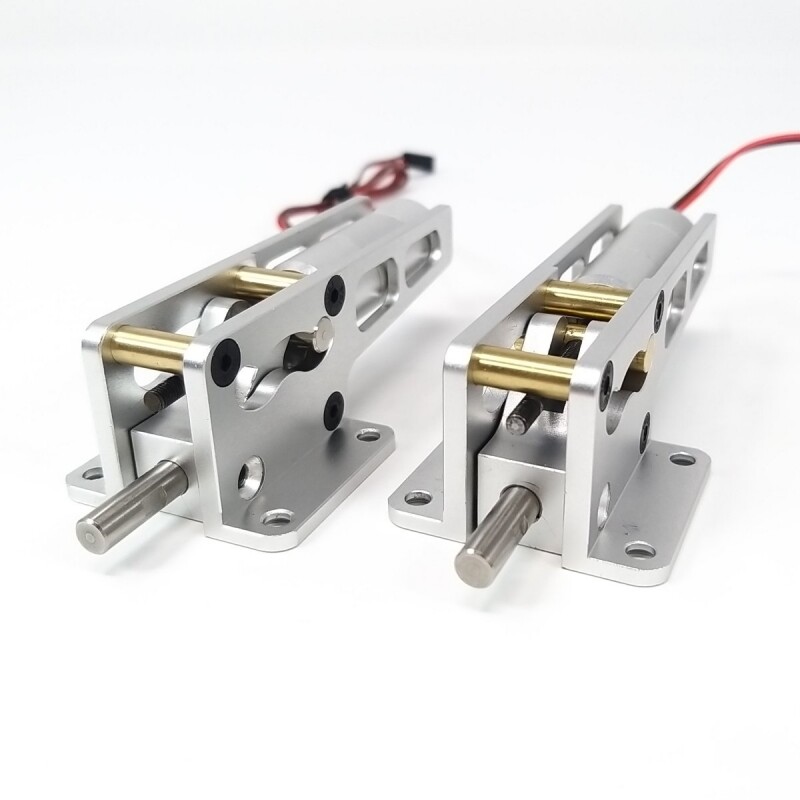

JP Hobby ER-005 5mm electric retracts set for 10mm oleo struts for models up to 6kg (Mounting position low and opposite jack side rotation) + Sequencer (optional)

These 2 electric allow main retracts work for planes up to 6kg equiped with JP Hobby oleo struts ER-005 or equivalent with a 5mm diameter in the upper part. The set of retracts is delivered with your choice of sequencer control module (optional).

This set does not include the sequencer of retracts and doors.  You can choose the type and model of sequencer according to your needs. Either Version 1 (V1 type) keeps the doors opened when the gear is down, or, Version 2 (V2 type) keeps the doors closed when the gear is down.

Note: These Allow retracts are provided for the oleo struts ER-005 or equivalent with a 5mm diameter in the upper part.

Specifications

• Material: Aluminium
• Struts diameter: 10mm
• Pin Diameter Size: 5mm
• For plane: up to 6 kg (possible 7-8kg)

Technical Specifications

• Retracts weight: 2 x 62.8g
• Control module box weight (option): 19g
• Retracts sizes: 26mm x 73mm x 18mm
• Retracts mounting plate sizes: 33mm x 37mm
• Control box sizes (option): 53mm x 32mm x 10mm
• Length with motor: 74mm
• Working Voltage: 5-6.4V
• Speed: 5.2 sec (5v) - 4.3 sec (6v)
