ER-150 Einfahrversionen - Version 2 schließt die Türen, wenn das Fahrwerk ausgefahren ist, während Version 1 die Türen offen hält. Dieser elektronische Schalter wird verwendet, um die Reihenfolge der elektrischen Einfahren von Ihrem Sender Getriebe Kanalschalter zu steuern. Es ist ein Ersatz-Steuergerät für die JP Hobby elektrischen Einziehfahrwerke.

More info

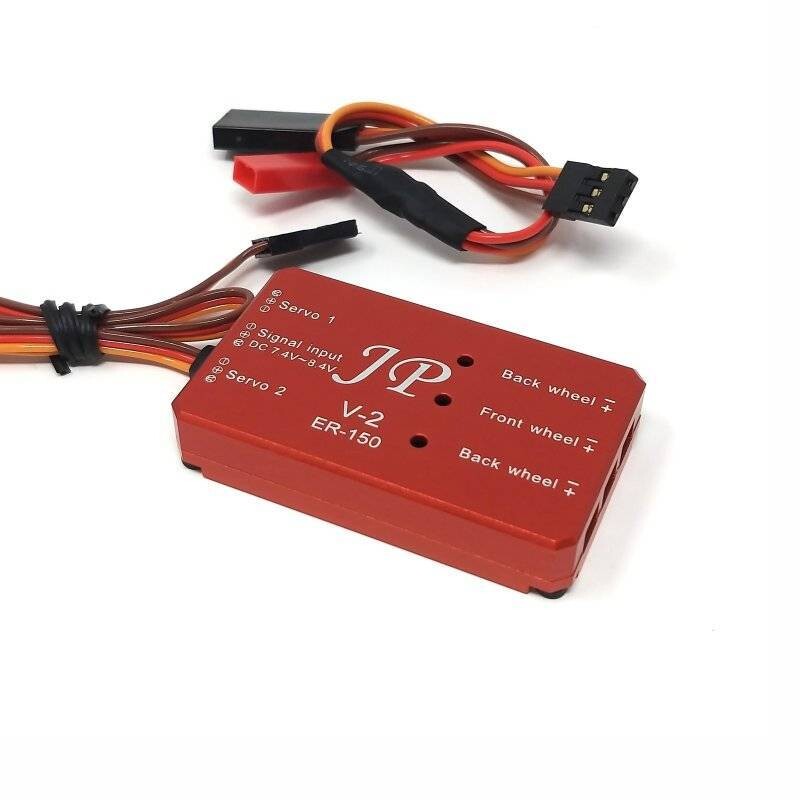

JP Hobby Tricycle Sequencer Retract Box ER-150 V2 (HV)

This electronic switch is used to control the sequence of electric retract from your transmitter gear channel switch. It is a replacement control box for the JP Hobby electric retracts.

This version equiped with a 2s plug is for use with the ER-150 retracts from JP Hobby.

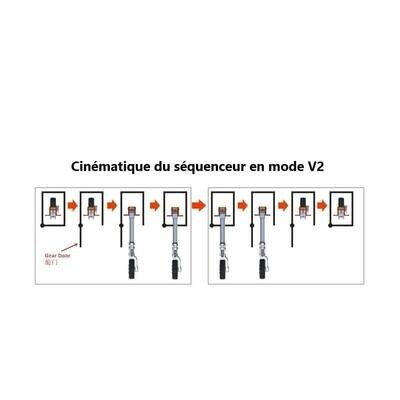

Note: Version 2 closes the doors when the gear is down while version 1 keep the doors open.

<strong>WARNING: Servos which controlling the gear doors must imperatively be H.V. (High Voltage) type</strong>

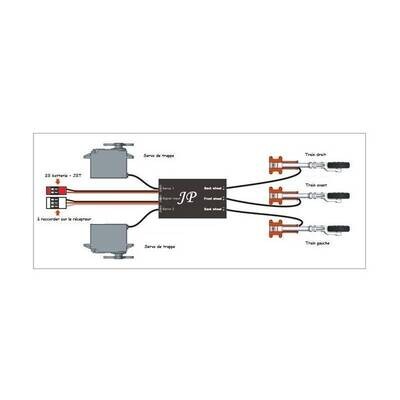

Connections

• Connect the electric retracts mechanism for the main gear to the "back wheel" plug and connect the nose wheel mechanism to the "front wheel" plug
• Connect the doors servos to the "Servo 1" and "Servo 2" plugs
• Connect the "signal input" wire and plug to your receiver "gear" channel
• Plug a 2s battery

Specifications

• Input voltage: 7.4v to 8.4V (2s)
• Size: 52 x 32 x 10 mm
• Weight: 22 gr

Compatibility
