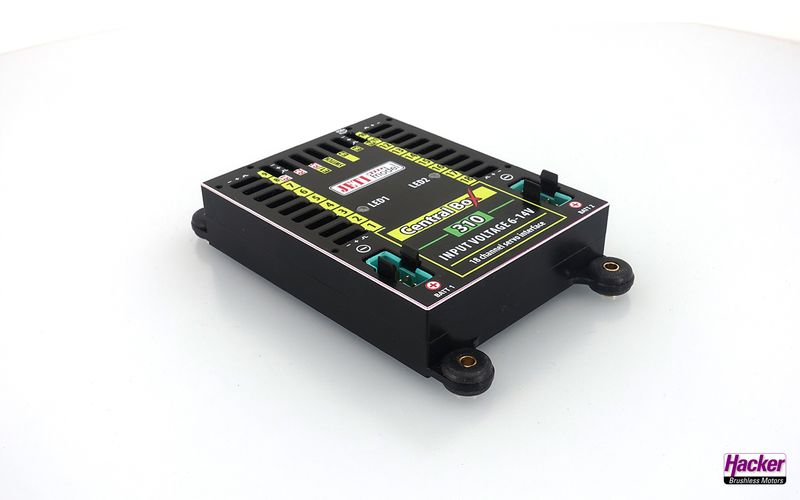

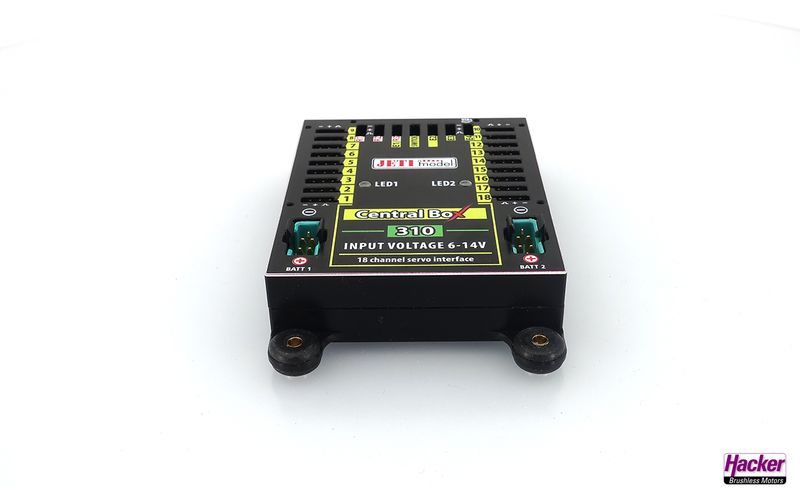

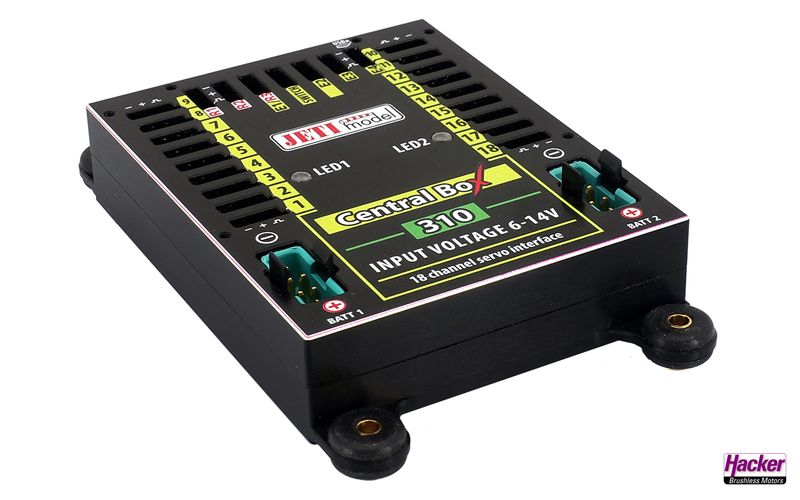

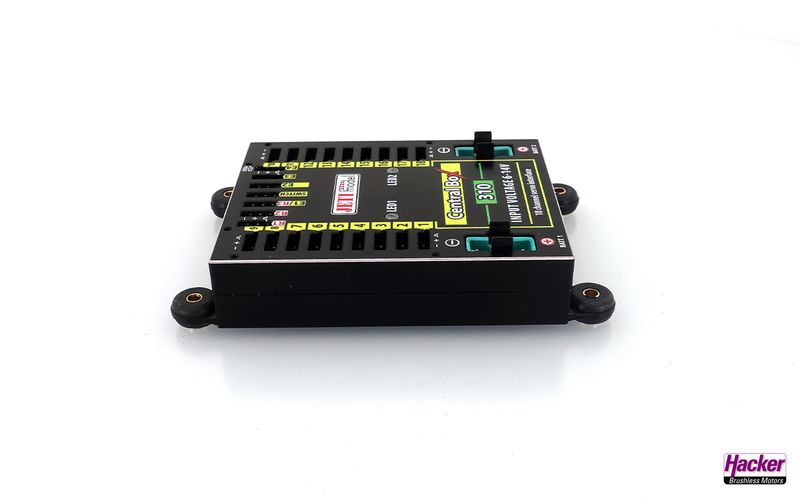

The Central Box 310 was designed to provide comprehensive management of multiple servos and two receiver batteries for a model with high safety requirements. The Central Box 310 delivers full, unreduced power from the internal BEC to the servo outputs. Specifically for use with powerful and high-current servos, the Central Box 310 features an aluminum housing and omits overcurrent protection on the servo slots. The Central Box 310 offers true battery redundancy, DITEX servo telemetry, JETI EX telemetry, and up to three receiver inputs (2x 2.4GHz and 1x 900MHz) for complete power and RF signal redundancy.

Configuration via JETI Duplex DS/DC Transmitter

With JETI Duplex DC/DS transmitters, the full potential of the Central Box 310 can be fully utilized. Using the device overview of the JETI Duplex DS/DC transmitter, the entire configuration of the servo outputs, DITEX servo and JETI EX telemetry, function assignment, etc., can be easily performed.

Compatibility with Futaba S.Bus

The Central Box 310 can also be used with two S.Bus receivers (e.g., Futaba R7003SB). However, settings and the reading of telemetry values must be performed via a separately available JETIBOX.

Power On/Off Procedure

The Central Box 310 is switched on and off using the included magnetic switch.

Recommended receivers

Receivers such as 2 RSat2 or REX3 receivers can be used. Optionally, a REX Assist receiver can be used together with an RSat2 receiver, resulting in a Central Box with gyro stabilization.

Features

• Adjustable high-performance BEC for voltage stabilization (connection of standard or HV servos)
• DITEX servo telemetry support
• Ability to connect up to 3 receivers with serial communication
• Built-in expander function with the ability to independently connect up to four JETI EX sensors
• Input for magnetic switch or RC switch
• Power supply batteries connected via MPX connectors
• 100 Hz mode for servo outputs (10 ms period)
• EX telemetry support (measurement of voltage, current, capacitance, temperature, etc.)
• Easy configuration changes via DC/DS transmitter (“Device Explorer”)
• Robust metal construction with mounting holes

Optional overload protection

The Central Box 310 does not feature built-in overload protection for the individual servo slots. To protect critical servos such as drag clutch, retractable landing gear, or flap servos, the optionally available DPSI OCP overload protection can be used.

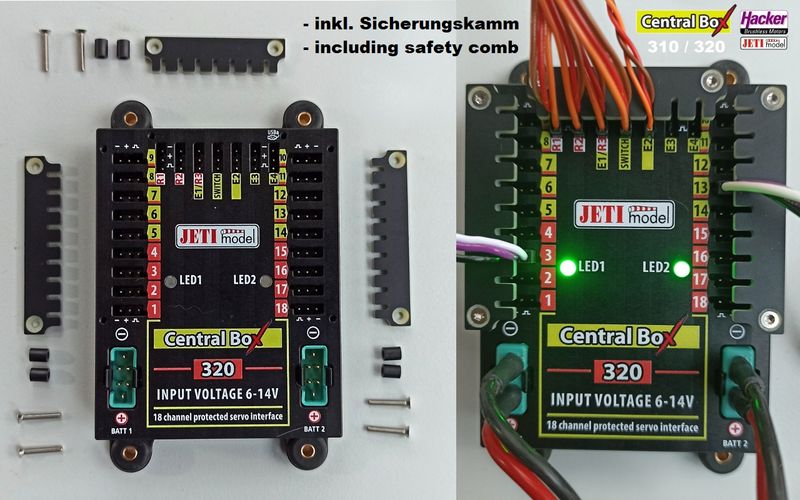

Comparison Table: Central Box 310/320

Contents

1 JETI Duplex 2.4EX Central Box 310, 1 magnetic switch, 1 magnetic key, and 1 patch cable.
