Configuration via JETI Duplex DS/DC Transmitter

With JETI Duplex DC/DS transmitters, the full potential of the Central Box 210 can be fully utilized. Using the device overview of the JETI Duplex DS/DC transmitter, the entire configuration of the servo outputs, DITEX servo and JETI EX telemetry, function assignment, etc., can be easily performed.

Compatibility with Futaba S.Bus

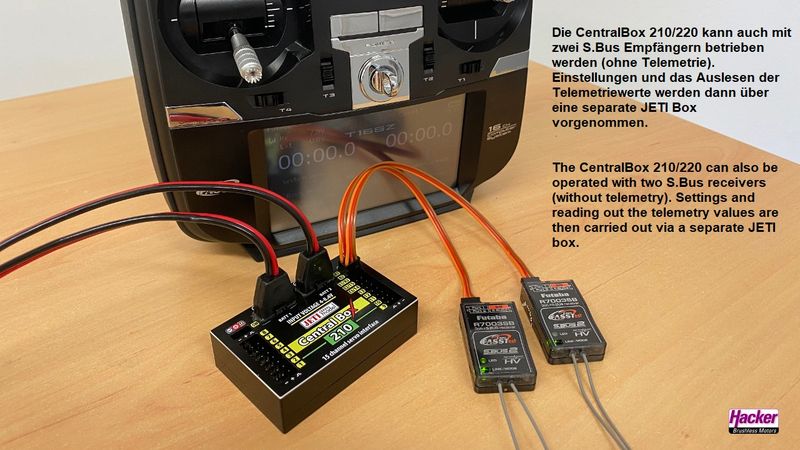

The Central Box 210 can also be used with two S.Bus receivers (e.g., Futaba R7003SB). However, settings and the reading of telemetry values must be performed via a separately available JETIBOX.

Power On/Off Procedure

The Central Box 210 is switched on and off using the included magnetic switch.

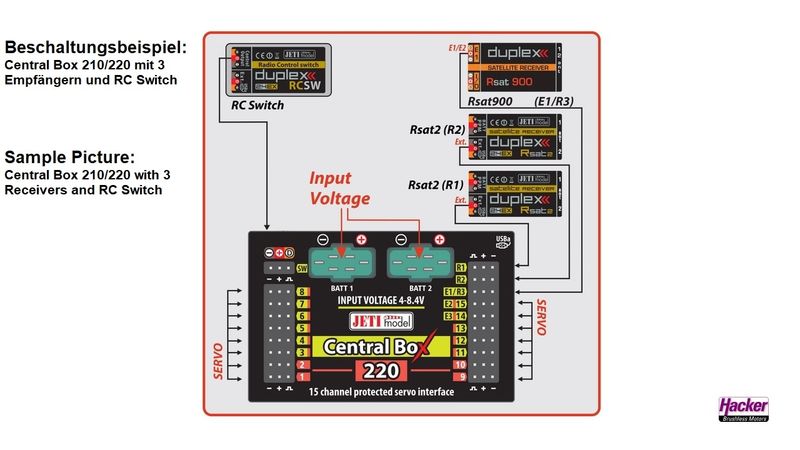

Recommended receivers

Receivers such as 2 RSat2 or REX3 receivers can be used. Optionally, a REX Assist receiver can be used together with an RSat2 receiver, resulting in a Central Box with gyro stabilization.

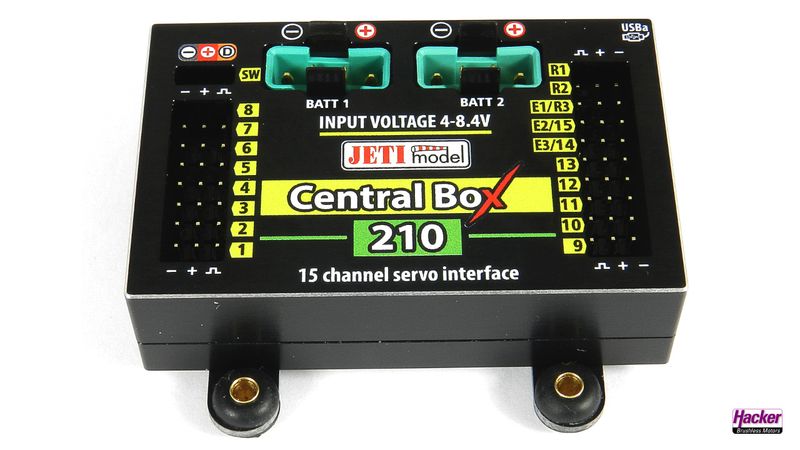

Features

• Configurable servo outputs
• Battery connections: 2x MPX connector system
• Robust aluminum housing for additional cooling and protection
• Firmware can be updated via JETI USB adapter and JETI Studio
• Wirelessly programmable via the device overview of the DC/DS transmitters
• Up to 3 independent receiver inputs (R1, R2, E1/R3)
• Up to 15 servo slots (compatible with DITEX servo telemetry)
• Up to 3 telemetry sensor inputs (E1/R3, E2/15, E3/14)
• Input for included magnetic switch or optional RC switch

Optional overload protection

The Central Box 210 does not feature built-in overload protection for the individual servo slots. To protect critical servos such as tow-hitch, retractable landing gear, or flap servos, the optionally available DPSI OCP overload protection can be used.

Comparison Table: Central Box 210/220

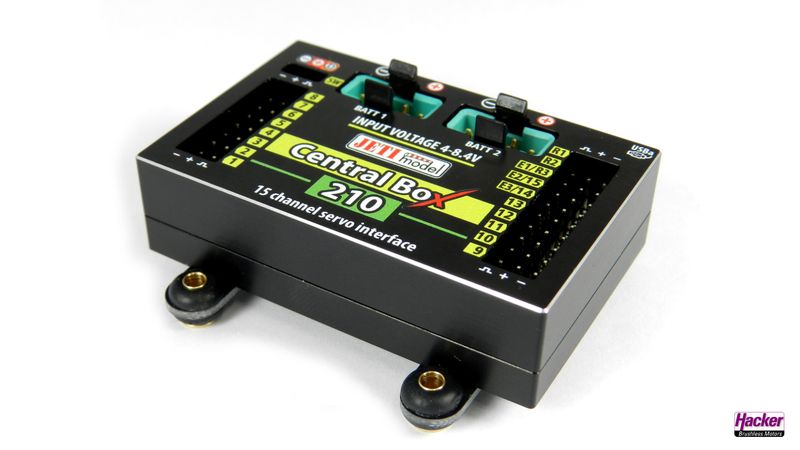

Contents

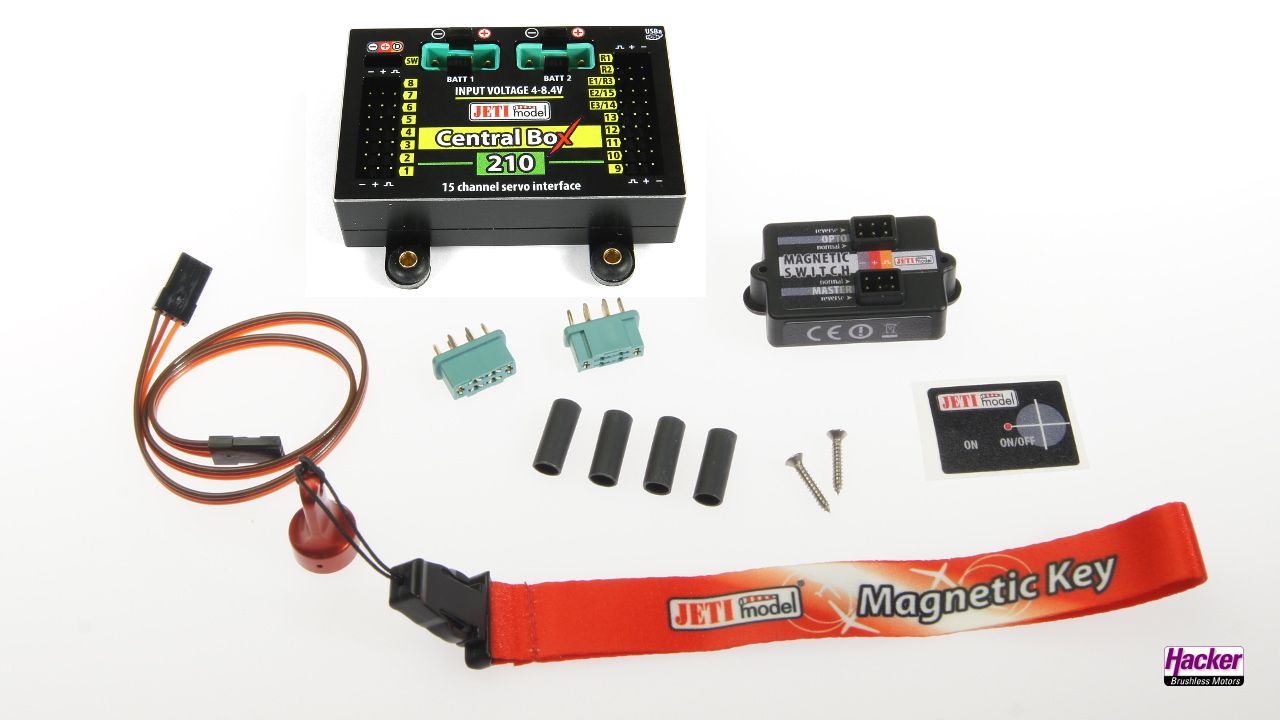

1 JETI Duplex 2.4EX Central Box 210, 1 magnetic switch, 1 magnetic key, and 1 patch cable.
