The Central Box 210 is the successor to the popular Central Box 200. Designed specifically for use with high-performance, power-hungry servos, the Central Box 210 features an aluminum housing and does not include overcurrent protection for the servo slots. The Central Box 210 offers true battery redundancy, DITEX servo telemetry, JETI EX telemetry, and up to three receiver inputs (2x 2.4 GHz and 1x 900 MHz) for complete power and RF signal redundancy.

Configuration via JETI Duplex DS/DC Transmitter

With JETI Duplex DC/DS transmitters, the full potential of the Central Box 210 can be fully utilized. Using the device overview of the JETI Duplex DS/DC transmitter, the entire configuration of the servo outputs, DITEX servo and JETI EX telemetry, function assignment, etc., can be easily performed.

Power On/Off Procedure

The Central Box 210 is powered on and off using the included RC switch via the DC/DS transmitter.

Recommended receivers

Two compatible RSat2 receivers are included in the package. Optionally, a REX Assist receiver can be used together with an RSAT2, resulting in a Central Box with gyro stabilization.

Features

• Configurable servo outputs
• Battery connections: 2x MPX connector system
• Robust aluminum housing for additional cooling and protection
• Firmware can be updated via JETI USB adapter and JETI Studio
• Wirelessly programmable via the device overview of the DC/DS transmitters
• Up to 3 independent receiver inputs (R1, R2, E1/R3)
• Up to 15 servo slots (compatible with DITEX servo telemetry)
• Up to 3 telemetry sensor inputs (E1/R3, E2/15, E3/14)
• Input for included RC switch

Optional overload protection

The Central Box 210 does not feature built-in overload protection for the individual servo slots. To protect critical servos such as tow-hitch, retractable landing gear, or flap servos, the optionally available DPSI OCP overload protection (see Accessories tab) can be used.

Comparison Table: Central Box 210/220

Contents

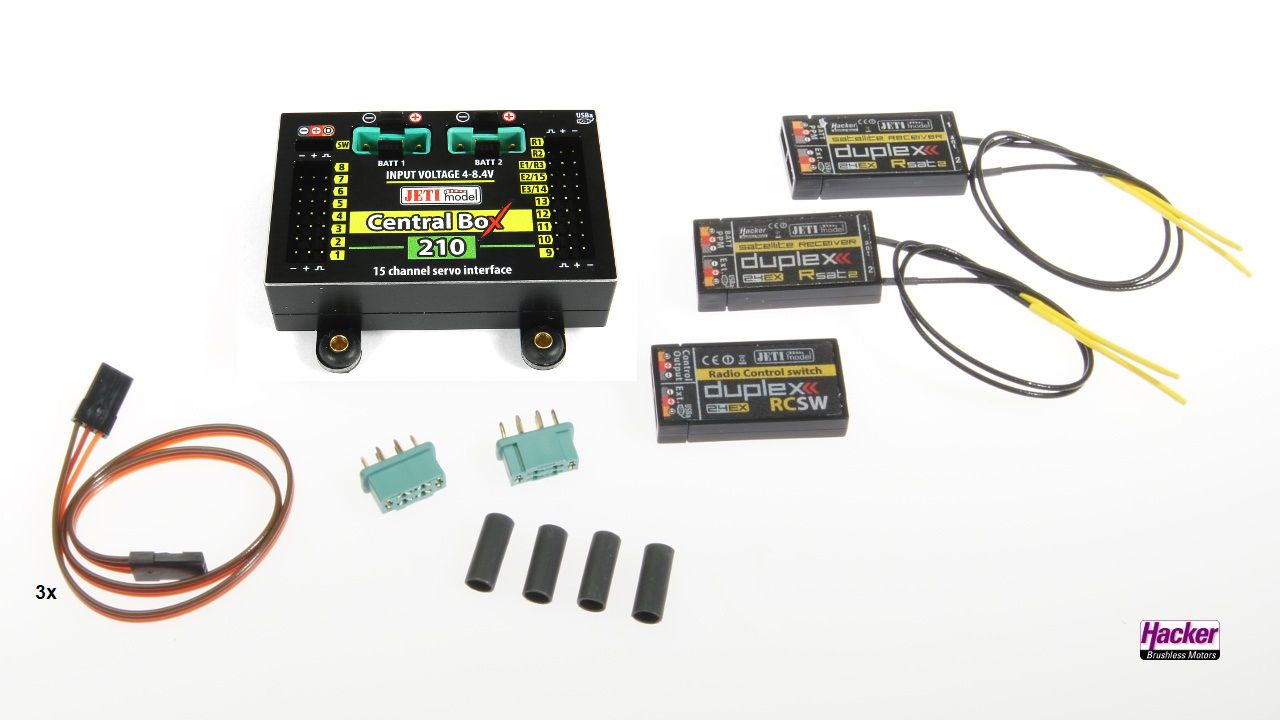

1 JETI Duplex 2.4EX Central Box 210, 1 RC switch, 2 JETI Duplex 2.4EX RSat2 receivers, and 3 patch cables.
