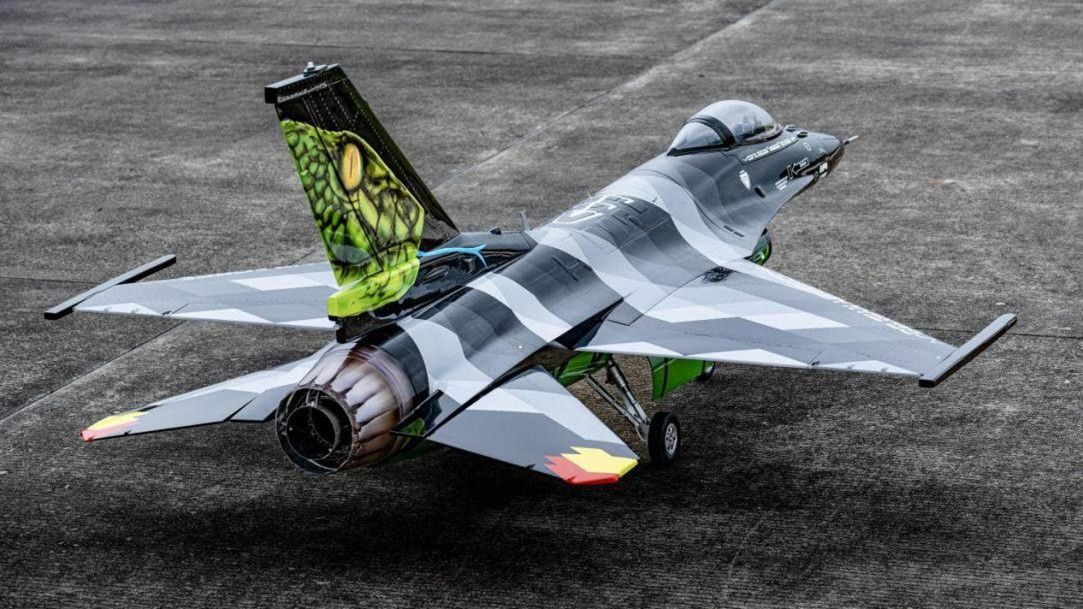

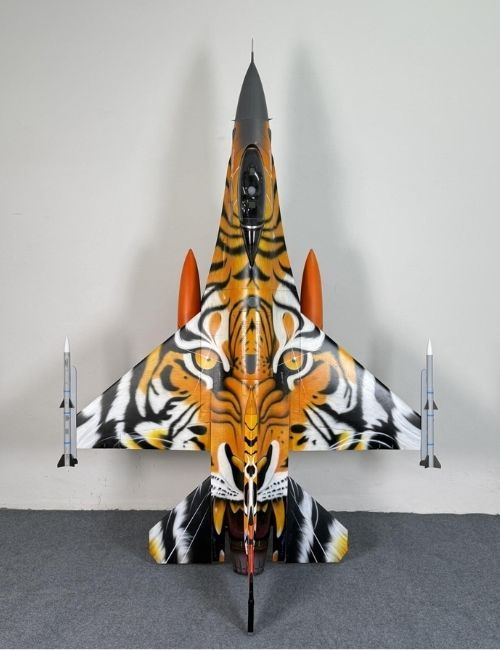

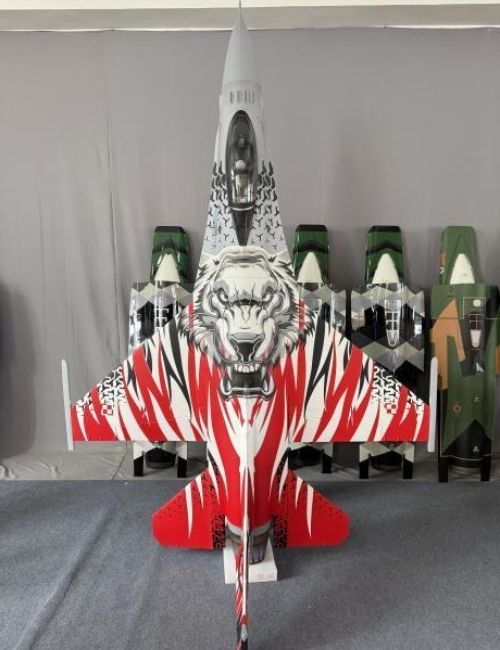

JET RULER proudly presents one of the most iconic aircraft in aviation history: the General Dynamics F-16 Fighting Falcon—as a high-quality scale model.

Our goal was to create an exceptional model that not only looks impressive but is also sturdy, reliable, and easy to transport—while flying superbly.

The 2.6-meter version was designed with an enlarged wing to ensure better performance and optimized flight characteristics.

Technical Specifications:

• Model: F-16 – 2.6 meters
• Wingspan: 1640 mm
• Length: 2602 mm (plus Pitot tube)
• Weight: 14–15 kg (without fuel)

Basic configuration:

Control travel:

• Ailerons: 25° up / 25° down – 40% Expo (measured at the wingtips)
• Rudder: 30° left / 30° right – 30% Expo
• Elevator: 25° up / 25° down – 40% Expo (measured at the leading edge of the elevator)

Center of Gravity (CG):
230 mm from the leading edge at the wing root (factory setting)

Special features:

• Entirely made of solid fiberglass (composite) – lightweight and extremely stable
• Painted outside the mold – no visible seam lines
• Easily removable ventral fins – secured with only two screws

Scope of delivery:

• Complete airframe including GRP rudder horns
• Carbon wing tubes
• Servo extension cables
• Fixed double-walled thrust nozzle (for 160–240N turbines)
• Main tank: 2x 2150 ml
• Smoke tank: 1x 1600 ml
• Pre-assembled linkages with ball joints
• Pre-glued control horns
• JP electric retractable landing gear with brake

Optional extras:

• Detailed cockpit (fighter jet style)
• Lighting system
• PNP version & installation service

Required components:

• Turbine: 160–240N
• Servos: 11 total
  • 4x mid-size (12–20 kg)
  • 5x standard-size (30–40 kg)
  • 2x vectoring servos, standard size (30–40 kg)
• Optional accessories:
  • Vectoring thrust tube
  • UAT: 280 cc
  • Smoke system (optional): with 1.6-liter Kevlar tank

In addition, all standard RC components are required: remote control, receiver, batteries, power box, and any other necessary accessories.
