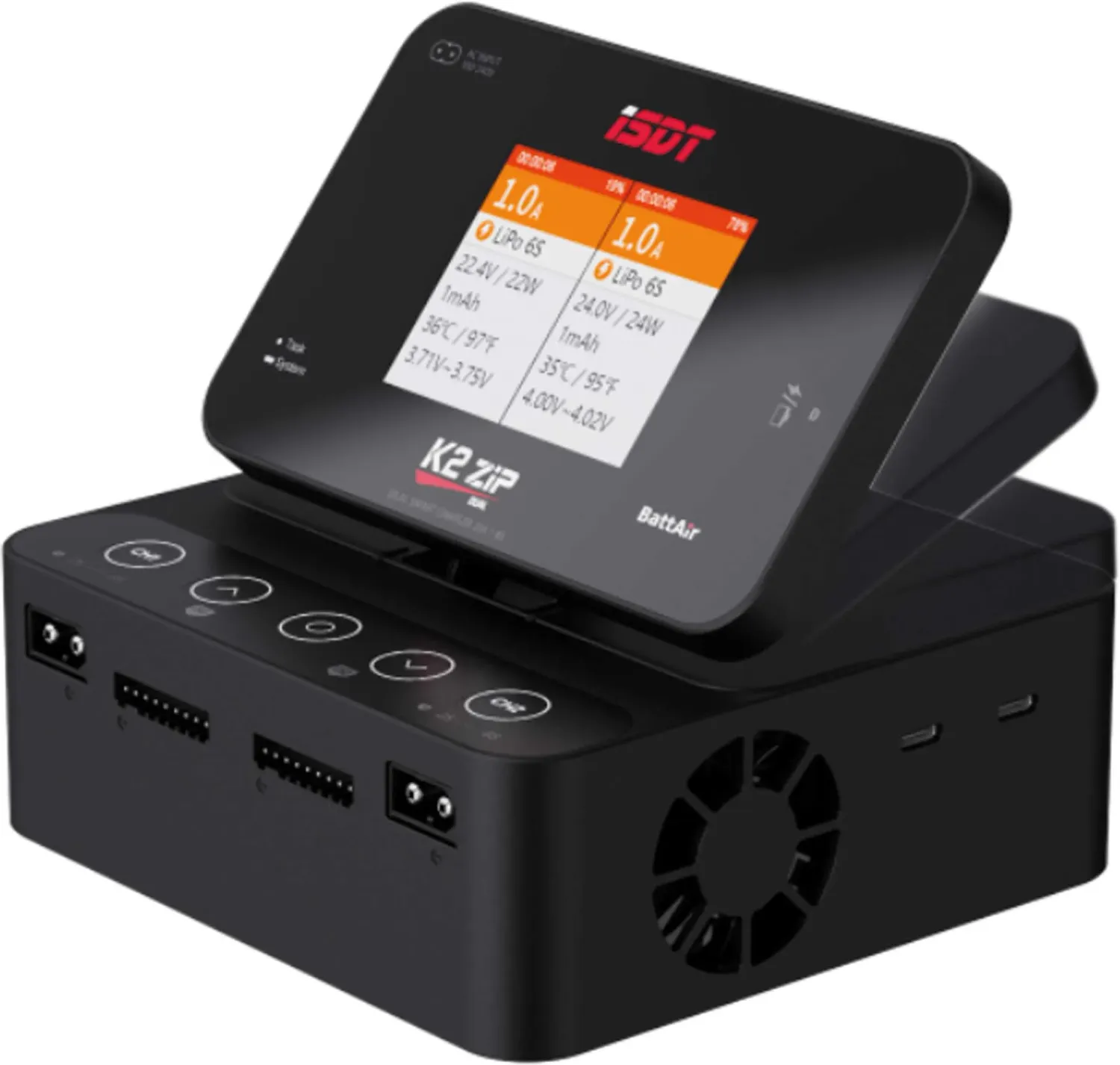

The ISDT K2 Zip Lipo Battery Balance Charger is a versatile, intelligent charging solution designed for various battery types, including LiPo, LiHv, Li-ion, NiMH, and Pb. It offers both charging and discharging functions with support for 1–8S batteries. The charger features two channels for simultaneous charging, with a total power output of 500 W per channel and a charging current of 20 A. The user-friendly interface and compact design make it an excellent choice for hobbyists and professionals looking for a reliable and safe charger.

Specifications

• Input voltage range: AC 100–240 V / DC 10–34 V
• Maximum input current: DC 35A
• Output voltage range: DC 1–34 V
• Charging current: 0.2–20A x2
• Discharge current: 0.2–1.5 A x2
• Balance current: 1.5A/cell max
• Maximum charging power: AC 200W / DC 500W x2
• Maximum discharge power: 15W x2
• Supported battery types and number of cells: LiFe; Lilon; LiPo 1–8S; LiHv, ULiHv 1–7S; Pb 1–14S; NiMH/Cd 1–18S
• Parallel charging power and current: 800W/30A
• Parallel discharge power and current: 30W/3A
• Alarm for incorrect cell voltage
• Error alarm for cell count setting
• Operating temperature: 0–40°C
• USB-C1: PD 65W
• USB-C2: PD 65W
• Storage temperature: -20–60°
• Dimensions: 135x126x57.7mm
• Weight: approx. 776 g
