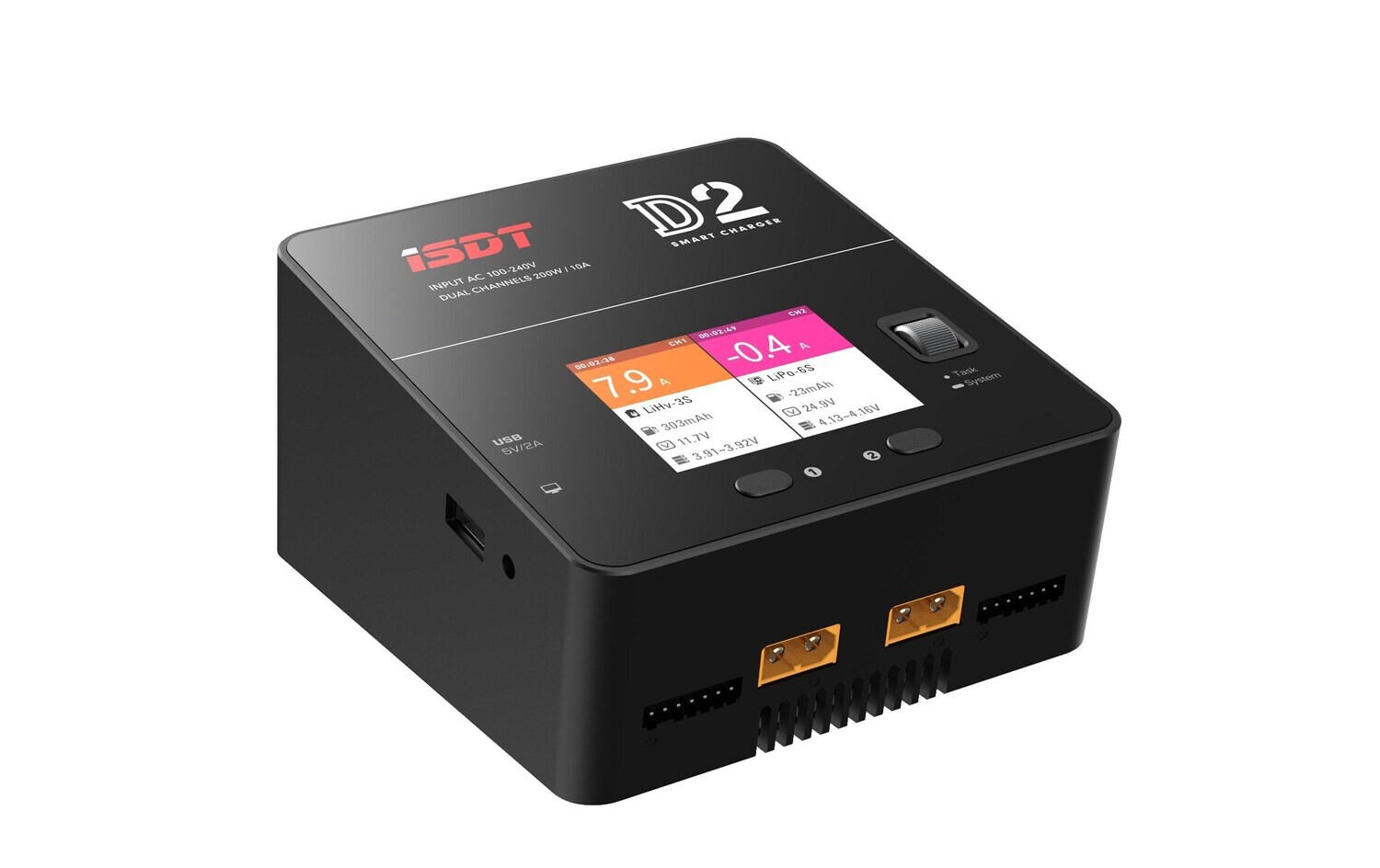

Additional features added:

D2 Mark 2 features Parallel Task, Dual Task, DC Power (CH1), Theme, and additional languages.

Hardware upgrades:

The D2 Mark 2 has upgraded the hardware, optimized the system, and further improved system stability.

Dual-channel output

No mutual interference; supports up to 6S balanced charging and discharging with 2 output ports; 5V/2A USB output power from the side of the device, allowing you to easily charge your mobile phone or other electronic devices.

Features

Wide-range AC input, industrial-grade power management adaptable to all different voltages worldwide; the use of PFC circuitry ensures more stable operation and reduces interference on the power grid. (SCP) Short-circuit protection. (OLP) Overload protection. (OVP) Overvoltage protection. (OTP) Overtemperature protection

Supported Battery Types

LiHv (1-6S) LiPo (1-6S) LiFe(1-6S) Lilon (1-6S) NiMH(1-16S) Cd(1-16S) Pb(1-12S)

Features:

1. Wide range for AC input, industrial-grade power management. DC Power (CH1): The charger’s CH1 acts as a DC power supply when this function is selected.

2,200W of dual-channel output, with no interference between channels. Dual Mode: Select this setting, and the charger will charge/discharge/maintain both channel batteries simultaneously using the same parameters. Parallel Mode: Select this setting, and it can deliver maximum power to a single battery.

3. Unsurpassed performance in terms of power-to-size ratio

4. Carefully optimized internal structure, dual-fan cooling system.

5. scOS developed specifically for Smart Charging OS.

6. Supports multiple languages; the menu navigation is self-explanatory

Description:

• Input voltage: AC 100–240 V
• Charging current: 0.1–12.0 A*2
• Discharge current: 0.1–1.5 A*2
• Maximum charging power: 200W
• Max. discharge power: 15W*2
• Equalization current: 1.5A/cell*2
• Balancing cells: 2–6S*2
• Supported battery types: LiFe/Lilon/LiPo/LiHv (1–6S), NiMH/Cd (1–16S), Pb (1–12S)
• Display: 2.4" 320×240 IPS LCD
• Operating temperature: 0–40°C
• Storage temperature: -20–60°C
• Dimensions: 120x108x70 mm
• Weight: 510g
