Hobbywing's Platinum Series features professional ESCs for airplanes and helicopters, delivering the top-tier, reliable performance you'd expect as a professional pilot. They also offer many advanced features, such as Governor Mode for helicopters. Users can update the firmware themselves to ensure it's always up to date. This ESC series is ideal for experienced pilots with extensive experience as well as those who place a high value on performance and quality.
With this extremely reliable and exceptionally powerful ESC, you’ll take your helicopter to new heights. Precise flight maneuvers and responsive throttle response are now a given. With the Soft Start-Up function, tail drift is a thing of the past, and you have an optimal starting position right from the get-go.

Excellent Motor Speed Control "Governing"
A 32-bit high-performance processor with a frequency of 72 MHz, paired with an advanced algorithm, enables excellent control of motor speed under a wide variety of conditions. Combined with the ability to adjust various throttle response parameters (governor parameters), you can be sure to achieve sensitive and precise control over the speed that meets the needs of every pilot.

Driving Efficiency Optimization Technology / High Reliability & Efficiency
"Driving Efficiency Technology (DEO)" reduces the controller’s operating temperature, increases flight time, and delivers consistent, stable performance. Thanks to an active brake, the motor can reduce its RPM extremely quickly when the throttle is released, resulting in a significantly faster response to throttle movements. This makes it even easier for the pilot to perform maneuvers such as extremely sharp turns, sudden changes in altitude, or abrupt braking.
With DEO technology, the ESC temperature is reduced by up to 10% and efficiency can be increased by up to 10%.

High-Performance HV BEC
The integrated switching BEC has an adjustable voltage range from 5V to 8V and can handle a constant load of 7A and even up to 18A for short periods. This provides sufficient power for fast and precise control of your HV servos.

Super-Smooth Start
The Platinum v4 series enables motors to start super-smoothly and prevents "tail drifts." The start time can be adjusted between 8 and 25 seconds, ensuring an ideal starting condition for every flight.

Four Brake Modes
The Platinum series features the following brake modes: Brake Disable / Normal Brake / Proportional Brake, and Brake Reverse. Braking force is adjustable in Normal Brake mode; in Proportional Brake mode, the braking force is automatically adjusted based on stick movement; and in Brake Reverse mode, the rotor’s direction of rotation can be reversed using an additional channel.

Multiple Protection Mechanisms
It features numerous protection functions, such as protection against controller overheating, capacitor overheating, controller overvoltage protection, signal loss, and undervoltage protection. Thanks to all these protection mechanisms, you will be able to enjoy the controller for a long time.

Additional features
A separate programming port on the controller allows you to

• program the controller
• check flight data such as min. voltage, max. temperature, standard RPM, and throttle curve (in Heli Governing Store Mode)
• update the firmware using the multifunction LCD Program Box or via the Wi-Fi module & Apple/Android mobile app

Technical Specifications:

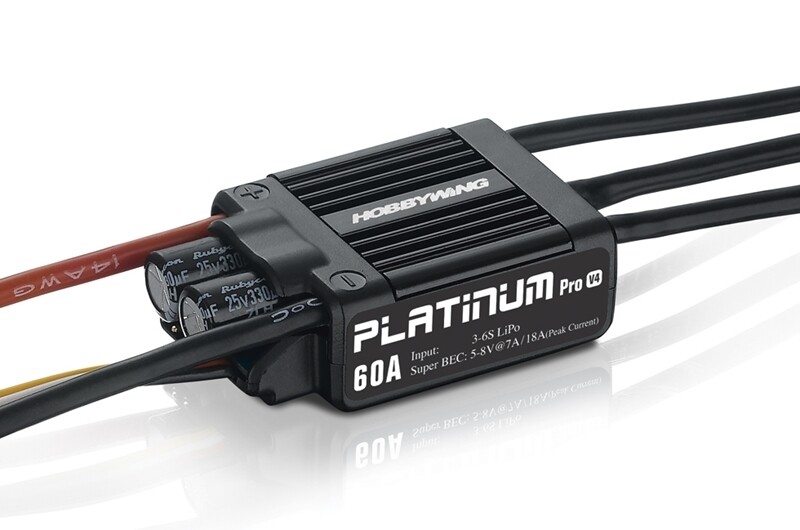

• Product Name: Platinum 60A V4
• Product Number: 30215100
• Type:
  • Brushed/Brushless: BL
  • High Voltage/Regular: Regular
• Specifications:
  • Continuous current / short-term: 60A/80A
  • Input Voltage: 3-6S LiPo
  • BEC Output: Switch Mode 5-8V / 7A
• Cables & Connectors
  • Input cable: 14 AWG - 100 mm
  • Output cable: 14 AWG - 75 mm
  • Input connector: None
  • Output connector: 3.5mm gold contact (female)
    Note: All cable lengths refer to the total length, including the length inside the housing
• Controller Programming
  • Remote control: No
  • LED Program Card: No
  • LED Program Box: No
  • LCD Program Box: Yes
  • WiFi Module: Yes
  • Programming port: Programming / throttle cable
• Firmware
  • Firmware updateable: Yes
• Size & Weight
  • Dimensions: 48.0 x 30.0 x 15.5 mm
  • Weight: 49 g
• Application
  • 450-480 class helicopters (main rotor: 325-360 mm)
