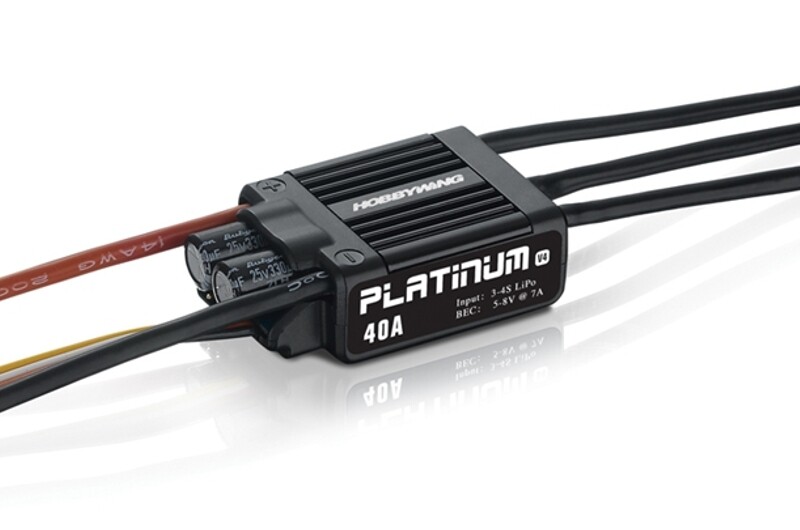

Hobbywing Platinum 40A V4
With the Platinum 40A V4, Hobbywing sets new standards in ESC technology. This ESC is distinguished by excellent control performance, protection mechanisms, and a wide range of programming and application options. This ESC is suitable for 300-class helicopters (rotor blade lengths 280–325 mm) as well as fixed-wing models and multicopters. With a 40A rating and operation with 3–4S LiPo batteries, it features a compact size and low weight.

Features

Latest DEO technology
for smooth and linear control response. Startup function for
smooth takeoff and programmable braking function

Programmable
via Hobbywing WiFi Express module or LCD programming box

Powerful switching BEC
BEC adjustable from 5-8V in 0.1V increments

Governor function
: 3 different governor modes are available: External Governor,
Store Governor, and Elf Governor

Technical Specifications

Solid connection cables: 14 AWG
Constant/peak current: 40A / 60A
BEC: Switching BEC adjustable from 5-8V in 0.
1V increments BEC voltage constant/peak: 7A / 18A
Applications: 1/300-scale helicopters, fixed-wing models, and multicopters
Lipo cells: 3-4S
Protection functions for: Undervoltage, overload, signal loss, overheating
Dimensions: 48x30x15mm
Weight: 47 g.
Programmable with WiFi Express module or LCD programming box
