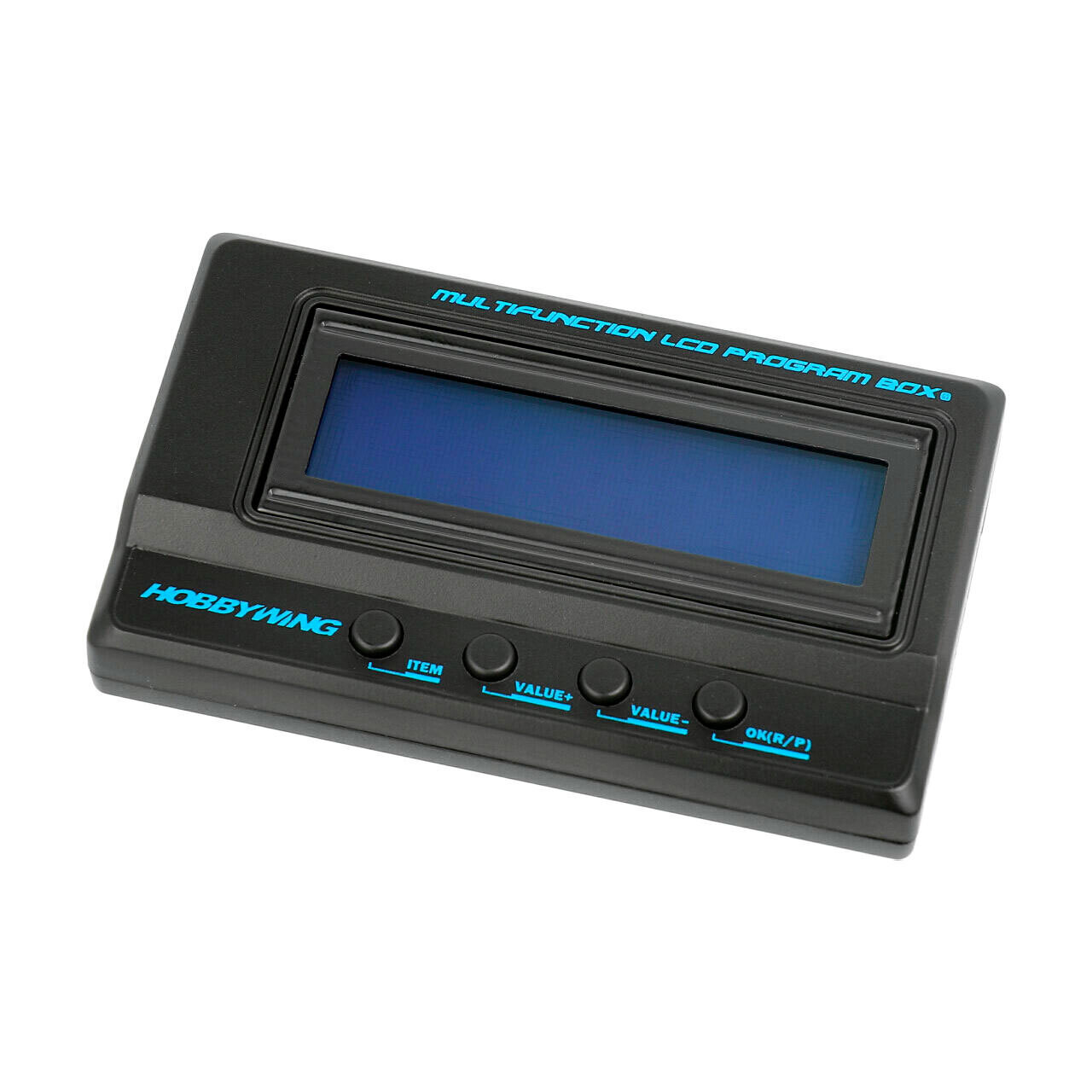

The improved LCD programming box from Hobbywing is the ideal accessory for conveniently and easily programming brushless ESCs, whether you're on the go or at home on your computer. The set values are displayed on the 16x2-character LCD screen, so you always know exactly what settings you're adjusting. With the included USB-C adapter, the box can also serve as a connection between the ESC and the computer, allowing you to update the firmware, for example.

If you need even more functionality, you can also use the programming box to measure the voltage of individual LiPo cells or entire packs. That’s three outstanding functions in one handy device.

Note: Please check your controller’s programming settings to determine which values can be set.

Technical Specifications:

• DC input voltage: 4.5–12.6 V
  (If the controller does not have a built-in BEC, a separate battery must be used)
• Display: 16x2 character LCD
• Connections: USB-C, ESC, power supply
• LiPo measurement compatibility: XH, EH, HP/PQ
• Dimensions: 90x51x17mm
• Weight: 65 g

This multifunction LCD program box is compatible with the following controllers:

• XeRun Auto ESC: Version 2.0, 2.1, 3.0, 3.1, and newer
• EZRUN car ESCs: Version 2.0 and newer
• PLATINUM helicopter/aircraft controllers
• Seaking Pro boat controllers
