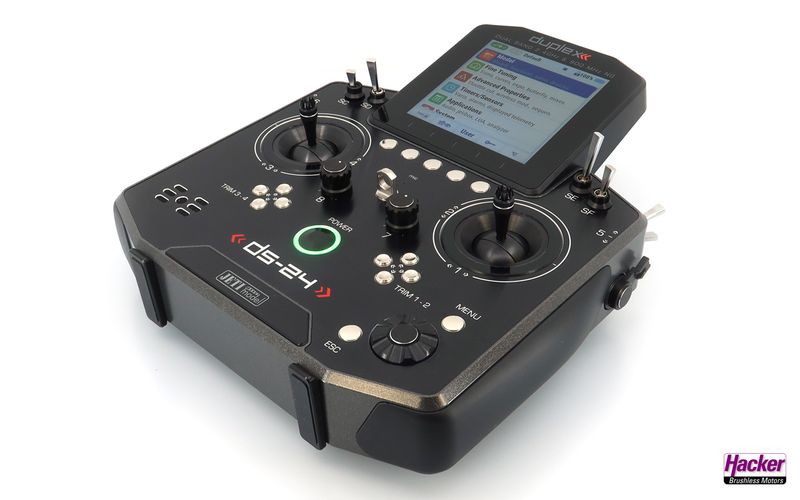

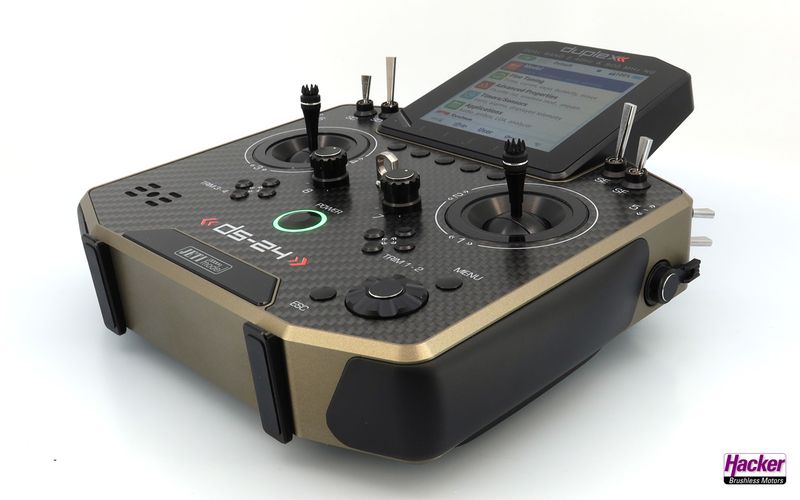

The latest generation of the DS-24 transmitter has been significantly improved and its range of functions expanded. The timeless design has been further refined, and the weight of the aluminum housing has been reduced. This has resulted in a significant improvement in comfort and ergonomics.
In addition to the existing support for Bluetooth headsets, a smartphone app (Android/iOS) is now available, allowing telemetry data to be displayed on the smartphone via Bluetooth. The DS-24 II features new control sticks that are now fully adjustable from the outside, including mode switching.

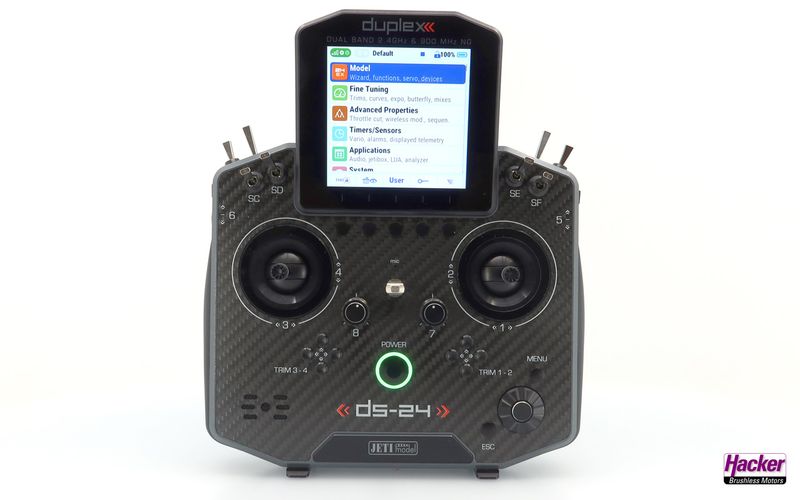

The new 4-inch color display offers higher resolution and greater contrast, and, in combination with the redesigned menu, makes operation significantly easier.

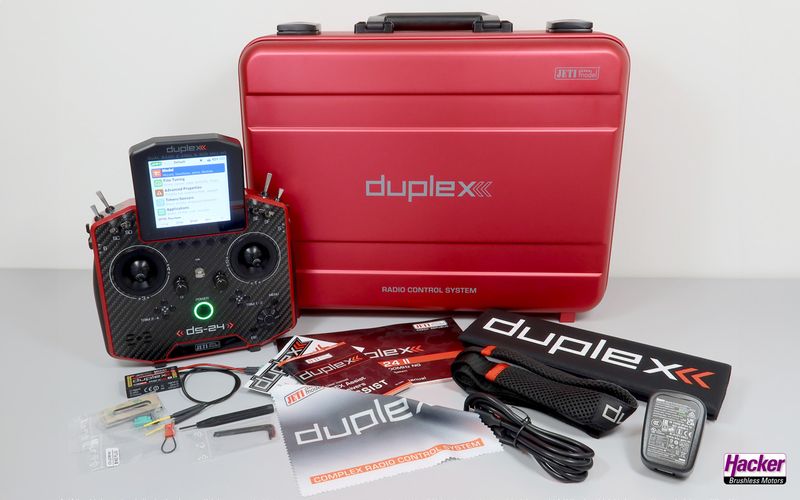

Scope of delivery

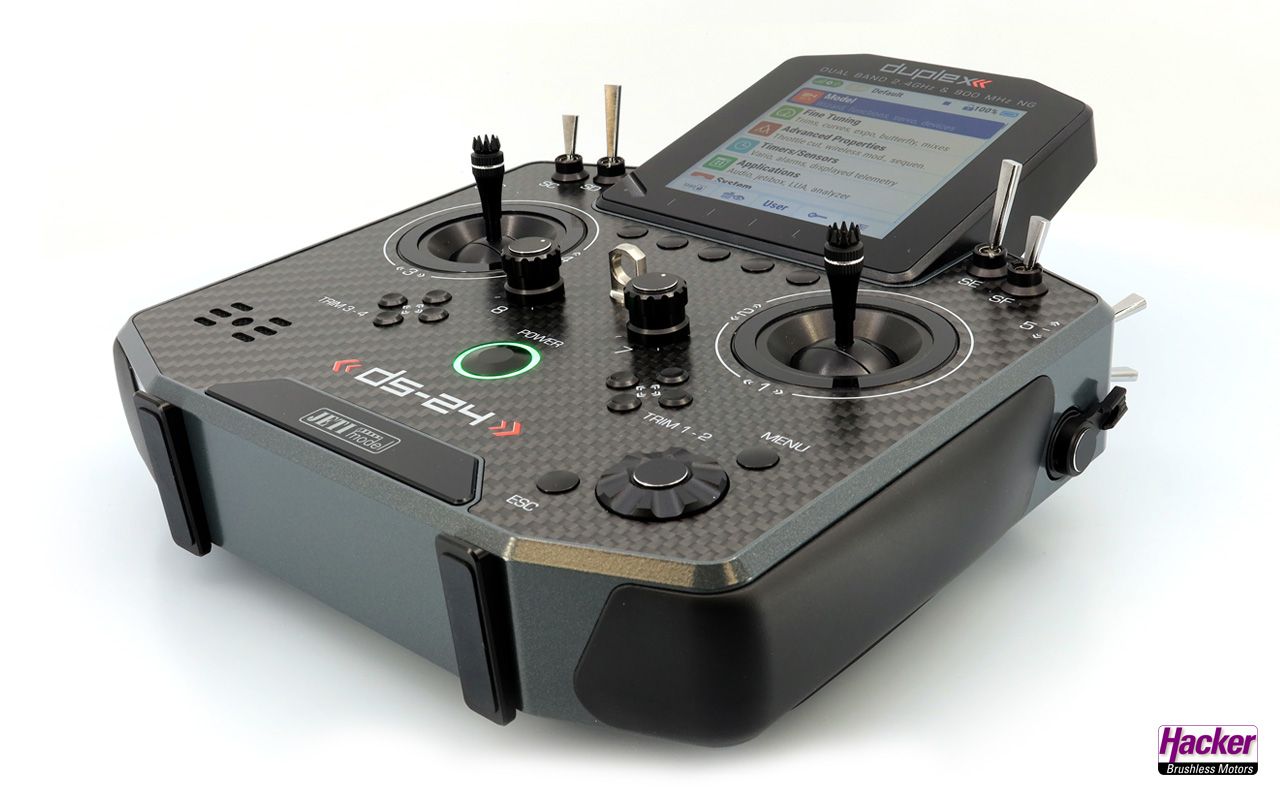

DS-24 II Gray-painted transmitter (shipped in Mode 2, control mode very easy to switch), REX12 Assist receiver with accessories, aluminum case, built-in transmitter battery, charger for transmitter battery, USB-C charging cable, transmitter strap, DUPLEX pad, cleaning cloth, assembly tool, user manual

Features

• New stick assemblies, fully adjustable from the outside
• Side sliders can be reoriented
• Switch replacement significantly simplified
• P7+8 rotary encoders can be replaced with switches

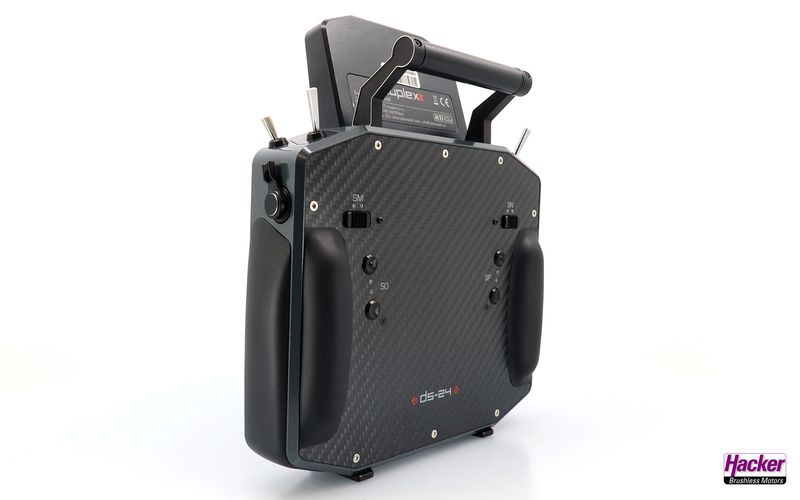

• New ergonomic design of the rear panel
• 4-inch high-contrast color LCD display
• Bluetooth support for headphones
• Bluetooth telemetry transmission to smartphones
• Online updates via WiFi (available later)
• Android/iOS app for telemetry display
• 900 MHz NG backup system
• New menu structure design
• Reduced weight
• One port for PPM and headphones
• USB-C port (charging function, data connection to PC/Mac)
• Full compatibility with the DUPLEX system and older JETI transmitters
• 3-level vibration alert on the left and right control sticks

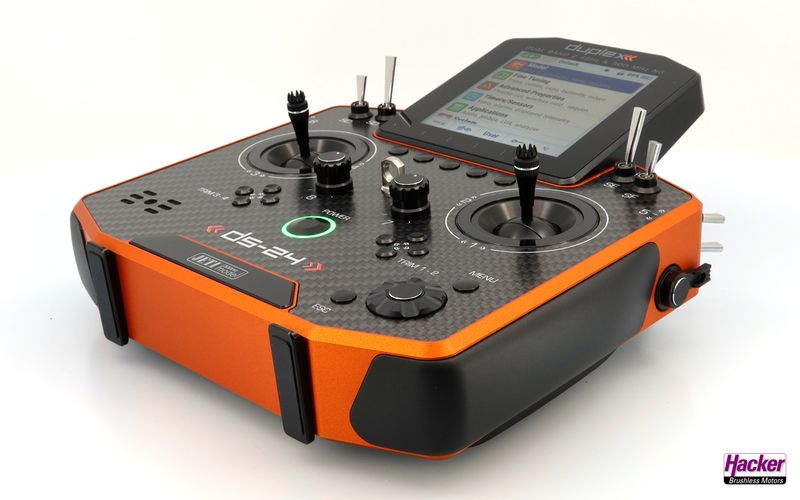

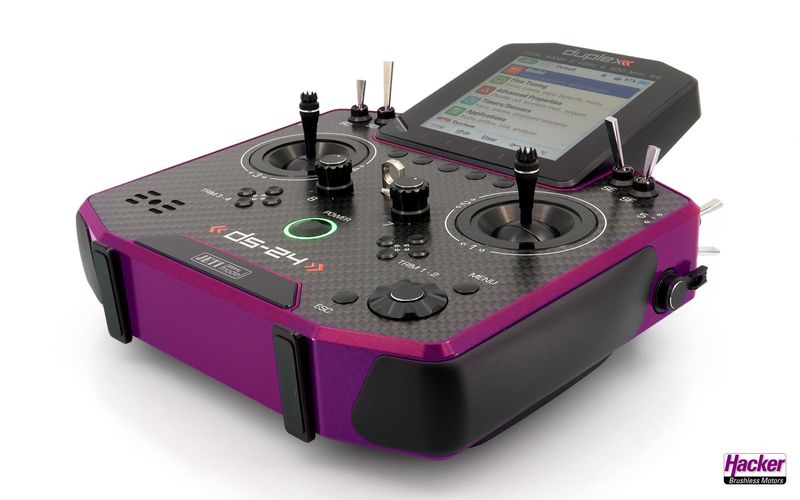

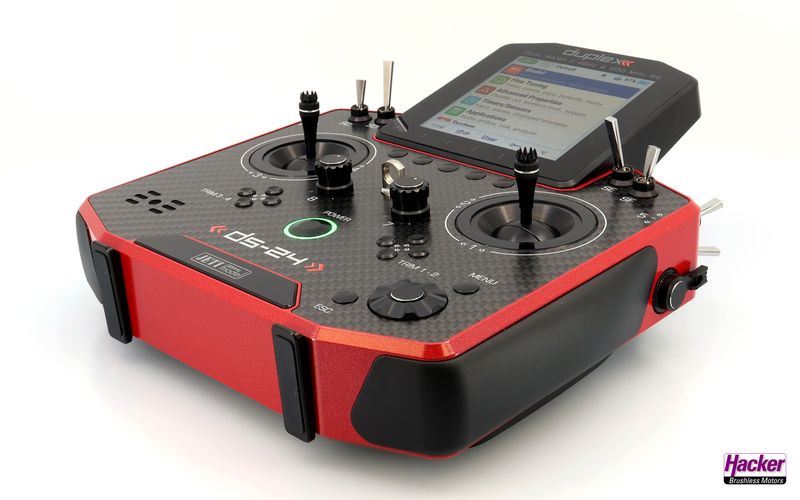

• New color options

900 MHz NG backup system

This is an independent, secondary transmission system operating in a different frequency band. If this system is activated, the model can continue to be controlled even if the 2.4 GHz band is disrupted (e.g., by microwave radio, during drone flights for TV broadcasts, etc.). The 900 MHz NG backup system only activates when this situation occurs. Thus, it significantly enhances safety in high-end models. Of course, this backup system can be activated or deactivated separately for each model. It is always used in conjunction with the 2.4 GHz transmission system, not on its own.

Transmitter Hardware

• Multimode control stick adjustable from the outside
• Detection of stick positions via Hall sensors (without potentiometers)
• Control resolution: 4096 steps
• 4-inch 480x480px color display, backlit
• Rotatable joystick assemblies
• All-aluminum control sticks/assemblies, length-adjustable, ball-bearing mounted
• Internal memory
• Integrated antennas
• Integrated Li-ion battery for long operating time
• Charger and USB-C charging cable
• Aluminum carrying case
• Built-in speaker
• Bluetooth and Wi-Fi module
• USB-C port
• Headphone and PPM jack
• Digital trims
• Painted aluminum housing

Transmitter software

• 2.4 GHz DUPLEX EX
• 24 control channels
• Customizable menu navigation
• Virtually unlimited settings
• Virtually unlimited number of model memories
• Firmware updates via USB and WiFi (available later)
• Ultra-fast control response
• Power management system for extended runtime
• Bluetooth connection to smartphone app and headphones
• 4 adjustable model types (airplane/helicopter/scale model; multicopter)
• 8 languages (EN / DE / CZ / FR / IT / PT / SE)

Telemetry functions

• Voice output of telemetry warnings and telemetry values
• Real-time display of telemetry data on the transmitter screen and smartphone app
• Recording of telemetry data
• PC/Mac transfer, storage, and editing of telemetry values
• Backup of model data and transmitter settings on PC/Mac

Technical Specifications

• Dimensions [mm] 230 x 270 x 40
• Weight [g] ~1275
