Once again, KST delivers with the HS08 series—competition-grade servos for glider pilots and enthusiasts who demand the very best! The new HS08s are nearly as compact as the popular X08 series and deliver performance that rivals the popular X10 Mini servos. With their sleek, 8 mm wide 7075 alloy housing, these servos not only look fantastic but also deliver the competition-winning performance you expect from KST.

The HS08 series is available in 2 configurations with mounting tabs to make installation on your models a breeze, and is perfect for wing and fuselage mounting. With a hardened steel drive train and a coreless motor suitable for HV input, the HS08 delivers the power and reliability you need to win!

Features:

• Compact and lightweight design
• Excellent torque and speed
• Designed for high-performance RC gliders
• Excellent heat dissipation
• Ultra-slim 8mm housing

Technical Specifications:

• Operating voltage: DC 3.8V–8.4V

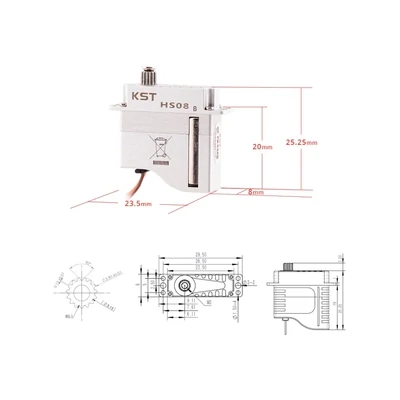

• Dimensions: 23.5mm x 8mm x 25.25mm
• Torque: 2.8Kg.cm@3.8V / 4.5Kg.cm@6.0V / 5.2KG@7.4v
• Speed: 0.21 sec/60°@3.8V / 0.13 sec/60°@6.0V / 0.11 sec/60°@7.4V
• Weight: 11g
• Standby current: 0.68A
• Rated current: 0.25A
• Rated speed: 0.20 sec/60° @ 6.0 V

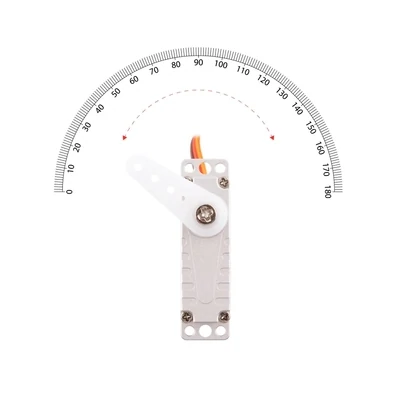

• Standard travel angle: ±60° = 120° total travel
• Operating temperature range: -20°C to +65°C
• Operating frequency: 1520us/333Hz, 1000us–2000us
• Motor: Coreless motor
