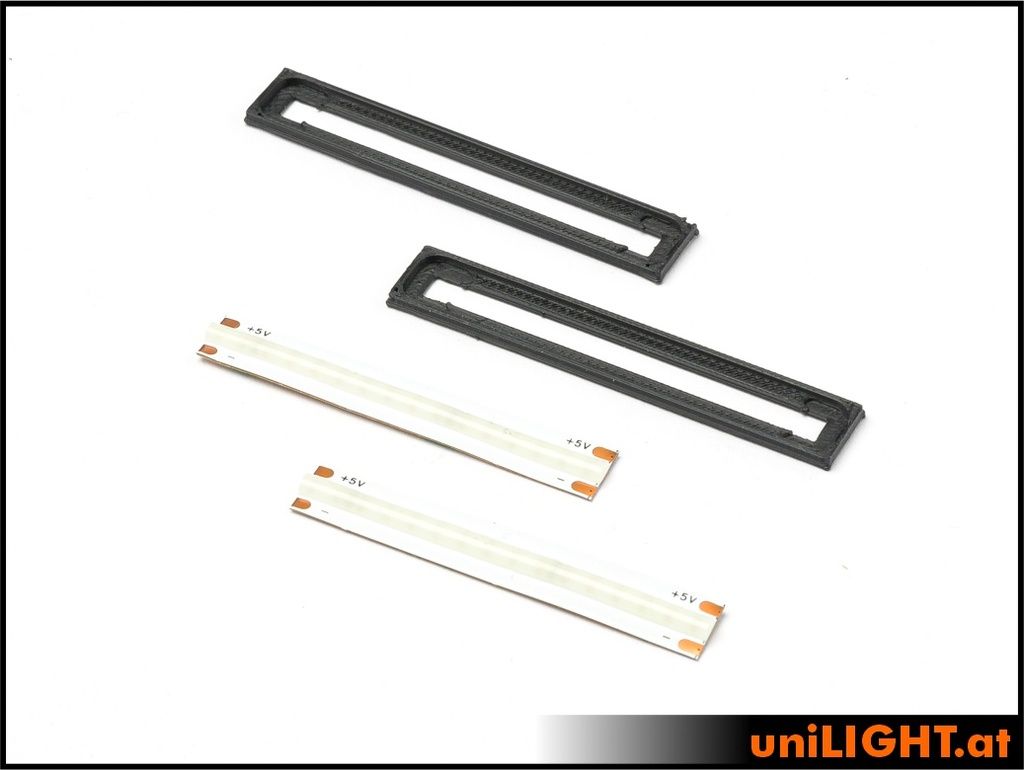

Formation lights on modern jets or uniform interior lighting in the cockpit? With our FORM Series lights, you can create very flat, evenly illuminated scale light strips that include frames.

The strips are available in the standard green, white, and blue for formation lights, as well as in red and orange for simple navigation lights, night flight lighting, and interior lighting. They are manufactured with frames in 50mm, 100mm, 150mm, 200mm, and 250mm sizes and are always packaged in sets of two.

The LED strips, built using COB technology and providing continuous illumination (without individual dots), are fully compatible with the uniLIGHT system and can be operated at 8V or 12V (with the included resistor). The strip itself is self-adhesive; the included matching frame is attached using, for example, silicone or epoxy. This results in a lighting unit that is only 10 mm wide and <2 mm high and can be mounted anywhere.

Electrical: 0.7W rated power,
Voltage: 8V, use additional resistor for 12V! 0.06A
Dimensions: 50x10x2mm
Weight: 1g (without cable)

Includes a 0.5m Teflon connection cable, 2 pieces with 2 frames.
