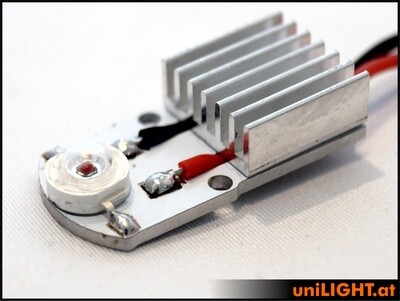

Very low-profile recessed light designed for installation behind existing glazing on thin wings or tail surfaces, or with a cap for a flush, compact installation on the interior fuselage wall of jets and helicopters. Waste heat is dissipated at the mounting level via a special aluminum core PCB, which is why these lights have a height of only 7 mm. The package includes an optional, self-adhesive heat sink and mounting screws. The heat sink can be mounted below or above the light, depending on available space, to ensure longer operating life

Technical Specifications:

• Electrical: 4W reference power, 8(12)V, 0.35A
• Beam angle: ~160°
• Luminous intensity: ~50 lumens RED
• Luminous intensity: ~80 lumens GREEN
• Luminous intensity: ~100 lumens WHITE
• Dimensions of flat light: 16x32x7mm
• Dimensions of auxiliary heat sink: 15x15x6mm
• Cap dimensions: 8x8x18mm
• Weight: 5g (without cable)

Package contents:

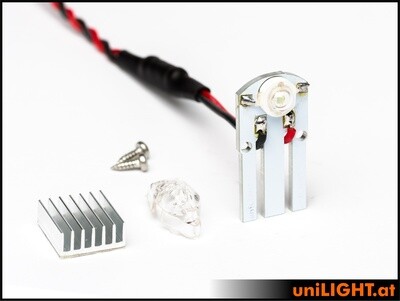

Includes 1m connection cable and pre-assembled series resistor for 2S and resistor for 3S, heat sink, 8mm cap, mounting screws.
