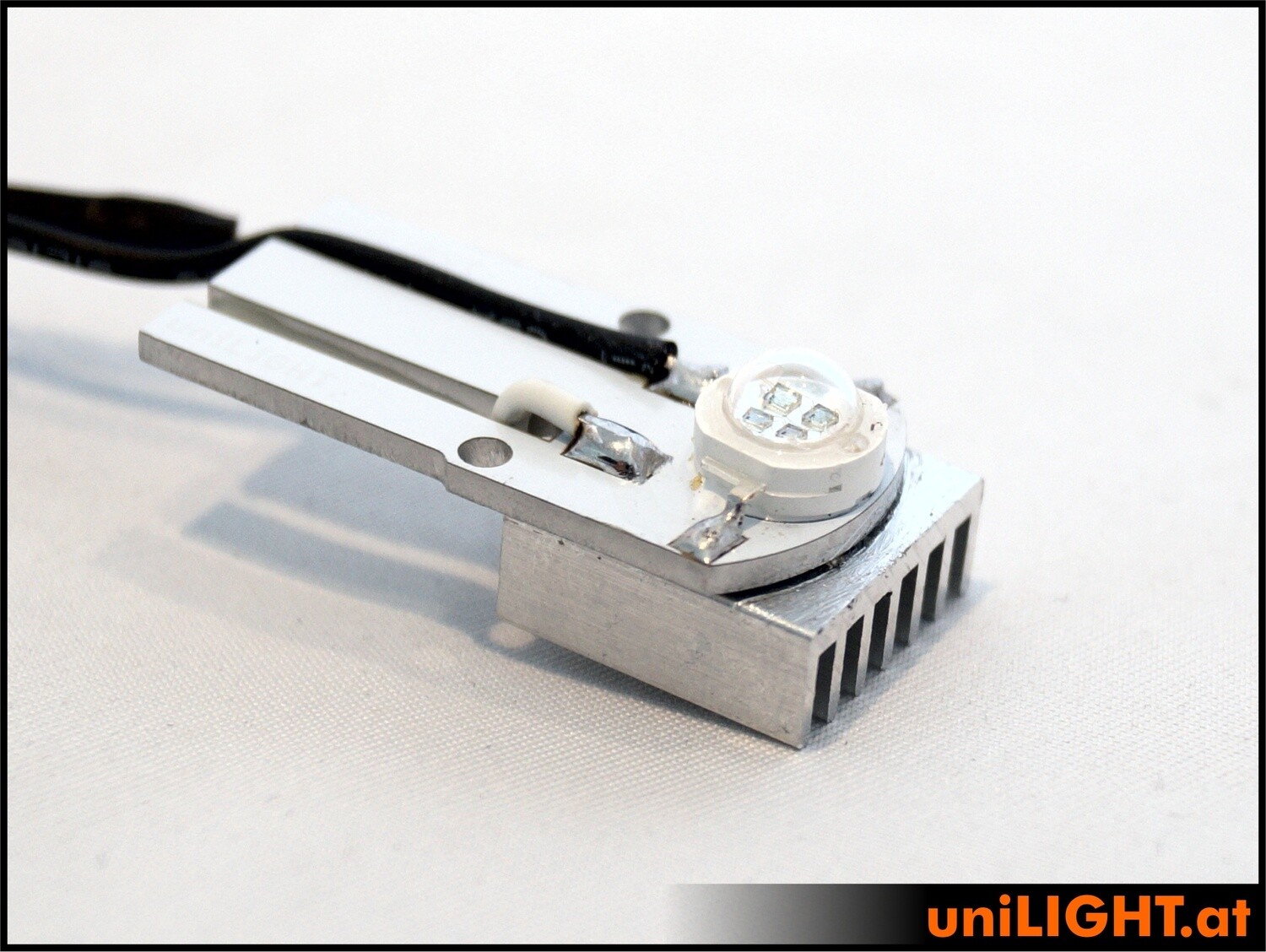

Extremely powerful and compact flat light designed for installation behind existing glass moldings on thin wings or tail surfaces. Features high-performance x2 technology with an integrated thermal fuse. The module is delivered fully wired on an aluminum core PCB, which is why these lights have a height of only 7/9 mm. The package includes two optional, self-adhesive heat sinks and mounting screws. The heat sinks can be mounted below and/or above the module, depending on available space, to ensure longer operating life.

Technical Specifications:

• Electrical: 2x4W reference power, 8(12)V, 0.7A
• Beam angle: ~160°
• Luminous intensity: ~200 lumens RED
• Luminous intensity: ~300 lumens GREEN
• Luminous intensity: ~400 lumens WHITE
• Dimensions of flat light: 16x32x9mm
• Dimensions of auxiliary heat sink: 15x15x6mm, 2 pieces
• Weight: 8g (without cable)

Included:

Includes 1m connection cable and pre-assembled series resistor for 2S and resistor for 3S, heat sink, 8mm cap, mounting screws.
