The North American F-86 was the only fighter in the Western world capable of competing with the Soviet MiG-15 during the Korean War—while its performance figures were slightly inferior, its flight characteristics were superior.

The kit:

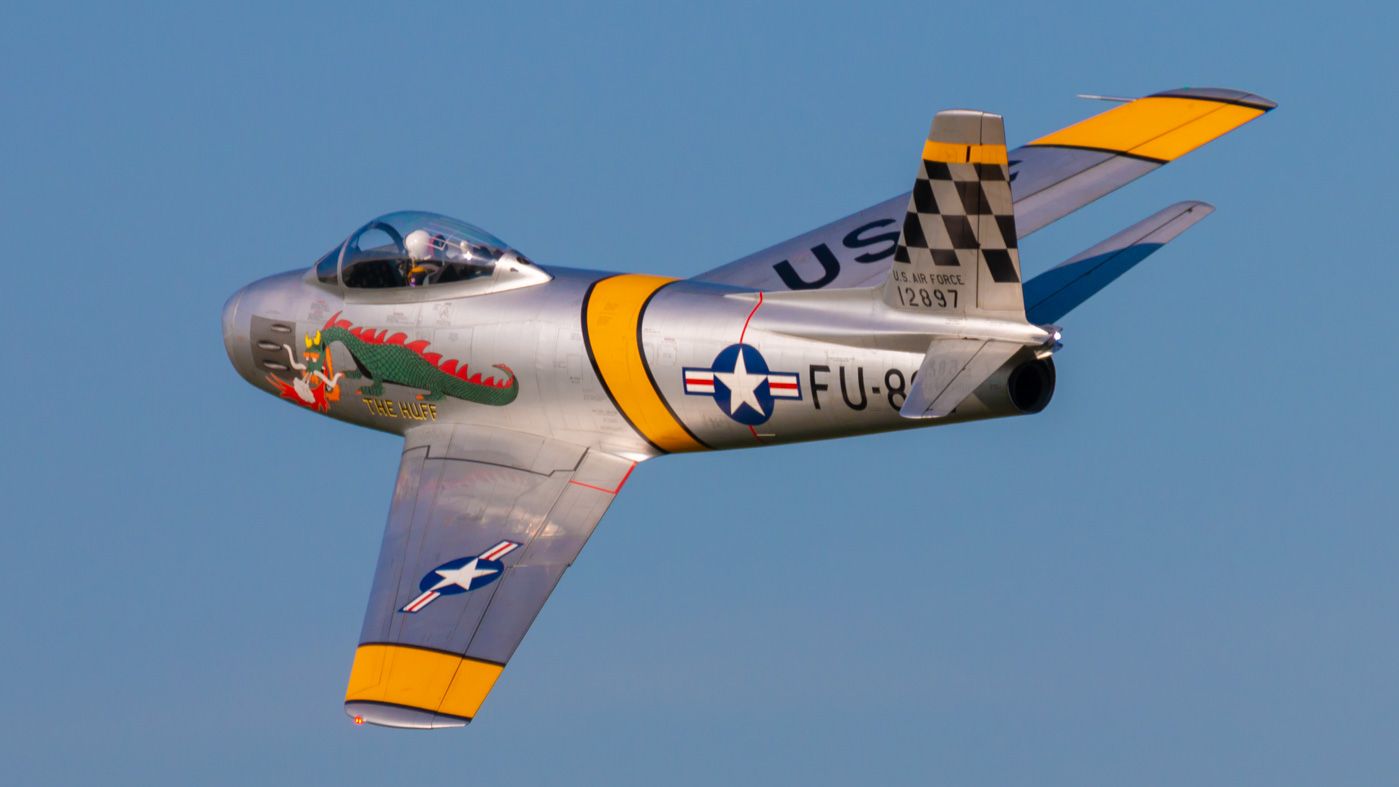

The F-86 from Tomahawk Design in 1:3.7 scale is an impressive large-scale model with outstanding flight characteristics. Even during the construction of the original model, special emphasis was placed on a "scale" appearance. That is why the original model was sheathed with sheet metal and all rivets were applied in accordance with the original. This F-86 kit is manufactured using a full FRP/CFRP (Herex) sandwich construction. High-quality accessories, such as landing gear (including electric), double-walled thrust tube, FRP fuel tank, and much more are available separately.

Features

• Scale replica of the North American F-86 in 1:3.7 scale
• Many scale details
• Fully GRP/CFRP (Herex) sandwich construction
• Various scale accessories available

Scope of delivery:

• FRP parts for the fuselage (nose with front and rear sections), wings (including ailerons, slats, and doors), tail section including rudder, tailplane cover, air duct, and canopy frame. (19 parts total)
• Tail assembly (HLW rocker tail fully assembled)
• Most of the frames installed in the fuselage
• Wing assembly installed
• Servo mounts installed
• Main landing gear mount installed
• Canopy
• CNC-milled parts set (wood and FRP parts)
• Small parts required for assembly, such as screws, nuts, bolts, etc.

Required for operation:

• Turbine
• Thrust tube
• Tanks
• Landing gear (electric)
• Control linkage set for elevator No. 11134
• Linkage set for remaining control surfaces and landing flaps No. 11135
• Linkage set for landing gear doors, No. 11136
• Canopy latch, set No. 90212
• Wing protection bags (required for shipping by us)
• RC system

Technical data:
