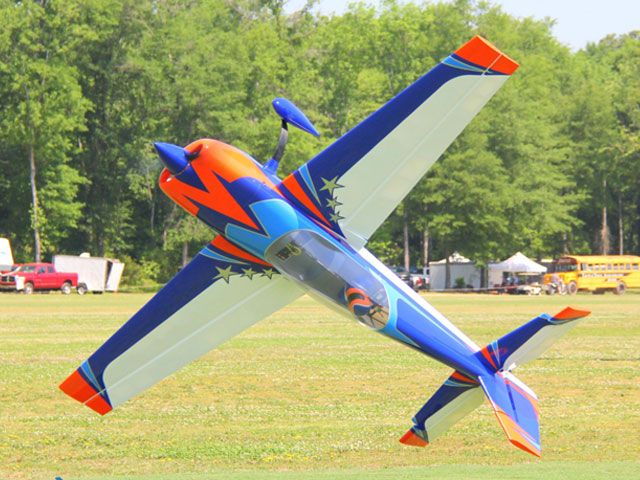

The Extreme Flight 104 "Extra 300" was released in 2012 and has become an icon in the Global RC aerobatics community. In 2018, Extreme Flight launched the eagerly awaited, redesigned, and upgraded V2.
New to the V3 are the clever quick-assembly systems for the main wings, canopy, and horizontal stabilizer. This massively reduces assembly time at the airfield. The sophisticated CNC-milled aluminum systems prevent the wings from becoming "unsecured," thereby increasing the certainty that everything has been assembled correctly...and for those who have ever forgotten the locking screws at home...we can reassure you that this can no longer happen...everything is securely mounted in the aircraft!
Thanks to the latest design techniques and the use of composite materials, Extremeflight has been able to drastically reduce the weight while maintaining strength and stiffness. A revised wing and aileron shape provide a very high roll rate, which can now keep up with our Slick 580. The low-speed and high-alpha 3D stability has been further improved, and the airframe has been reinforced to handle the most brutal XA routines. The Extra features a pre-assembled canopy with a scale instrument panel and Pilot X figure, ready to fly right out of the box!
Aerobatics maestro Jim Bourke has granted us the license to reproduce his fantastic color scheme from his competition/airshow Extra, and the graphic design assistant has surprised us with a second stunning scheme that highlights the Extra’s beautiful lines. These two schemes are standard Oracover schemes (not printed). If you’re looking for the most powerful and competitive 120cc aircraft design available today, then you’ve come to the right place!
With the new power sets from Scorpion Power Systems, you can also push this giant aircraft to its limits electrically. Enormous power paired with precise throttle response and reasonable flight times of up to 8 minutes (3D)—these are the specs you’ve been searching for. This makes classic aerobatics or even extreme 3D flying simply fun.
Technical Specifications
Wingspan: 2640 mm
Weight: approx. 13 kg
Recommended Motor: 120cc
Control: H, S, Q, M
Manufacturer: Extremeflight-RC
Fuselage: Wood
Wings: Wood/ribbed
Version: ARF - ALMOST READY TO FLY
Recommended Battery:
Propulsion Type: Combustion Engine
What's Included
- Extremeflight-RC Extra 300 V3 104" Blue/Orange ARF
- Small parts
Recommended Electric Powertrain
- Scorpion A-7441-180KV Brushless Outrunner Electric Motor
- Scorpion Tribunus II+ 14-200A 14S(61V) SBEC 20A Brushless ESC
- Falcon Carbon Electric 28x12-inch 2-blade propeller
- Scorpion A-Series Standoff Set 65-80mm (100cc-120cc)
- 5" carbon spinner
Recommended Gasoline Engine
- 2-stroke engine with ~120cc
- Exhaust system, e.g., MTW
- Falcon propeller
- Powerbox Sparkswitch
- 5" carbon spinner
Powerbox system
- Powerbox Pioneer
Servo Recommendation 1
- 3x KST X20-7512 V8.0 20mm 82kg 4-pole brushless servo, for elevator and
aileron - 4x KST X20-3005 V8.0 20mm 32kg 4-pole brushless servo, for rudder
- 1x KST DS1509MG digital "low-profile" servo (Throttle servo for combustion engines)
Servo Recommendation 2
- 7x KST BLS825 V8.0 HV Brushless Servo Soft Start & Programmable 20mm
35kg - 1x KST DS1509MG Digital "Low-Profile" Servo (Throttle servo for combustion engines)
Servo arms
- 4x 1.5" servo arms for ailerons
- 2x 2" servo arms for elevator
- 1x 4" dual servo arm or 1x 1.75" - 2" for aileron
- 1x 1.25" servo arm for throttle (on combustion engines)
Servo cable extensions
- 2x 20
cm - 3x 80 cm
