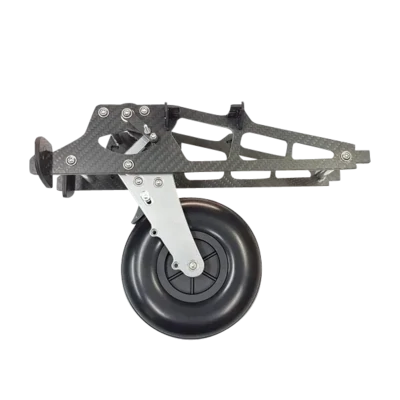

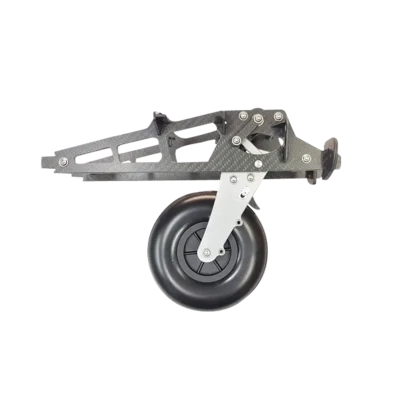

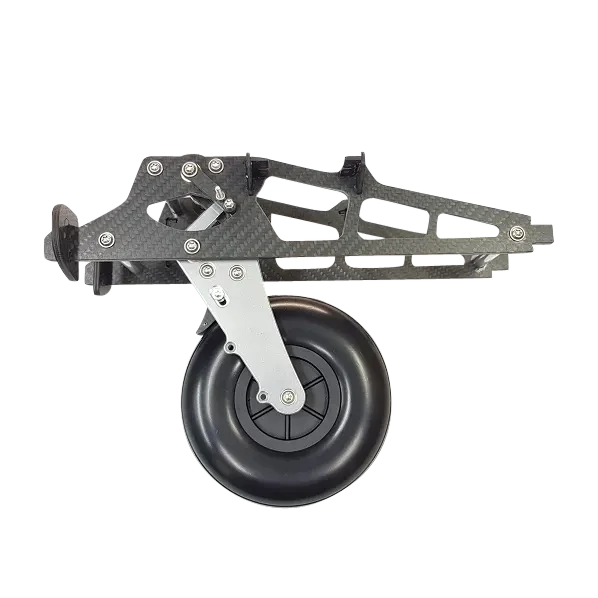

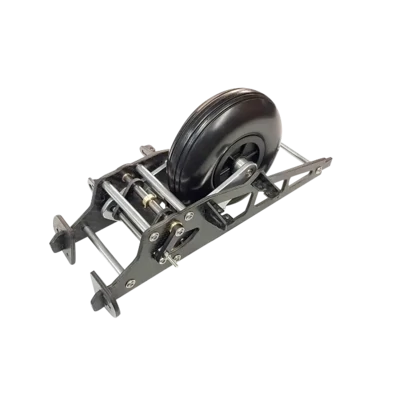

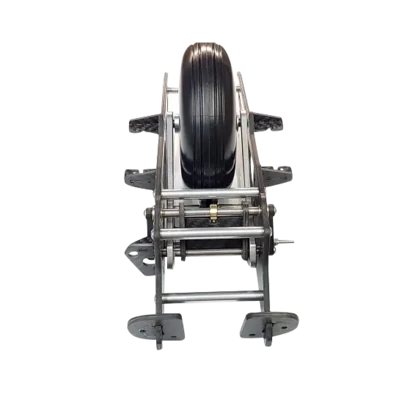

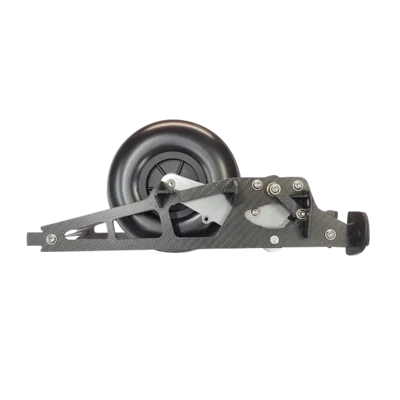

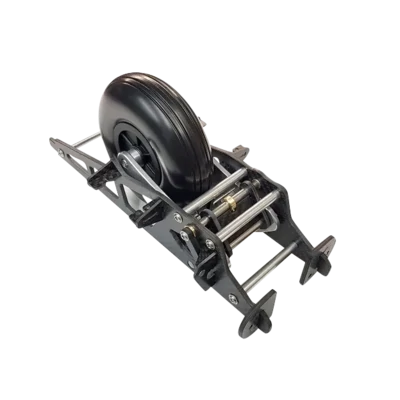

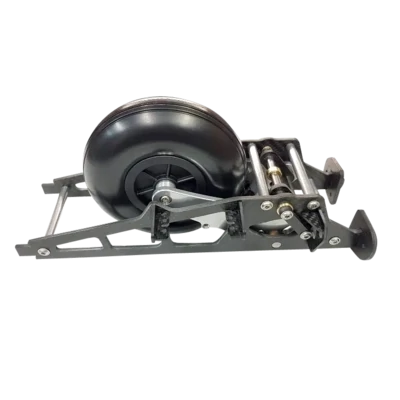

In line with the trend toward lightweight and sturdy landing gear, we have converted our entire range of landing gear to retractable designs consisting of CFRP side sections and aluminum struts. All components have been redesigned for low weight while maintaining a sturdy construction.

The side panels of the 1:2.5 scale landing gear with 127 mm wheels are made of 4.0 mm CFRP. All milled edges feature a 45-degree chamfer, ensuring these parts pose no risk of injury and feel very comfortable to the touch. Servo wings for a standard-size servo are installed as standard on the left and right sides of the side sections. This eliminates the need to purchase additional servo mounts, and the servos for the wheel drive and the brake servo can be installed directly. Mounting is intended to be done with M3 screws; the holes matching the servo are already present in the servo mounts.

Weight-optimized and aesthetically pleasing design thanks to CNC-machined geometry; due to the mechanical design, the wheel is firmly locked in the extended/retracted position. This prevents the wheel from extending due to centrifugal forces, for example during a loop. In the undamped version, the wheel is mounted in the glider between two frames

- In the damped version, the attachment in the glider is made to a main frame; the movable part of the landing gear is guided laterally at the rear only by a thin frame

- The installation height of the single-wheel landing gear in the fuselage is adjustable

- the moving parts are mounted in brass bushings

The basic configuration consists of:

- the two side sections made of 4.0 mm carbon

- The two wheel arms made of 5.0 mm aluminum (high-gloss polished)

- The required spacer bolts

- servo mounts for two servos

- the swivel mechanism, including drive lever

- the necessary stainless steel screws

- 1 solid rubber wheel, 127 mm, from FEMA (the FEMA wheel is equipped with ball bearings)

- Two front flange plates for mounting the landing gear in the main spar

(these allow the landing gear to move backward/upward for rubber swing mounts/suspension)

Weight: 645 grams

The landing gear sets have a modular design and can therefore be customized.
