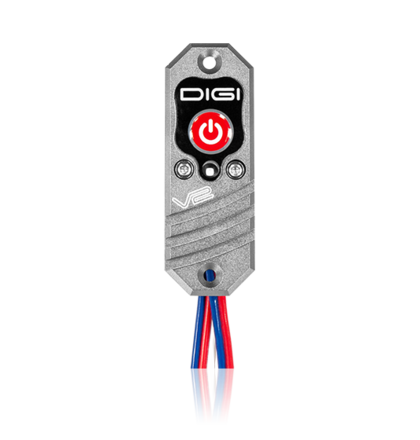

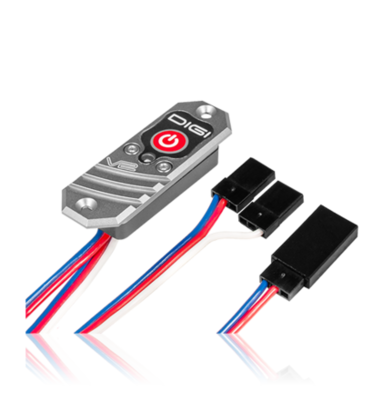

The PowerBox DigiSwitch V2 is the second generation of the world-renowned PowerBox DigiSwitch.

Features

• High-performance electronic switch
• Very lightweight and compact design
• Regulated output voltage
• Adjustable output voltage: 6.0 V, 7.0 V, 7.6 V, or unregulated
• RGB LED voltage indicator for the battery
• Telemetry support for the CORE
• 4 battery types are supported: 2s LiPo, 2s LiIon, 2s LiFePo, and 5s NiMH
• Controller monitoring
• Suppression of servo reverse currents

Product Description

The PowerBox DigiSwitch V2 is the second generation of the world-renowned PowerBox DigiSwitch. Thanks to its compact design and versatile applications, the PowerBox DigiSwitch has been the standard in small to medium-sized models for over 15 years.

Thanks to the use of state-of-the-art components, the DigiSwitch V2 has been reduced in size by a full 20%.

The use of a high-quality, milled, and anodized aluminum housing has significantly increased the effective cooling capacity—the PowerBox DigiSwitch V2 can handle approximately 20% more continuous current! The short-term current capacity has even doubled—for several seconds, the DigiSwitch V2 can handle over 10 A!

The DigiSwitch V2 offers four selectable output voltages—for standard servos, the voltage can be regulated to 6.0 V; for HV servos, regulated 7.0 V, 7.6 V, or an unregulated option are available.

You can choose between four different battery types for power: LiPo, LiIon, LiFePo, and NiMh. Ultra-bright RGB LEDs are used to display battery voltage, signaling the charge status with different colors.

For CORE customers, there’s an extra special feature: the battery and ESC voltages can be displayed directly on the transmitter via telemetry!

Technical Specifications
