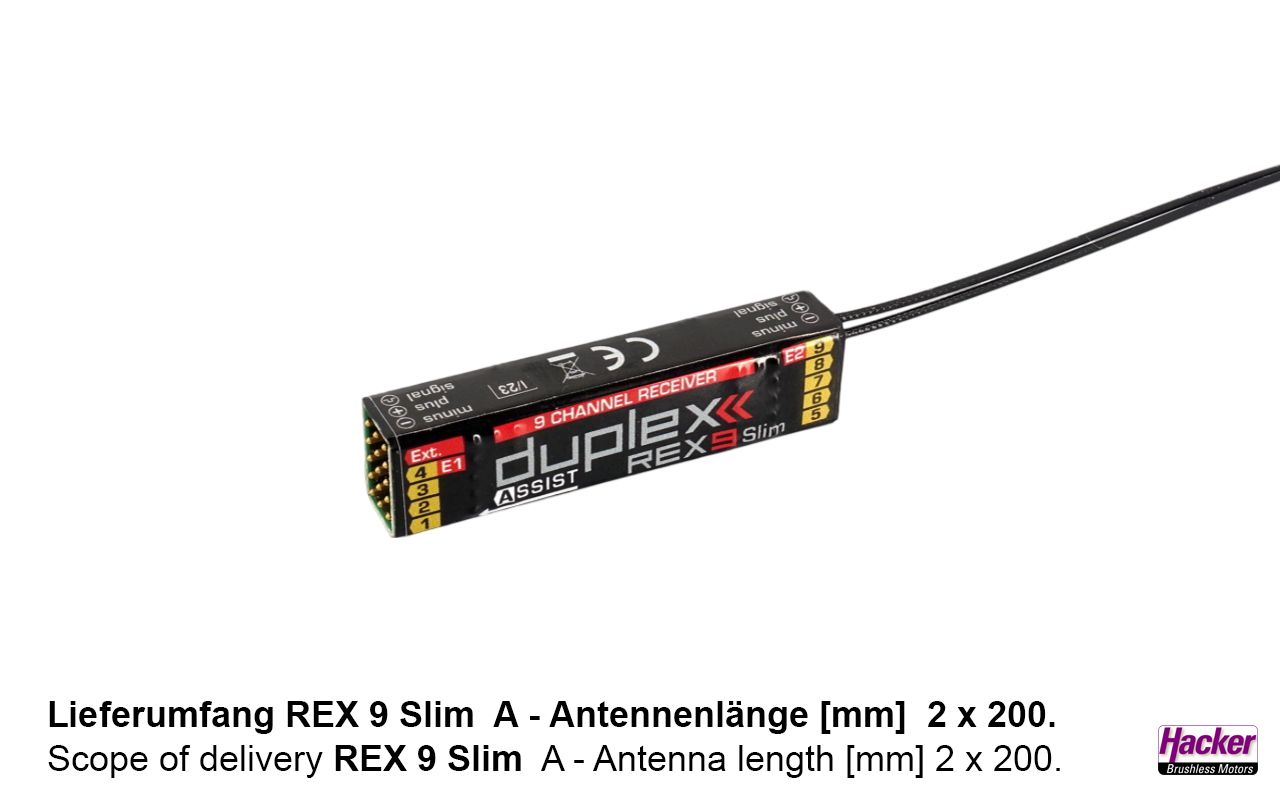

DUPLEX 2.4EX REX 9 Slim Assist Receiver

Product Description and Features

A completely new type of receiver in the REX SLIM series with 9 servo slots. The receivers are specifically designed for models with very narrow fuselages (e.g., F3J, F5J, etc.).

The REX Slim receivers offer all the features of the well-known REX Assist receiver series with a minimal footprint.

- Supported protocols: PPM, EX BUS, EX Telemetry, S
.Bus - Freely programmable channel assignment of the slots - Compact
dimensions
- Full
range -
Programmable wirelessly via the device overview of the Duplex DC/DS transmitters - Programmable via the JETIBOX

- Integrated ASSIST stabilization system with damping, heading hold, trainer
mode…- Additional, integrated telemetry: Rotenor on 3 axes, G-Force, Temperature
- For fixed-wing models
and multicopters - Can
output a stabilized EX Bus signal for e.g., CentralBoxes - Naturally also suitable
for delta and flying wing models - Variometer function as an optional expansion via the JETI SW Shop (see "Links" tab)

Technical Specifications

• Dimensions: 15 x 12.5 x 60 mm
• Weight: 12 g
• Supply voltage: 3.5 – 8.4 V
• Telemetry: Yes
• ASSIST stabilization: Yes, with REX7 Slim Assist and REX 9 Slim Assist
• Servo slots: 9
• Antenna length: 2x 200 mm

Included

1 DUPLEX 2.4EX receiver REX 9 Slim Assist
