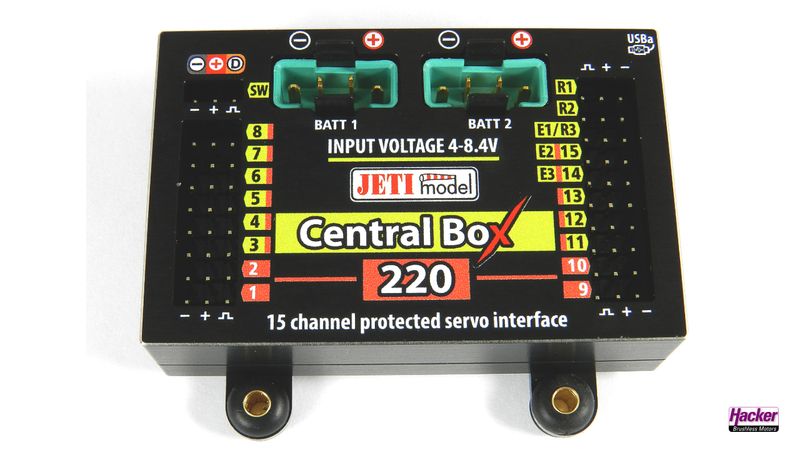

The Central Box 220 is the successor to the popular Central Box 200. Designed specifically for use with high-performance, power-hungry servos, the Central Box 220 features an aluminum housing and reinforced overcurrent protection for the servo slots. The Central Box 220 offers true battery redundancy, DITEX servo telemetry, JETI EX telemetry, and up to three receiver inputs (2x 2.4 GHz and 1x 900 MHz) for complete power and RF signal redundancy.

Configuration via JETI Duplex DS/DC Transmitter

With JETI Duplex DC/DS transmitters, the full potential of the Central Box 220 can be fully utilized. Using the device overview of the JETI Duplex DS/DC transmitter, the entire configuration of the servo outputs, DITEX servo and JETI EX telemetry, function assignment, etc., can be easily performed.

Power On/Off Procedure

The Central Box 220 is turned on and off using the included RC switch via the DC/DS transmitter.

Recommended receivers

Two compatible RSat2 receivers are included in the package. Optionally, a REX Assist receiver can be used together with an RSAT2, resulting in a Central Box with gyro stabilization.

Features

• Configurable servo outputs
• Fused servo outputs (for 11 servos with ~30 kg of force and 4x ~50 kg)
• Battery connections: 2x MPX connector system

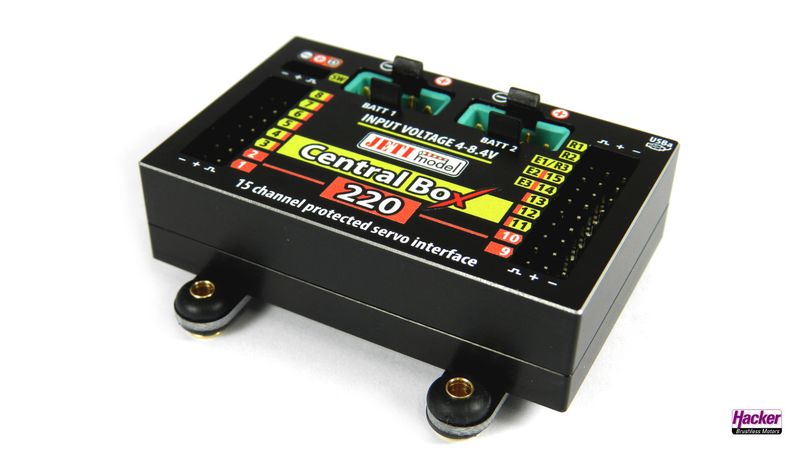

• Robust aluminum housing for additional cooling and protection
• Firmware can be updated via JETI USB adapter and JETI Studio
• Wirelessly programmable via the device overview of the DC/DS transmitters

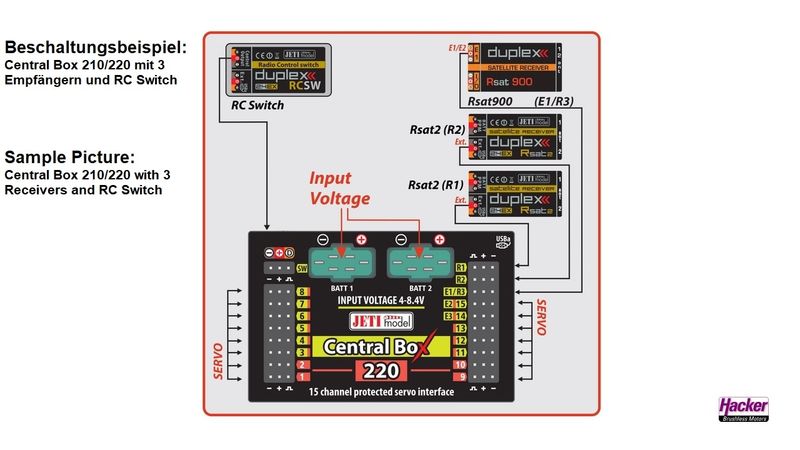

• Up to 3 independent receiver inputs (R1, R2, E1/R3)
• Up to 15 servo slots (compatible with DITEX servo telemetry)
• Up to 3 telemetry sensor inputs (E1/R3, E2/15, E3/14)
• Input for included RC switch

Package Contents

1 JETI Duplex 2.4EX Central Box 220, 1 RC switch, 2 JETI Duplex 2.4EX RSat2 receivers, and 3 patch cables.
