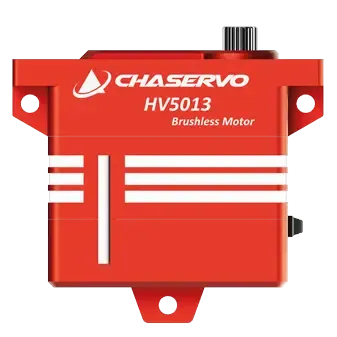

The HV5013 is the ultimate servo for anyone looking for impressive power and performance. With an incredible holding torque of 60 kg·cm at 8.4V, this servo sets new standards for strength. It is one of the most powerful servos on the market and can effortlessly withstand even extreme loads.
With a stall torque of up to 51 kg·cm, the HV5013 demonstrates its exceptional robustness. No matter how intense the stress, this servo won’t be easily thrown off balance. It is the perfect choice for demanding applications where high load capacity is required.
But the HV5013 doesn’t just impress with its impressive power. It also offers precise and reliable performance and the high-quality Chaservo craftsmanship you’ve come to expect.
| Servo Data | |
|---|---|
| Brand | Chaservo |
| Dimensions | 40.5 x 17 x 40 mm |
| Weight | 68 g |
| Nominal voltage | DC 7.4V |
| Voltage range | DC 6.0 – 8.4V |
| Gear ratio | 25T |
| Position sensor | Potentiometer |
| Motor | 4-pole brushless |
| Operating frequency | 1520 µs / 333 Hz |
| Pulse width | 900 µs – 2100 µs |
| Programmable | Yes |
| Material | |
|---|---|
| Housing material | Aluminum |
| Gear material | Metal gear |
| Holding torque | |
|---|---|
| Holding torque @ 6.0V | 40.0 kg·cm |
| Holding torque @ 7.4V | 50.0 kg·cm |
| Holding Torque @ 8.4V | 60.0 kg·cm |
| Output Torque | |
|---|---|
| Output Torque @ 6.0V | 34.0 kg·cm |
| Output Torque @ 7.4V | 42.5 kg·cm |
| Output Torque @ 8.4V | 51.0 kg·cm |
| No-load Speed | |
|---|---|
| No-load Speed @ 6.0V | 0.16 sec/60° |
| No-load Speed @ 7.4V | 0.13 sec/60° |
| No-load Speed @ 8.4V | 0.11 sec/60° |
| Max. Current | |
|---|---|
| Max. Current @ 6.0V | 8.5 A |
| Max. current @ 7.4V | 10.3 A |
| Max. current @ 8.4V | 11.8 A |
