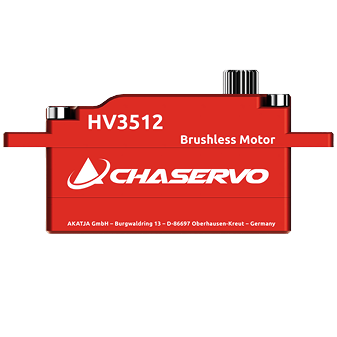

The Chaservo HV3512 Low Profile Servo is a high-performance servo in the 20mm class. It stands out for its low profile of just 18.7 mm and its light weight of only 55 g. This makes it an ideal choice for models where weight and size are critical factors.
The servo is made from high-quality materials and features a robust design. The hardened steel gearset is wear-resistant and ensures a long service life. The brushless motor delivers high torque and precision.
The Chaservo HV3512 Low Profile Servo offers a holding torque of up to 400 Ncm at 8.4 V. This allows even heavy loads to be moved effortlessly. The rotation speed is 0.08 seconds at 8.4 V.

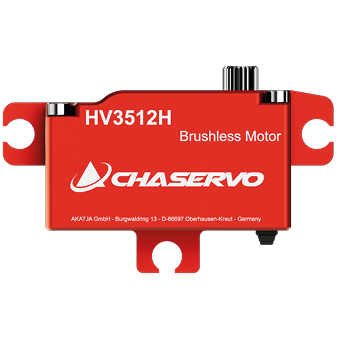

The servo is available in two different mounting configurations. It can be mounted either upright or horizontally. This offers you maximum flexibility during installation.
| Servo Data | |
|---|---|
| Model | HV3512H or HV3512 |
| Brand | Chaservo |
| Dimensions | 40.5 x 20 x 23.1 mm |
| Weight | 56 g |
| Nominal voltage | DC 7.4V |
| Voltage range | DC 4.0 – 9.0V |
| Gear teeth | 25T, 6 mm |
| Ball Bearing | 2 x ball bearings |
| Position sensor | Potentiometer |
| Motor | 4-pole brushless |
| Operating frequency | 1520 µs / 333 Hz |
| Pulse width | 500 μs – 2500 μs |
| Programmable | Yes |
| Material | |
|---|---|
| Housing material | Aluminum |
| Gear material | Metal gear |
| Holding torque | |
|---|---|
| Holding torque @ 6.0V | 30.0 kg·cm |
| Holding Torque @ 7.4V | 35.0 kg·cm |
| Holding Torque @ 8.4V | 40.0 kg·cm |
| Output Torque | |
|---|---|
| Output Torque @ 6.0V | 26.7 kg·cm |
| Output Torque @ 7.4V | 30.2 kg·cm |
| Output Torque @ 8.4V | 35.0 kg·cm |
| No-load Speed | |
|---|---|
| No-load Speed @ 6.0V | 0.14 sec/60° |
| No-load Speed @ 7.4V | 0.12 sec/60° |
| No-load Speed @ 8.4V | 0.11 sec/60° |
| Max. Current | |
|---|---|
| Max. Current @ 6.0V | 4.0 A |
| Max. current @ 7.4V | 4.8 A |
| Max. Current @ 8.4V | 5.8 A |
