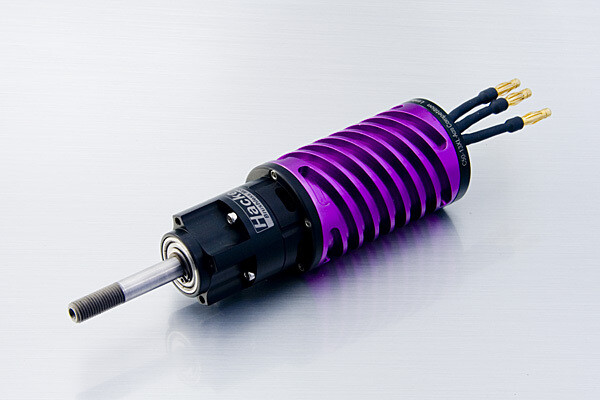

Based on the experience gained over the past four years and countless test flights conducted by our pilots in Europe and the U.S., we are pleased to present a masterpiece of technical precision and exceptional performance.
Paired with our MasterSpin 99-Opto speed controller, which incorporates the new F3A brake, this combination guarantees perfect "constant speed."
|
C50-15XL Acro Comp. |
||
|
Item No.: |
37798600 |
|
|
Prop |
XOAR 22x12 |
APC-E 20x13 |
|
V /LiPo |
37V = 10S LiPo |
44V = 12S LiPo |
|
Amp. |
53 A |
61 A |
|
Power |
1961 W |
2684 W |
|
RPM |
5780 |
6770 |
|
Controller |
M Spin 99 |
M Spin 99 |
These motors are custom-built to your specifications. Each set comes complete with connectors, and every motor undergoes an extensive test cycle under load. Perfect preparation for perfect flights.
Included:
| Technical Specifications | |
| Number of poles | 2 |
| Turns | 15 |
| No-load current (I0) at 8.4 V [A] | 1.1 |
| Internal resistance (Ri) [Ohms] | 0.028 0.028 |
| Gear reduction ratio | 6.7 : 1 |
| Recommended timing [°] | 0 - 5 |
| Recommended clock frequency [kHz] | 8 |
| Recommended controller [A] (depending on setup) | 60 - 90 |
| No-load speed per volt (kv) without gearbox | 1083 |

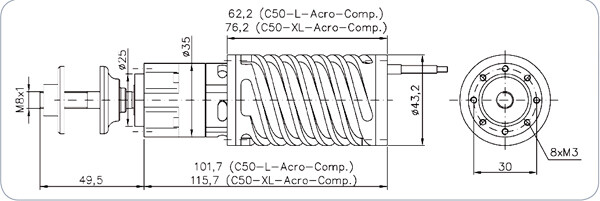

| Dimensions and weights | |
| Weight [g] | 523 |
| Length [mm] | 115.7 |
| Outer diameter [mm] | 43.2 |
| Shaft diameter [mm] | 8 |
| Scope of delivery / Features | |
| Shaft coupler | Yes |
| Mounting bracket | No |
| Gold plug mm (soldered) | 4 |
| Backmount compatible | No |
| Front mountable | Yes |
