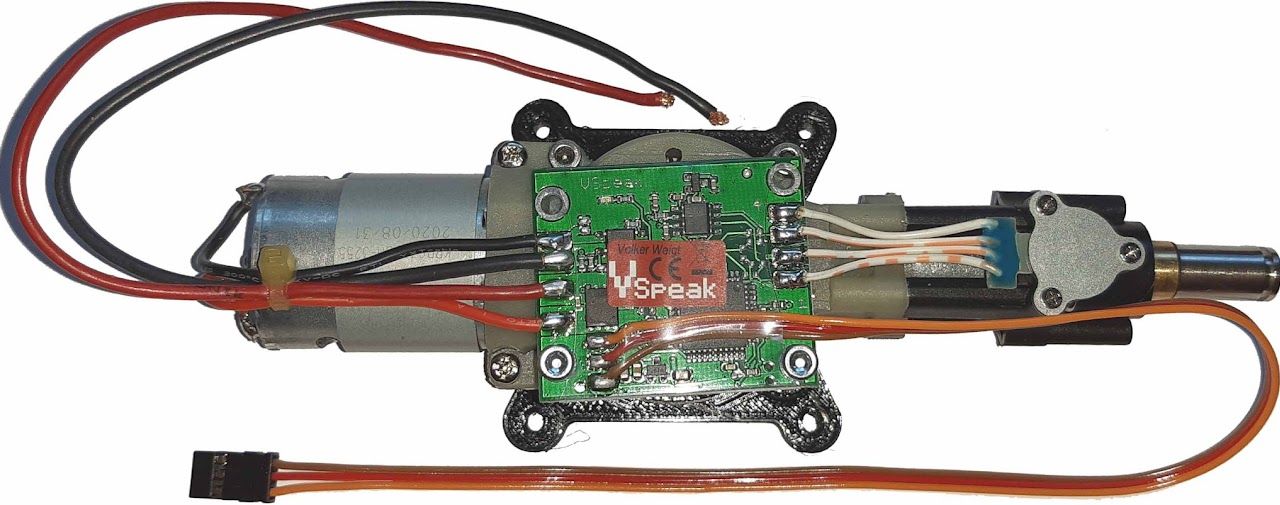

Auto-Air-fill offers several operating modes:

• • Autonomous automatic mode (remote control independent)
  • Automatic mode via servo port (requires a servo output programmed with a 3-position switch)
  • Automatic mode via telemetry port (only with Jeti and PowerBox Core: telemetry data is transmitted)

The compressor can be powered by a 3S LiPo with 1000mAh.

To save weight, the compressor’s power supply in turbine models can also be provided by the “larger” turbine battery; any potential separation present there between the receiver circuit and the turbine (e.g., JetCat, HORNET, …) is maintained by the potential separation between the control section and the load circuit, which is also present in the onboard compressor. Voltage monitoring of the battery can be performed here via the ECU telemetry; our ECU converters for the aforementioned turbines are also galvanically isolated, ensuring continuous potential separation to prevent interference from the turbine affecting the receiver circuit.

Detailed information on the VSpeak Auto-Air-fill can be found in the comprehensive manual.
