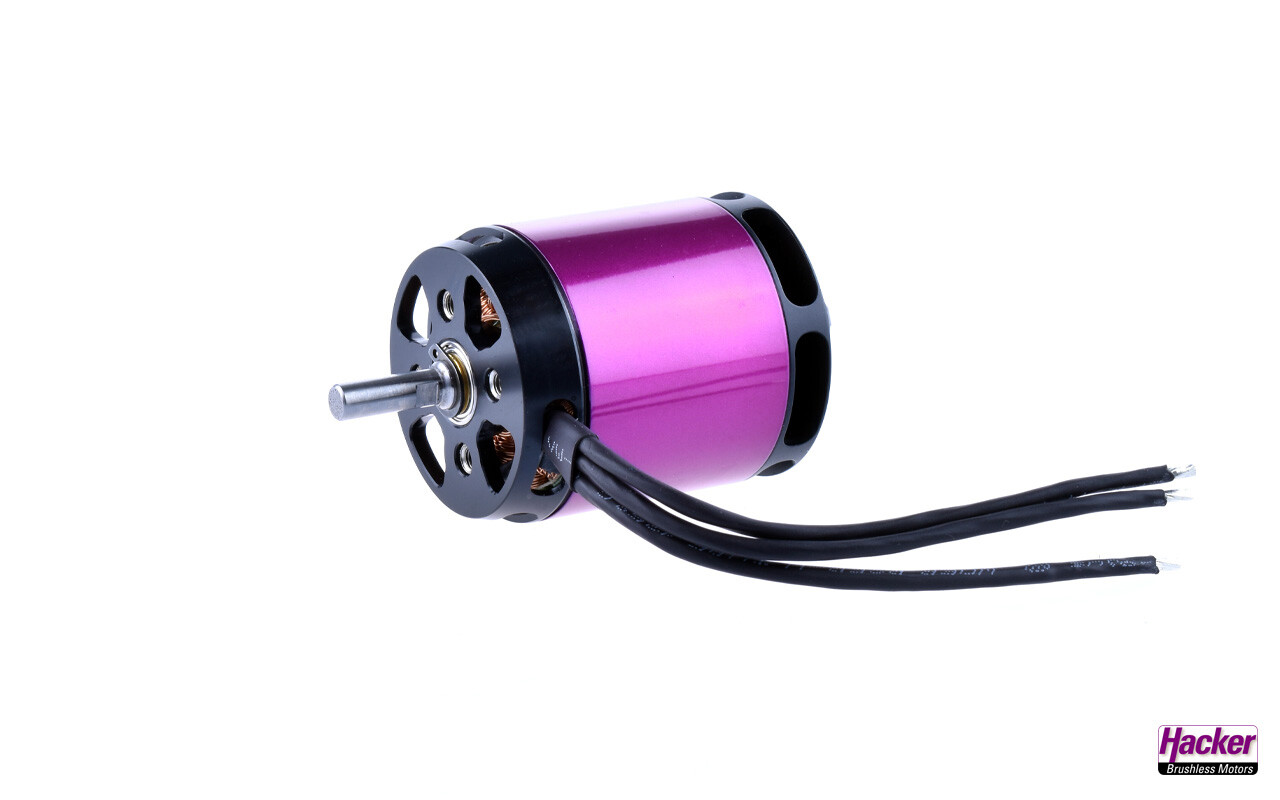

The Hacker A50-V4 motors are 14-pole external rotor motors whose efficiency has been further improved through continuous development. The A50-V4 series features a new rear bearing shield with a fan, which enables even more efficient internal cooling of the entire motor. The various lengths and windings allow for precise adaptation to the model and enable a power range up to 2000W.
The main application range is for sport and scale models from 2.2 kg to 6.0 kg, and for aerobatic and 3D models up to 4.0 kg takeoff weight. For electric and scale gliders from 7.0 kg to approx. 16.0 kg. The A50-V4 also fits perfectly in 500/550 and 600-class helicopter models.
This weight-optimized high-end motor, weighing just 445g, fits perfectly in motorized models up to 4 kg or gliders up to 16 kg.
Also ideal in combination with the FES Ex UNI8 system.
1x A50-16 L V4 kv265, accessories for front and rear mount installation, propeller spinner, and instructions.
| A50-16 L V4 kv265 | ||||
|---|---|---|---|---|
| Item No.: 15726842 | ||||
| Propeller | RFM 17x10 | RFM 16x10 | Xoar 18x12 | Xoar 16x12 |
| LiPo | 8S | 10S | 8S | 8S |
| Voltage [V] | 30 | 37.5 | 30 | 30 |
| Current [A] | 55 | 65 | 57 | 49 |
| Power [W] | 1650 | 2437 | 1731 | 1465 |
| RPM | 6906 | 8577 | 6481 | 7270 |
| Controller [A] | 70–80 | 70–80 | 70–80 | 70–80 |
| Timing [°] | 20–25 | 20–25 | 20–25 | 20–25 |
| Technical Specifications | |
| Max. power in watts (max. 15 sec) | 1650 |
| Number of poles | 14 |
| Turns | 16 |
| No-load current (I0) at 8.4 V [A] | 0.95 |
| Internal resistance (Ri) [Ohm] | 0.031 |
| Recommended timing [°] | 20–25 |
| Recommended clock frequency [kHz] | 8 |
| Recommended controller [A] (depending on setup) | 70–90 |
| No-load speed per volt (kv) | 265 |
| Dimensions and weights | |
| Weight [g] | 445 |
| Length [mm] | 62.2 |
| Outer diameter [mm] | 48.7 |
| Shaft diameter [mm] | 6 |
| Scope of delivery / Features | |
| Shaft coupler | Yes |
| Mounting bracket | Yes |
| Gold plug mm (recommended) | 4 |
| Backmount compatible | Yes |
| Front mount compatible | Yes |
