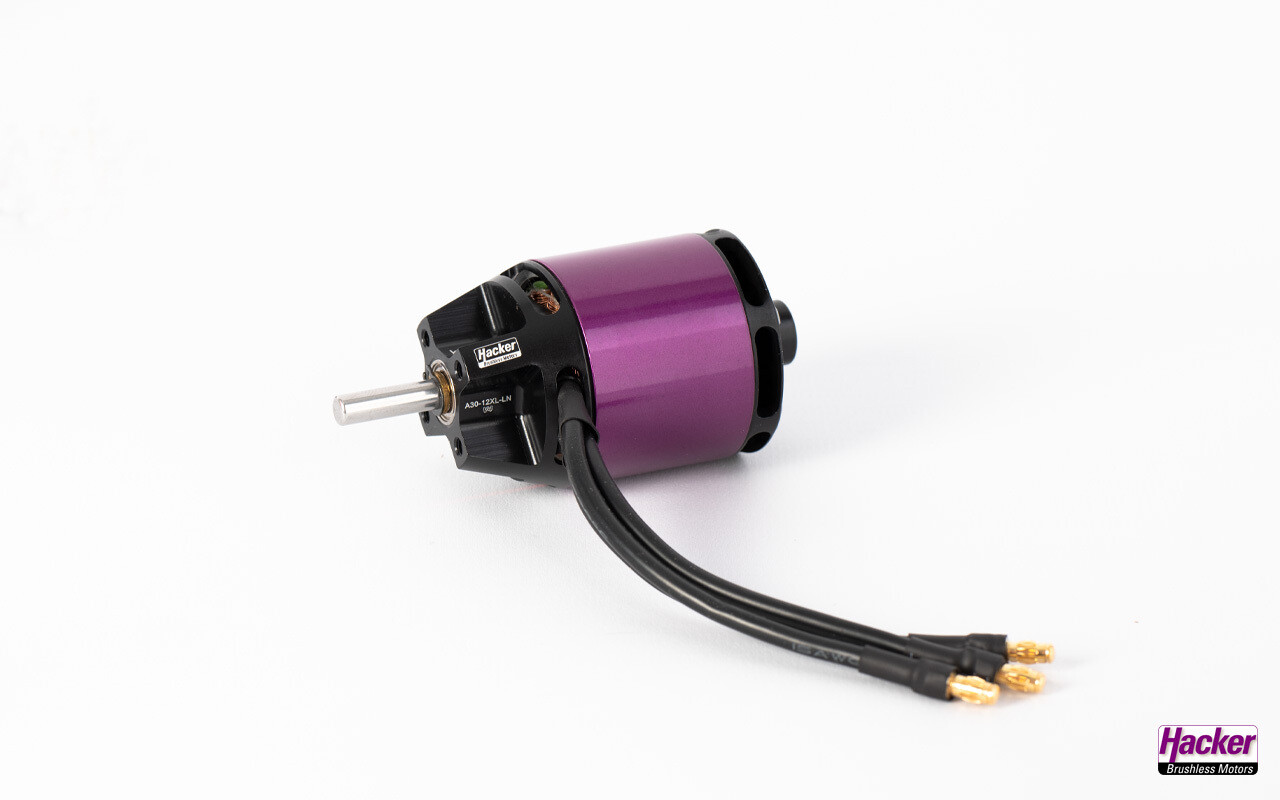

The A30-LN series was developed specifically for glider models with narrow fuselages. Since the fuselage becomes significantly thicker just a few centimeters beyond the motor bulkhead, a compact, high-torque external rotor motor with direct drive can be used here. Thanks to its high efficiency and built-in fan, the motor stays cool for a long time even in tight, poorly ventilated fuselages.
This weight-optimized high-end motor, weighing just 190g, is popular in glider models up to 3.2kg. Of course, the A30-12 XL-LN V4 kv700 also fits perfectly in motorized and sport aircraft up to approx. 1.8kg takeoff weight when space is tight under the cowl.
1x A30-12 XL-LN V4 kv700 and instructions.
| A30-12 XL-LN V4 kv700 | ||
|---|---|---|
| Item No.: 10109256 | ||
| Propeller | Xoar 14x7 | ACC 12x10 |
| LiPo | 4S | 4S |
| Voltage [V] | 14.8 | 14.8 |
| Current [A] | 65 | 58 |
| Power [W] | 962 | 858 |
| RPM | 8571 | 8864 |
| Controller [A] | 70–80 | 70–80 |
| Timing [°] | 20–25 | 20–25 |
| Technical Specifications | |
| Max. power in watts (max. 15 sec) | 650 |
| Number of poles | 14 |
| Turns | 12 |
| No-load current (I0) at 8.4 V [A] | 1.5 |
| Internal resistance (Ri) [ohms] | 0.034 |
| Recommended timing [°] | 20–25 |
| Recommended clock frequency [kHz] | 8 |
| Recommended controller [A] (depending on setup) | 70 |
| No-load speed per volt (kv) | 700 |
| Dimensions and weights | |
| Weight [g] | 190 |
| Length [mm] | 55 |
| Outer diameter [mm] | 37.2 |
| Shaft diameter [mm] | 5 |
| Scope of delivery / Features | |
| Shaft coupler | No |
| Mounting bracket | No |
| Gold plug mm (soldered) | 3.5 |
| Backmount compatible | No |
| Front mountable | Yes |
