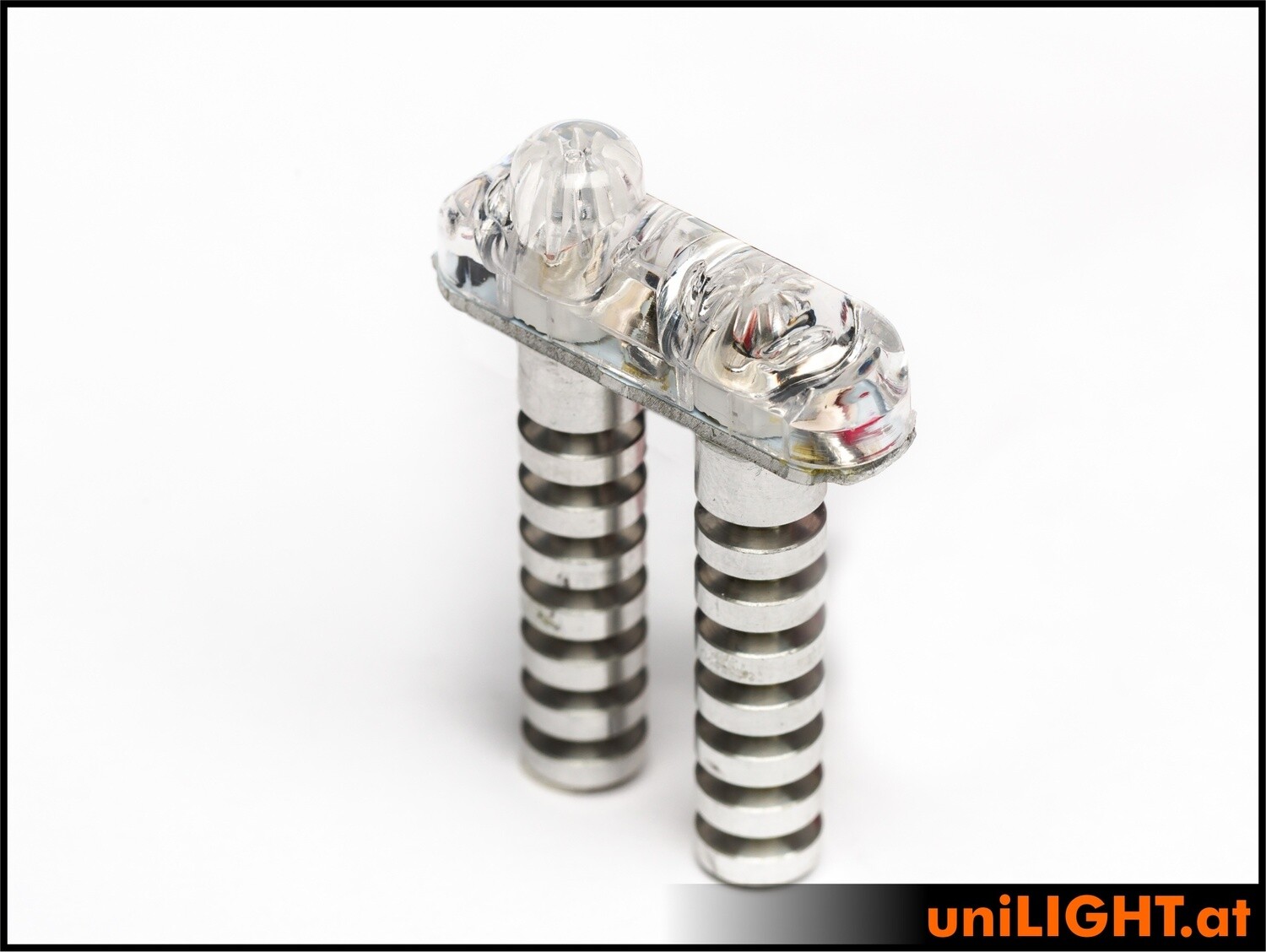

Powerful position/navigation light featuring x2 technology—double the light output with the same heat dissipation! The 8mm series profile light has a very slim exterior and looks great even on the smallest models. Thanks to x2 technology, however, it delivers tremendous light output, making it a real eye-catcher even on larger models. Amazingly compact dimensions with a uniquely slim design, plus a very special diffuser cap for optimal visibility.

The profiled polycarbonate cap is simply snapped on as delivered. It can be painted separately, is highly transparent, and shatter-resistant. Installing the light is surprisingly simple: For a simple surface mount, only two 7mm holes are required, allowing the light to be mounted even on small wing tips or fuselage ridges. If desired, the light can also be recessed by up to 3mm for an even more compact design. The cover must be glued in place after final assembly.

Technical Specifications:

• Electrical: 4Wx2 reference power, 8(12)V, 0.35A
• Beam angle: >160°
• Luminous intensity: 2x50 lumens RED
• Luminous intensity: 2x70 lumens GREEN
• Luminous intensity: 2x100 lumens WHITE
• Mounting pin dimensions: D7x29
• Light cap dimensions: 8x30x8 mm, retractable up to 3 mm without loss of beam angle
• Weight: 7g (without cable)

Includes 1m silicone cable and pre-assembled series resistor for 2S and resistor for 3S

Notes:

Reference power specifications are purely comparative values between the offered light sources. They typically refer to an operating voltage of 12V/3S LiPo and depend on the light source, operating mode, and technology.

Please note that high-power LEDs can get very hot; temperatures up to 70°C are quite normal. These lights with heat sink mounting are suitable for continuous operation if air convection is possible. Check the operating temperatures after installation. We cannot accept any liability for overheating.

Warning: The LED lights are extremely bright! Never look directly into an LED!
