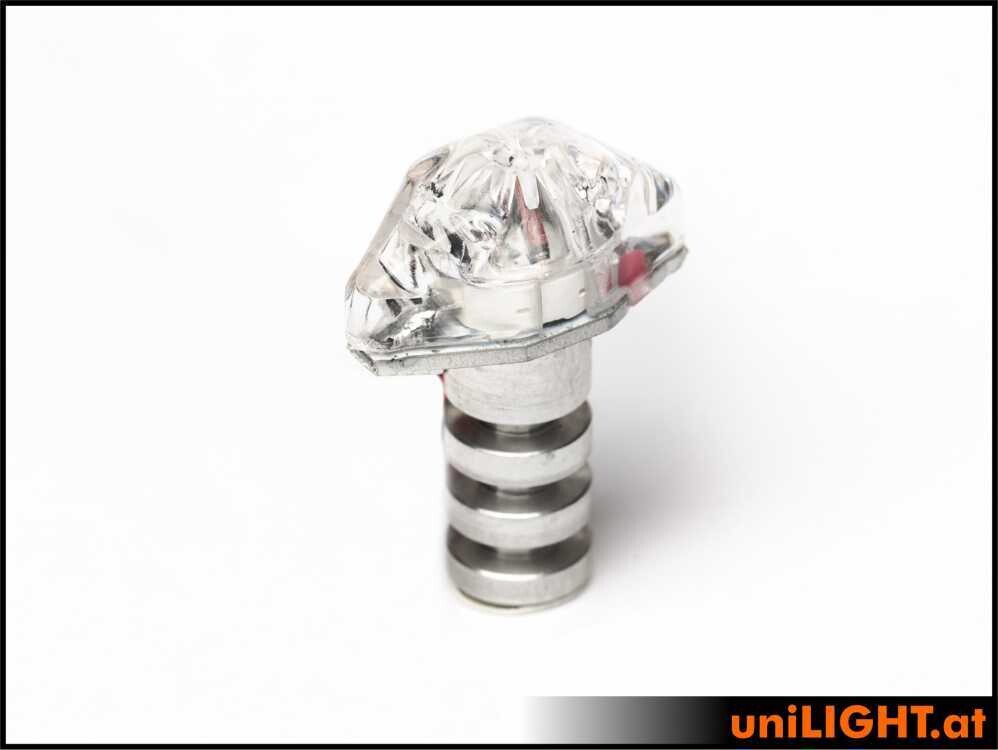

The compact version of the miniature navigation light with a 2W rated power, designed for small models with thin wings, air intakes, or ideally for Styrofoam models. The mini light is delivered as a fully assembled unit mounted on a CNC-machined aluminum heat sink and comes with an included polycarbonate cap as a cover. The cap is specially designed to diffuse the light for better visibility; it must be glued in place during installation.

Technical Specifications:

• Electrical: 2Wx2 reference power, 8(12)V, 0.16A
• Beam angle: >160°
• Luminous intensity: ~50 lumens RED
• Luminous intensity: ~70 lumens GREEN
• Luminous intensity: ~125 lumens WHITE
• Cap dimensions: 8x18x9
• Heat sink dimensions: D7x14
• Weight: 2.5g (without cable)

Includes 1m silicone cable and pre-assembled series resistor for 2S and resistor for 3S

Notes:

Reference performance data is purely a comparative value between the offered light sources. It typically refers to an operating voltage of 12V/3S LiPo and depends on the light source, operating mode, and technology.

Please note that high-power LEDs can get very hot; temperatures up to 70°C are quite normal. These lights with heat sink mounting are suitable for continuous operation if air convection is possible. Check the operating temperatures after installation. We cannot accept any liability for overheating.

Warning: The LED lights are extremely bright! Never look directly into an LED!
