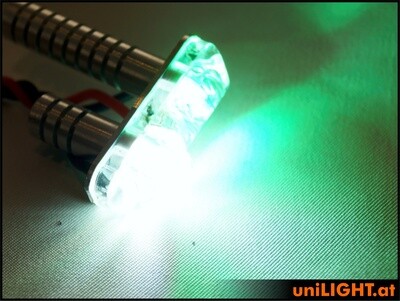

Powerful position and strobe lights in a compact housing. The 8mm Series profile light has a very slim exterior and looks great even on the smallest models. Thanks to high-performance LED emitters, it delivers high light output despite its compact dimensions. The special aluminum-core PCBs with CNC-machined heat sinks enable extremely small dimensions and a uniquely slim design.

The polycarbonate diffuser cap is simply snapped on as standard. It can be painted separately, is highly transparent, and shatter-resistant. Upon request, the light can also be recessed by up to 3 mm for an even smaller form factor. The cap must be glued in place after final assembly.

Technical Specifications:

• Electrical: 4W RED/GREEN and 4W WHITE reference power, 8(12)V, 2x0.35A
• Beam angle: >160°
• Luminous intensity: ~50 lumens RED

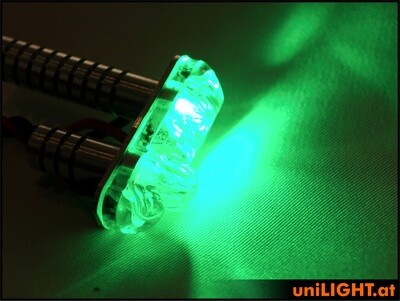

• Luminous intensity: ~70 lumens GREEN

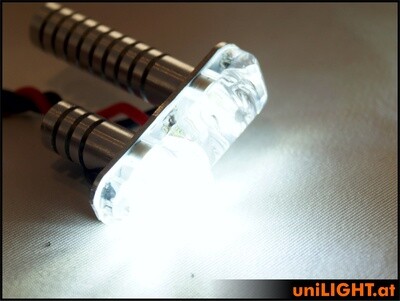

• Luminous intensity: ~200 lumens WHITE
• Mounting pin dimensions: D7x14mm and D7x29mm
• Light cap dimensions: 8x30x8mm, retractable up to 4mm without loss of beam angle
• Weight: 6g (without cable)

Includes 1m silicone cable and pre-assembled series resistor for 2S operation and resistor for 3S

Notes:

Reference power specifications are purely comparative values between the offered light sources. They typically refer to an operating voltage of 12V/3S LiPo and depend on the light source, operating mode, and technology.

Please note that high-power LEDs can get very hot; temperatures up to 70°C are quite normal. These lights with heat sink mounting are suitable for continuous operation if air convection is possible. Check the operating temperatures after installation. We cannot accept any liability for overheating.

Warning: The LED lights are extremely bright! Never look directly into an LED!
