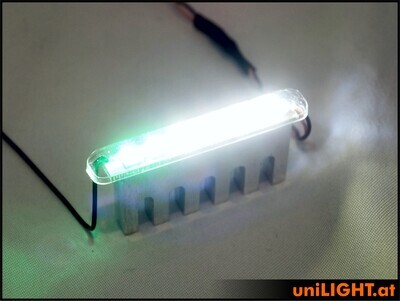

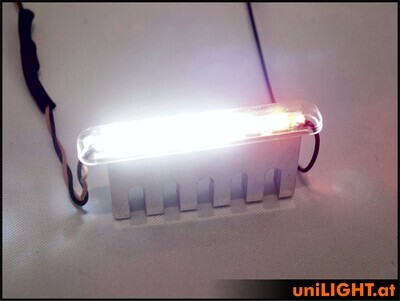

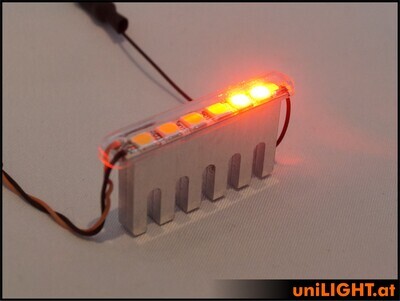

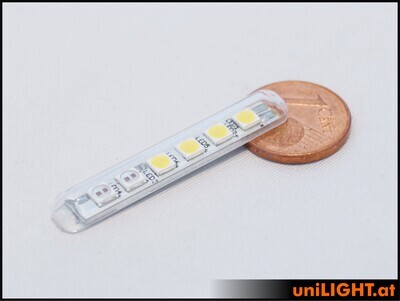

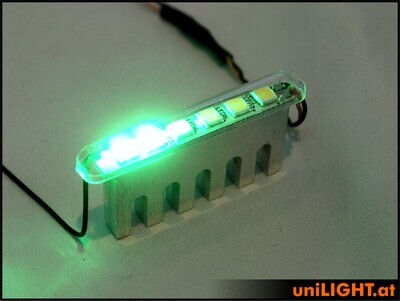

An extremely slim yet powerful miniature position and strobe light in a single housing. The 5mm light bar on the outside is very slim and looks great even on small models and thin wings, making it perfect for all sport models. Thanks to its innovative LED emitters, however, it delivers extreme light and strobe output despite its micro dimensions, making it well-suited for larger models as well. The innovative, inward-shifted cooling surface allows for surprisingly compact dimensions with a uniquely slim design.

Technical Specifications:

• Electrical: 2Wx2 RED/GREEN and 8Wx2 WHITE reference power, 8(12)V
• Beam angle: >160°
• Luminous intensity: ~80 lumens RED
• Luminous flux: ~140 lumens GREEN
• Luminous intensity: ~450 lumens WHITE
• Dimensions: 38x5x4mm
• Heat sink dimensions: 30x15x4 (use at least 2 heat sinks)
• Weight: 3g (without cable)

Included:

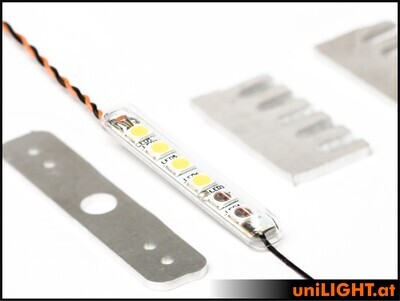

Includes 2x0.5m Teflon cable and pre-assembled series resistor for 2S; resistor for 3S included

Notes:

Specifications regarding reference power are purely comparative values between the offered light sources. They typically refer to an operating voltage of 12V/3S LiPo and depend on the light source, operating mode, and technology.

Please note that high-power LEDs can get very hot; temperatures up to 70°C are quite normal. These lights with heat sink mounting are suitable for continuous operation if air convection is possible. Check the operating temperatures after installation. We cannot accept any liability for overheating.

Warning: The LED lights are extremely bright! Never look directly into an LED!
