Folding headlights with a new generation of chips—easier than ever. A feature found on many real-world aircraft, now quick and easy to implement in your model. A tremendous enhancement for any aircraft, whether scale, as a brake flap, or simply for practical use! Now compatible with high-voltage servos for any system.

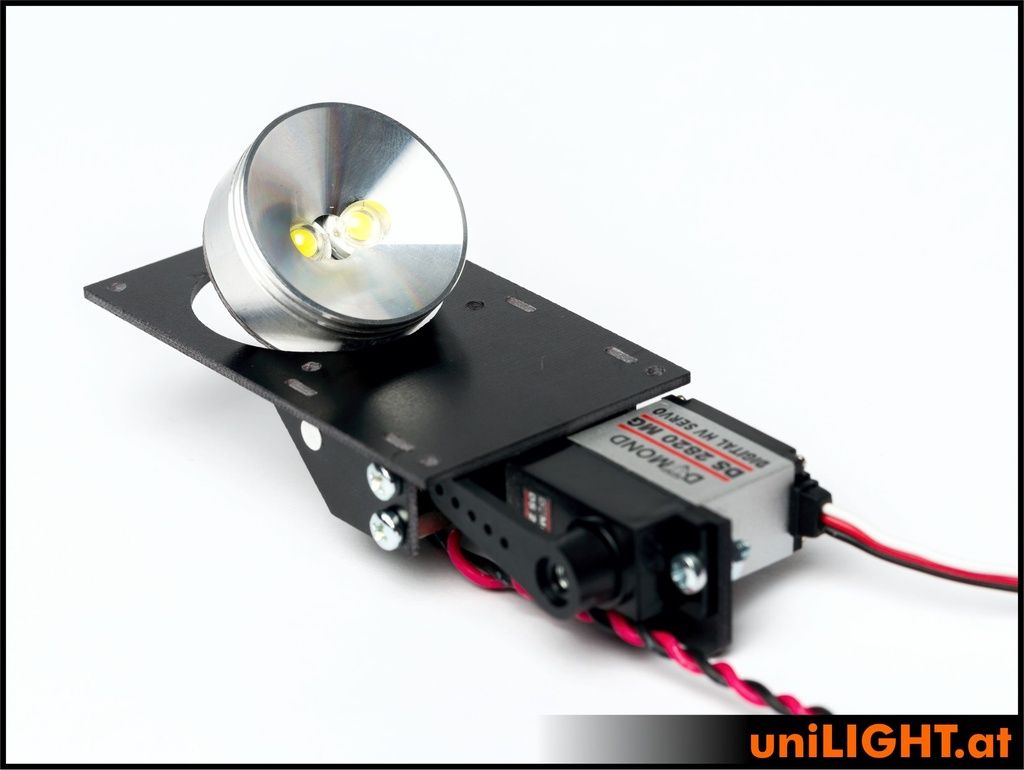

Our pre-assembled headlights use flat 30mm 10Wx2 headlights with thermal protection. These provide tremendous light output despite their small size. The mechanism incorporates a high-voltage servo (including metal gears); you simply need to determine the mounting position and screw on the linkage. The design allows for two different mounting positions of the rotation axis relative to the servo using the included parts: in front of the axis or, for fuselage installation, above the axis.

Power: 10Wx2 Rated power
Over-temperature protection: at 65-70°C, the light is safely shut off or pulsed
Voltage: 8V; use an additional resistor for 12V!
Current: 0.85A
Beam angle: ~110°
Luminous intensity: 620 lumens WHITE
Weight: 50g (with servo) Frame
dimensions: 91x35mm, height 14mm

Mounting BEHIND axis
dimensions: 97.5x40mm, height 18.5mm
or free-hanging: 62.5x40mm, Height 18.5mm

Front Axle Mount
Dimensions: 97.5x40mm, Height 18.5mm Over

Axle Mount
Dimensions: 69x40mm, Height 38mm

Overheating Protection: At 65-70°C, the light is safely shut off or pulsed

Pre-assembled with a 1m connection cable
