Compact miniature strobe light with a 24mm diameter!

This powerful 24mm-class strobe light delivers over 1,400 lumens of light output, yet its flat design allows it to be easily mounted on any surface. Suitable for use as an ACL, strobe, or beacon. Note that heat generation depends on the selected light pattern—due to the low aluminum content, only short patterns are possible on the ground, but this is no longer an issue in the air. The dimensions refer to the size of the cap.

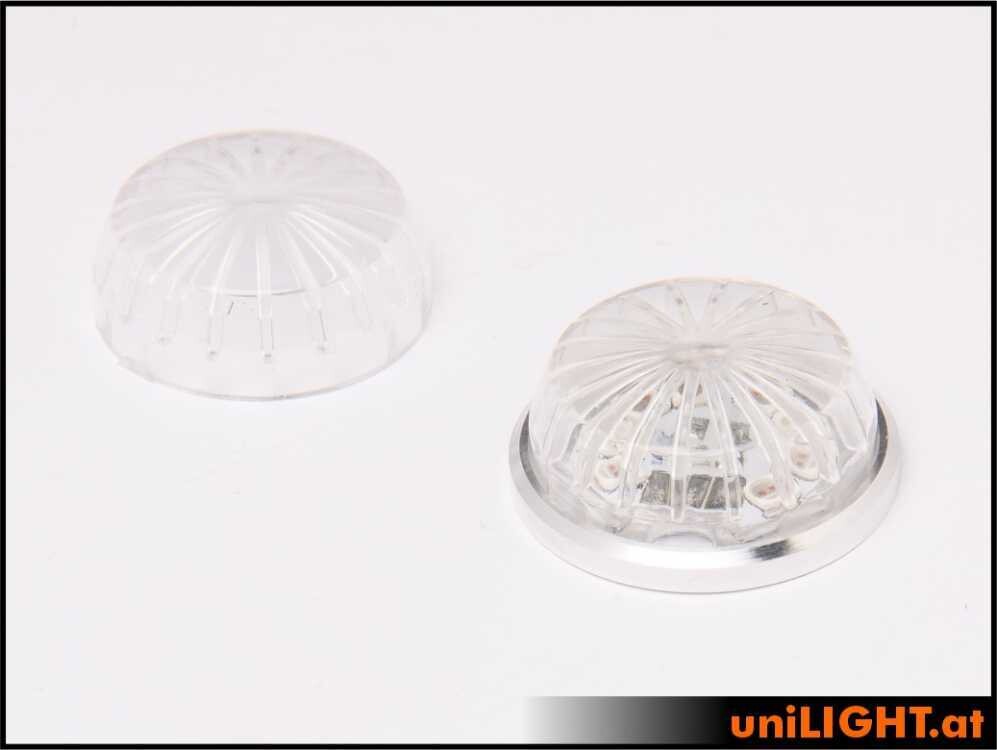

The new round lights come with a snap-on cylindrical cap made of highly transparent polycarbonate. Selection and installation are done on the model.

Technical Specifications:

• Electrical: 20W reference power with x2 technology, 8V/12V, 1.6A
• Beam angle: 360°
• Luminous intensity: ~500 lumens RED
• Luminous intensity: ~1440 lumens WHITE
• Luminous intensity: ~960 lumens GREEN
• Dimensions: 24x11mm cylinder
• Base plate: 27x3 mm
• Weight: 4g (without cable)

Delivery:

Includes 1m silicone connection cable, ready to connect to 8V/2S LiPo. Additional resistor for operation with 12V/3S LiPo.

Notes:

Reference performance data is purely a comparative value between the offered light sources. It typically refers to an operating voltage of 12V/3S LiPo and depends on the light source, operating mode, and technology.

Pay attention to the operating temperature; we cannot assume any liability for overheating.

Warning: The LED lights are extremely bright! Never look directly into an LED!
