New strobe light with maximum output

The popular 24mm series has been expanded to include a new strobe light with up to 2300 lumens. New chips and a new housing design enable maximum performance for the best strobe and ACL lights.

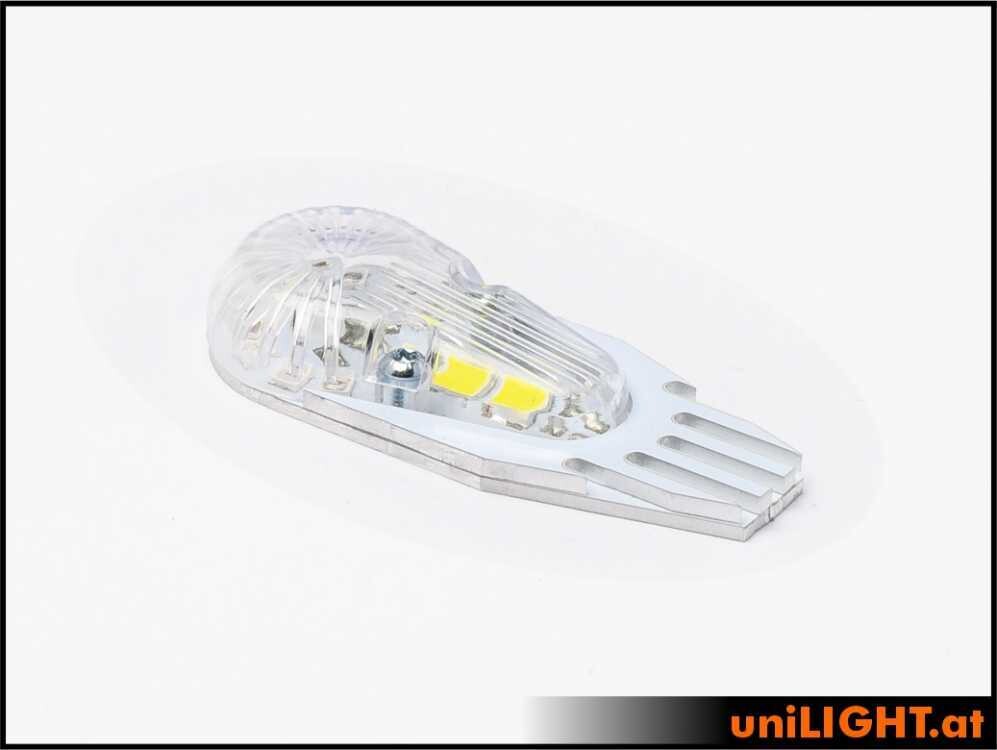

The light is delivered as a fully assembled unit on an aluminum heat sink. It is pre-wired for operation on 2S LiPo/Li-Ion (8V); for 3S (12V), the included resistor must be soldered into the cable. This extremely powerful light must only be operated as a strobe or flashing light. To protect the light, a thermal fuse is integrated on the back, which shuts off the lamp in case of overheating or briefly interrupts operation to allow it to cool down.

Technical Data:

• Electrical: 32W reference power with x2 technology, 8V/12V, 1.0A
• Over-temperature protection: at 65–70°C, the light is safely shut off or pulsed
• Beam angle: 140°
• Luminous intensity: ~800 lumens RED
• Luminous intensity: ~1500 lumens GREEN
• Luminous intensity: ~2300 lumens WHITE
• Dimensions: 24x56x9 mm
• Mounting plate thickness: 2 mm
• Internal temperature sensor protrusion: 2 mm
• Weight: 9g (without cable)

Included:

Includes a 1m connection cable and a pre-assembled series resistor for 2S and a resistor for 3S.
