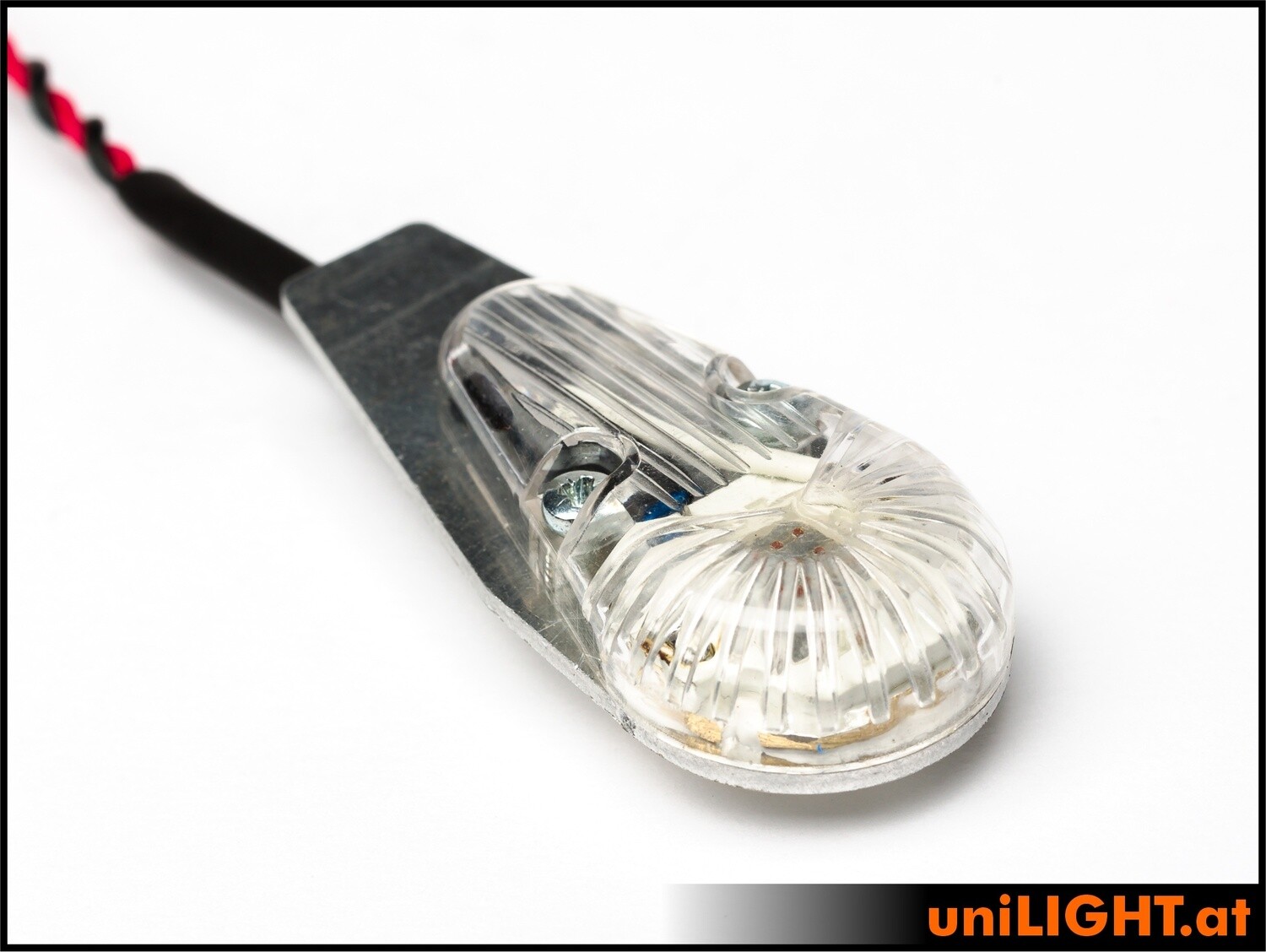

Power-Strobe light in the 24mm series with a new chip!

The popular 24mm series now features a new strobe light with up to 1700 lumens. The housing has been equipped with the chips from the rotating beacon, thereby replacing the PRO24F-200x2. Massive light output in a compact design with integrated thermal protection. They come with a screw-on 24mm profile cap made of highly transparent polycarbonate. The faceted cap provides perfect light distribution across the entire horizon; without the cap, installation is very easy in fuselage openings and pre-cut recesses.

The light is delivered as a fully assembled unit on an aluminum heat sink. It is pre-configured for operation on 2S LiPo/Li-Ion (8V); for 3S (12V), the included resistor must be soldered into the cable. This extremely powerful light must only be operated as a strobe or flashing light. To protect the light, a thermal fuse is integrated on the back, which shuts off the lamp in case of overheating or briefly interrupts it to allow for cooling

Technical Specifications:

• Electrical: 24W reference power with x2 technology, 8V/12V, 2.0A
• Over-temperature protection: at 65–70°C, the light is safely shut off or pulsed
• Beam angle: 140°
• Luminous intensity: ~550 lumens RED
• Luminous intensity: ~800 lumens GREEN
• Luminous intensity: ~1700 lumens WHITE
• Dimensions: 24x56x9 mm
• Mounting plate thickness: 2 mm
• Internal temperature sensor protrusion: 2 mm
• Weight: 9g (without cable)

Included:

Includes a 1m connection cable and a pre-assembled series resistor for 2S and a resistor for 3S
