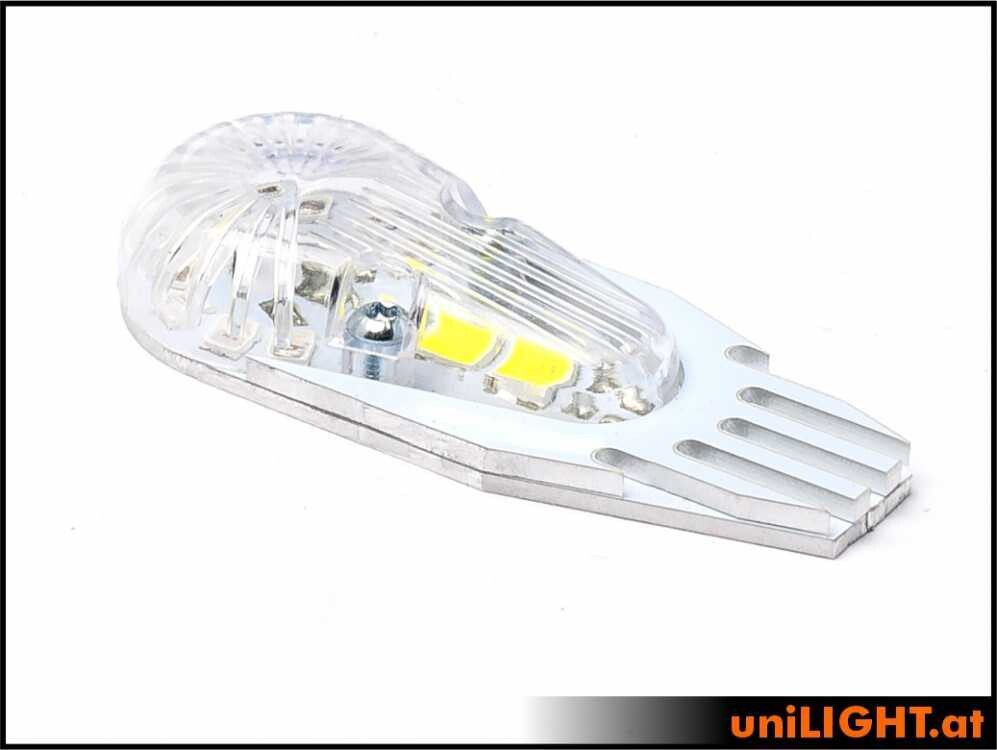

High-performance combined position and strobe light in a 24mm design. The light fits larger models with a wingspan of approximately 2.5 m and includes a position light and a strobe light using x2 technology. Both lights are controlled individually; the unit therefore has three wires and a common positive terminal. The integrated thermal fuse continuously monitors operation and shuts off the light in case of overload, then turns it back on after cooling. The teardrop-shaped polycarbonate cap is screwed on and can also be painted separately; it is highly transparent and shatterproof. The included additional heat sink must be glued to the inside or outside of the lamp. Technical data:

• Electrical: 16W rated power, 8(12)V, 1.35A and 8W rated power, 8(12)V, 0.6A
• Overtemperature protection: at 65–70°C, the light is safely shut off or pulsed
• Beam angle: > 160°
• Luminous intensity: ~190 lumens RED
• Luminous intensity: ~360 lumens GREEN
• Luminous intensity: ~1200 lumens WHITE
• Dimensions: 24x59x9 mm
• Mounting plate thickness: 2 mm
• Weight: 9g (without cable)

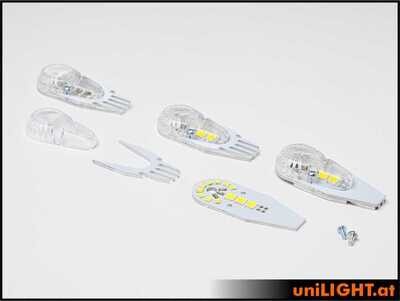

Included:

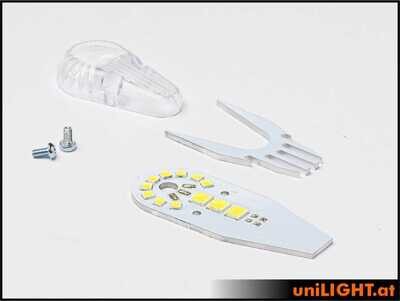

Includes a 1m connection cable and a pre-assembled series resistor for 2S and a resistor for 3S. Additional heat sink that must be attached to the inside or outside of the heat sink, depending on the installation position.
