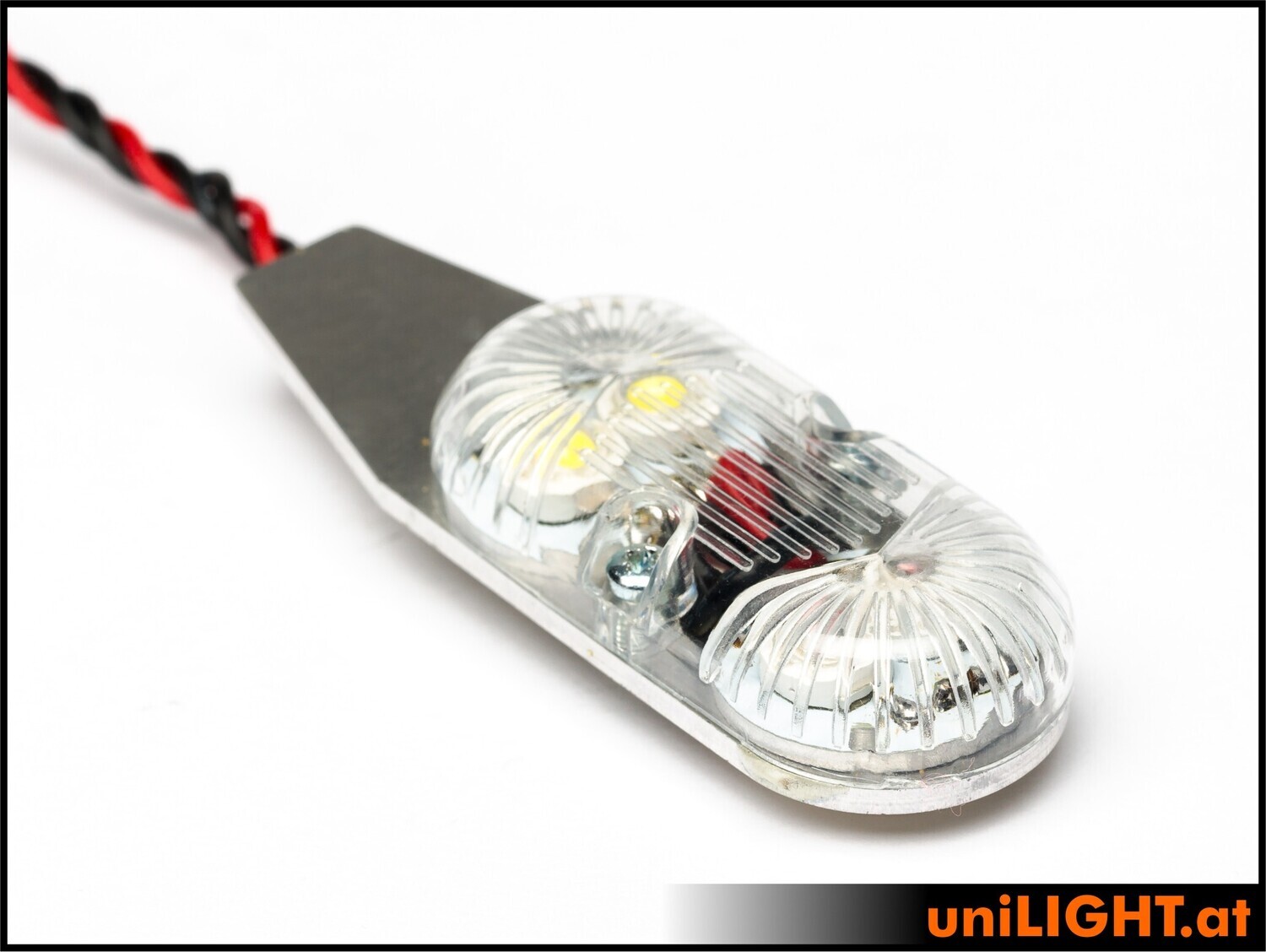

A white 8Wx2 strobe light and a 4Wx2 position light combined in a single housing with integrated cooling fins. Both lights are controlled individually and are therefore ideal for combined use as a position and strobe light. The integrated over-temperature protection shuts down the system in case of overheating.

The light is supplied as a fully assembled unit on an aluminum heat sink with a removable polycarbonate cover. It is pre-wired for operation on a 2S LiPo (approx. 8V). When operating with 3S (12V), the included resistor must be used; alternatively, you can also use a 4W-3S or 8W-3S adapter cable.

Technical Specifications:

• Electrical: 8W reference power, 8(12)V, 0.7A and 4W reference power, 8(12)V, 0.35A
• Over-temperature protection: at 65–70°C, the light is safely shut off or pulsed
• Beam angle: > 160°
• Luminous intensity: ~2x50 lumens RED
• Luminous intensity: ~2x70 lumens GREEN
• Luminous intensity: ~2x200 lumens WHITE
• Dimensions: 24x75x9 mm
• Mounting plate thickness: 2 mm
• Weight: 15g (without cable)

Included:

Includes a 1m connection cable and pre-assembled series resistor for 2S and resistor for 3S

Notes:

Reference power specifications are purely comparative values between the offered light sources. They typically refer to an operating voltage of 12V/3S LiPo and depend on the light source, operating mode, and technology.

Please note that high-power LEDs can get very hot; temperatures up to 70°C are quite normal. These lights with heat sink mounting are suitable for continuous operation if air convection is possible. Check the operating temperatures after installation. We cannot accept any liability for overheating.

Warning: The LED lights are extremely bright! Never look directly into an LED!
