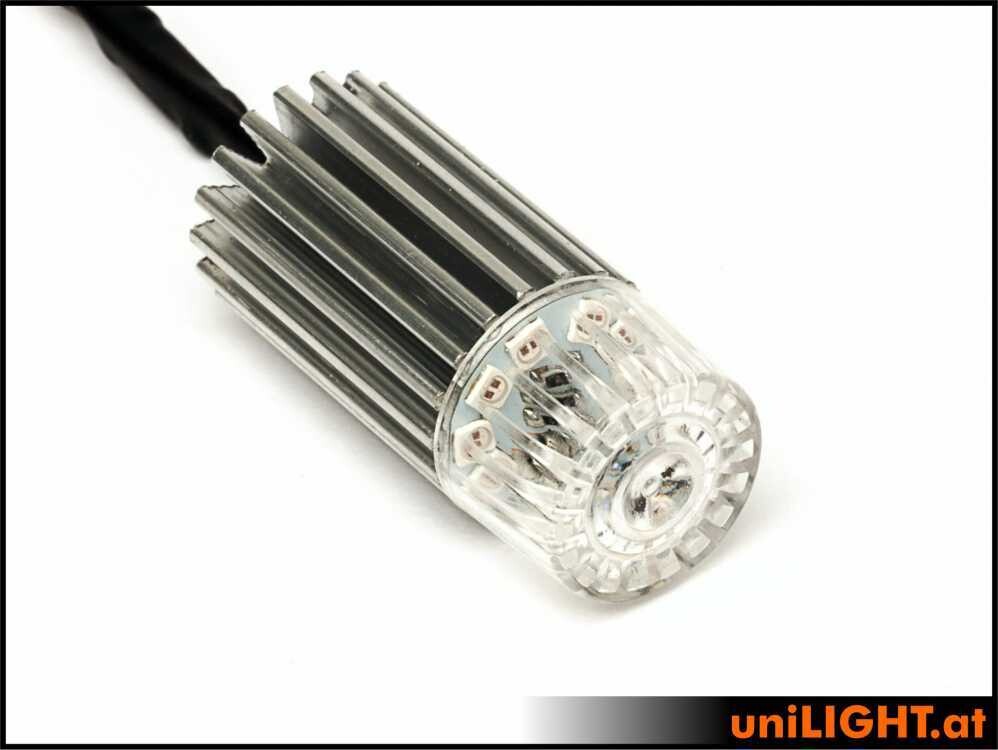

High-power navigation light with a 19mm diameter! The

multi-chip design delivers exceptional light output in a compact package with minimal heat dissipation. Best light output in this size class with integrated thermal fuse.

The new round lights come with a snap-on 19mm cap made of highly transparent polycarbonate. With the faceted cap, light is perfectly distributed across the entire horizon; without the cap, installation is very easy in edge arches and pre-fabricated cutouts.

Technical Data:

• Electrical: 8W reference power with x2 technology, 8V/12V, 0.65A
• Beam angle: 180°
• Luminous intensity: ~220 lumens RED
• Luminous intensity: ~320 lumens GREEN
• Luminous intensity: ~550 lumens WHITE
• Dimensions: D19x42mm
• Weight: 12g (without cable)

Delivery:

Includes a 1m silicone connection cable, ready to connect to an 8V/2S LiPo. Pre-assembled with a high-quality polycarbonate cap, includes a shunt resistor for operation with a 12V/3S LiPo.

Notes:

Specifications regarding reference performance are purely comparative values between the offered lights. They typically refer to an operating voltage of 12V/3S LiPo and depend on the light source, operating mode, and technology.

Please note that high-power LEDs can get very hot; temperatures up to 70°C are quite normal. These lights with heat sink mounting are suitable for continuous operation if air convection is possible. Check the operating temperatures after installation. We cannot assume any liability for overheating.

Warning: The LED lights are extremely bright! Never look directly into an LED!
